TECH PUBLICDatasheet (PDF)

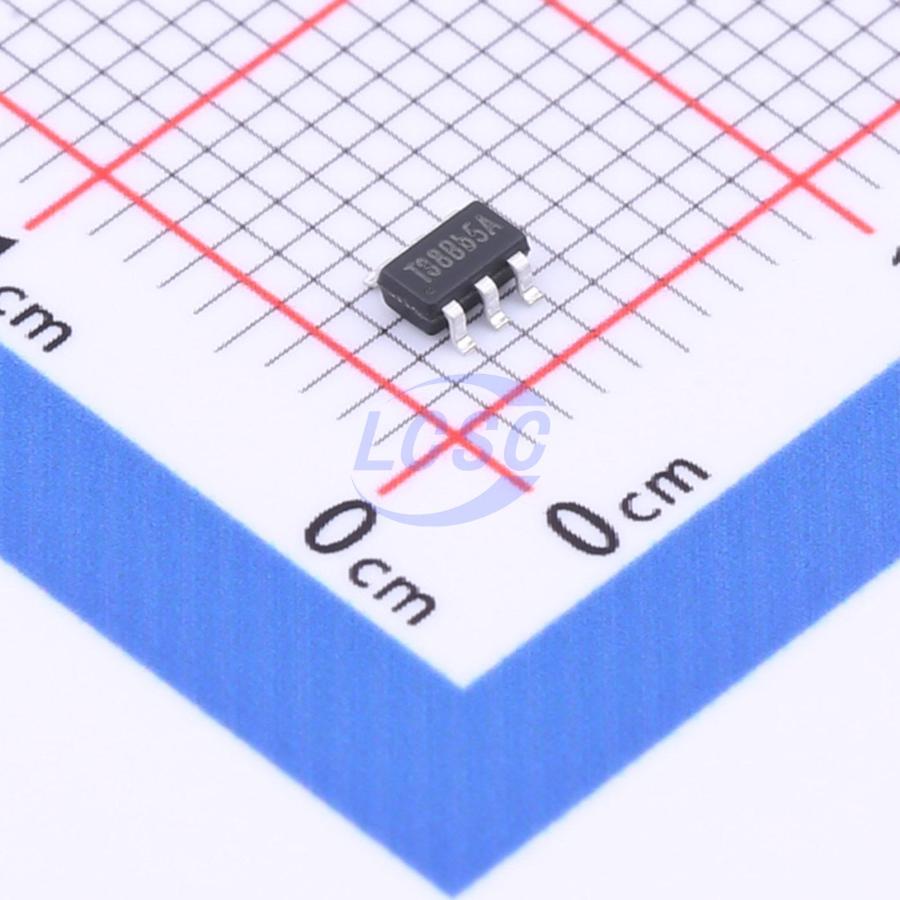

TP6327GS6
Step-down type 600kHz Adjustable 2.5A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
18V 3A 600kHz Synchronous Step-Down Converter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP6327GS6
- Store part #
- C2844925
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2844925
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.63 | ₹268.15 |
| 50+ | ₹40.99 | ₹2,049.50 |
| 150+ | ₹35.54 | ₹5,331.00 |
| 500+ | ₹28.79 | ₹14,395.00 |
| 3,000+ | ₹25.73 | ₹77,190.00 |
| 6,000+ | ₹23.99 | ₹1,43,940.00 |
5 × ₹53.63
₹268.15
excl. GST
₹316.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP6327GS6
₹268.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 600kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2.5A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The TP6327GS6 is a fully integrated, high efficiency peak 3.0A synchronous rectified step-down converter. The TP6327GS6 operates at high efficiency over a wide output current load range. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. The TP6327GS6 requires a minimum number of readily available standard external components and is available in a SOT23 - 6 package.
Applications
- Distributed Power Systems
- Digital Set Top Boxes
- Flat Panel Television and Monitors
- Notebook computer
- Wireless and DSL Modems
Key features
- High Efficiency: Up to 95%@5V
- 600kHz Frequency Operation
- 3.0A Peak Output Current
- 2.5A Continuous Current
- No Schottky Diode Required
- 3.5V to 18V Input Voltage Range
- 0.765V Reference
- Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
- Integrated internal compensation
- Stable with Low ESR Ceramic Output Capacitors
- Over Current Protection with Hiccup - Mode
- Input overvoltage protection (OvP)
- Thermal Shutdown
- Inrush Current Limit and Soft Start
- Available in SOT23 - 6 Package
