TECH PUBLIC

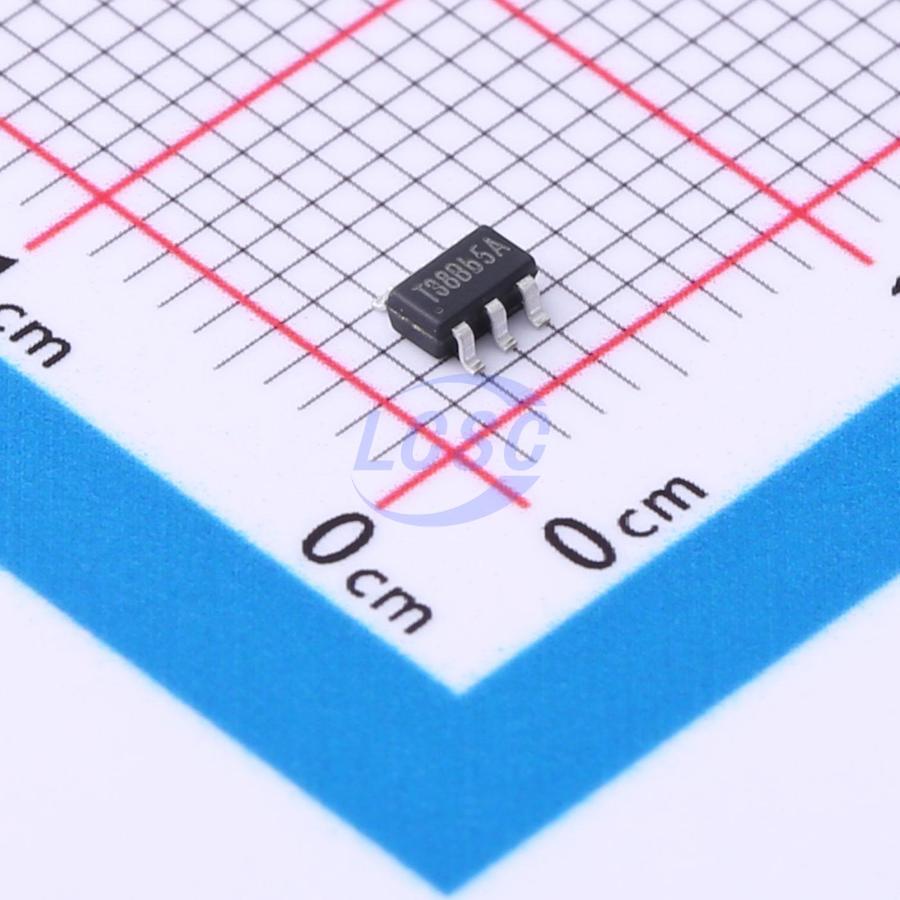

TP6327GS6-A

Step-down type 600kHz Adjustable 2.5A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

18V 3A 600kHz Synchronous Step-Down Converter

Manufacturer: TECH PUBLIC
Manufacturer part #: TP6327GS6-A
Store part #: C2901328
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,175 in stock

#C2901328

Stock & price checked 26 h ago

Quantity	Unit price	Pack price
5+	₹47.88	₹239.40
50+	₹38.06	₹1,903.00
150+	₹33.87	₹5,080.50
500+	₹28.62	₹14,310.00
3,000+	₹24.08	₹72,240.00
6,000+	₹22.68	₹1,36,080.00

Quantity (min 5, multiples of 5)

5 × ₹47.88

₹239.40

excl. GST

₹282.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP6327GS6-A

₹239.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Function: Step-down type
Frequency - Switching: 600kHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.5V~18V
Switch tube (built-in/external): Built-in
Output Current: 2.5A
Quiescent Current: 600uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

The TP6327GS6-A is a fully integrated, high efficiency peak 3.0A synchronous rectified step down converter. The TP6327GS6-A operates at high efficiency over a wide output current load range. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. The TP6327GS6-A requires a minimum number of readily available standard external components and is available in a SOT23-6 package.

Applications

Distributed Power Systems
Digital Set Top Boxes
Flat Panel Television and Monitors
Notebook computer
Wireless and DSL Modems

Key features

High Efficiency: Up to 95%@5V
600kHz Frequency Operation
3.0A Peak Output Current
2.5A Continuous Current
No Schottky Diode Required
3.5V to 18V Input Voltage Range
0.765V Reference
Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
Integrated internal compensation
Stable with Low ESR Ceramic Output Capacitors
Over Current Protection with Hiccup-Mode
Input overvoltage protection (OvP)
Thermal Shutdown
Inrush Current Limit and Soft Start
Available in SOT23-6 Package
