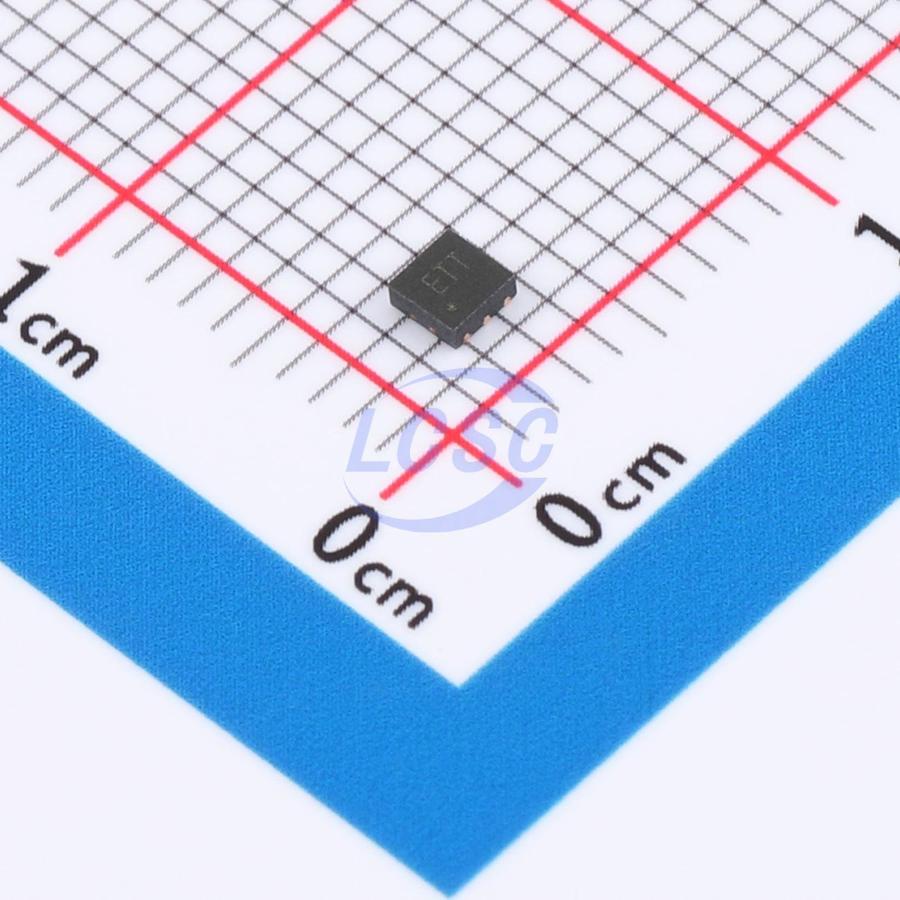

TP6815ND6
Step-down type Adjustable 1.5A DFN-6(2x2) Voltage Regulators - DC DC Switching Regulators
DFN-6(2x2)RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP6815ND6
- Store part #
- C50314341
- Package / case
- DFN-6(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,750 in stock
#C50314341
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.06 | ₹95.30 |
| 50+ | ₹14.99 | ₹749.50 |
| 150+ | ₹12.95 | ₹1,942.50 |
| 500+ | ₹11.43 | ₹5,715.00 |
| 2,500+ | ₹10.20 | ₹25,500.00 |
| 4,000+ | ₹9.59 | ₹38,360.00 |
5 × ₹19.06
₹95.30
excl. GST
₹112.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TP6815ND6
₹95.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz;300kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.3V~6V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Quiescent Current
- 25uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Applications
- Network equipment
- IP cameras
- LCD TVs
- DSL modems
- Access point routers
- Digital TVs
- Set-top boxes
Key features
- Supply voltage range: 2.3V ~ 6.0V
- Guaranteed 1.5A continuous load current
- 0.6V reference voltage, 2% accuracy
- Cycle-by-cycle peak current limiting
- Pulse frequency modulation mode at light load for high efficiency
- 100% duty cycle operation under dropout conditions
- Low internal switch (high-side/low-side) on-resistance: 300/300 mΩ
- Fixed 1.2MHz switching frequency
- Up to 96% efficiency
- Current mode control with slope compensation for excellent line and load transient response
- Shutdown current less than 1μA
- RoHS and halogen-free compliant
- Compact package: DFN-6(2X2)
