TECH PUBLICDatasheet (PDF)

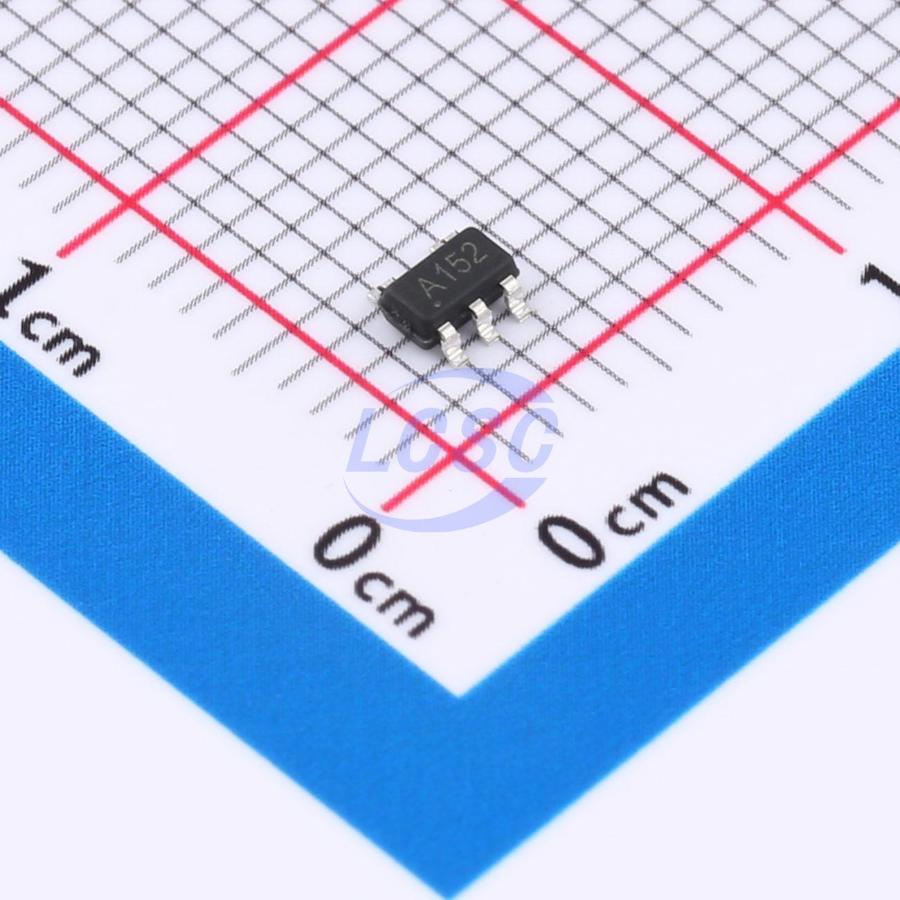

TP6815S5
Step-down type 1.5MHz Adjustable 1.5A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
1.5A 1.5MHz Synchronous Buck Converter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP6815S5
- Store part #
- C47117586
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C47117586
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.93 | ₹64.65 |
| 50+ | ₹10.21 | ₹510.50 |
| 150+ | ₹8.86 | ₹1,329.00 |
| 500+ | ₹7.85 | ₹3,925.00 |
| 3,000+ | ₹7.04 | ₹21,120.00 |
| 6,000+ | ₹6.63 | ₹39,780.00 |
5 × ₹12.93
₹64.65
excl. GST
₹76.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP6815S5
₹64.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Step-down type
- Frequency - Switching
- 1.5MHz
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection;Cable compensation
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~6V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The TP6815S5 is a high - efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in an adjustable version. Supply current with no load is 40uA and drops to <1uA in shutdown. The 2.5V to 6V input voltage range makes the TP6815S5 ideally suited for single Li - lon battery powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. PVWM/PFM mode operation provides very low output ripple voltage for noise sensitive applications.
Applications
- Cellular and Smart Phones
- Wireless and DSL Modems
- PDAs
- Portable Instruments
- Digital Still and Video Cameras
- PC Cards
Key features
- High Efficiency: Up to 96%
- 2.5V to 6V Input Voltage Range
- 1.5MHz Constant Frequency Operation
- No Schottky Diode Required
- Low Dropout Operation: 100% Duty Cycle
- PFM Mode for High Efficiency in Light Load
- Over temperature Protected
- Low Quiescent Current: 40μA
- Short Circuit Protection
- Inrush Current Limit and Soft Start
- Available in SOT23 - 5
