TECH PUBLICDatasheet (PDF)

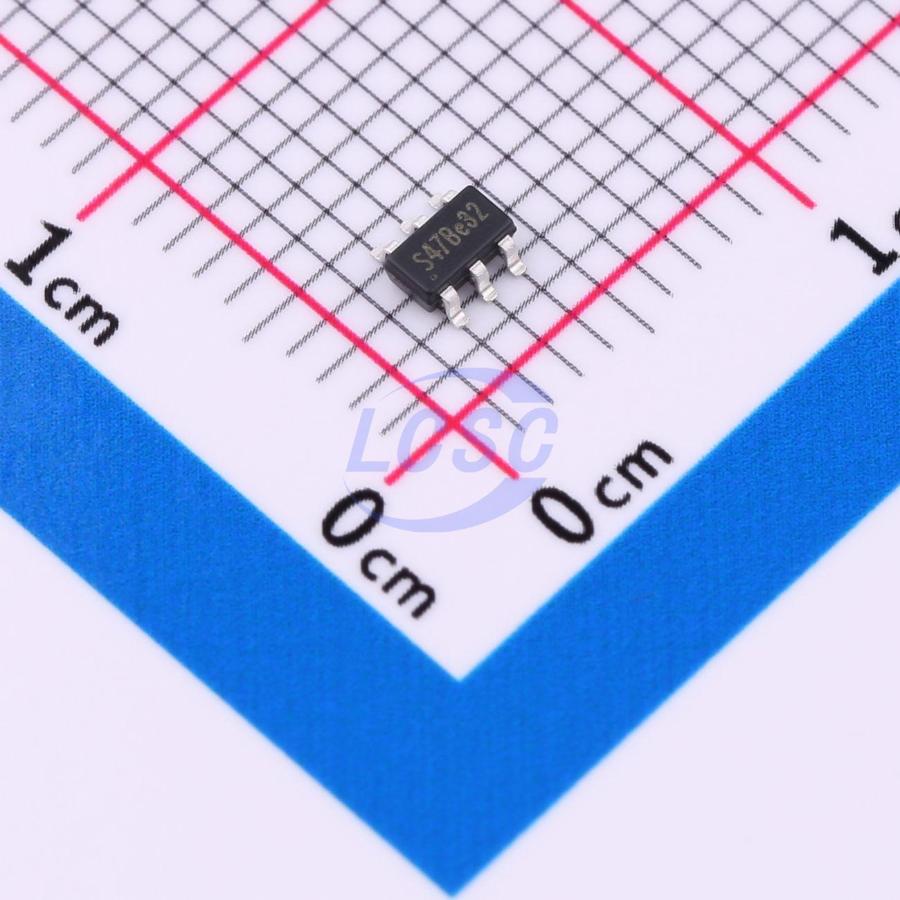

TP6824S6
Buck Switching Regulator IC Adjustable 1 Output 2A SOT-23-6
SOT-23-6RoHSActive
600KHz 18V 2.0A Synchronous Step-Down Converter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP6824S6
- Store part #
- C22435125
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,470 in stock
#C22435125
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.84 | ₹79.20 |
| 50+ | ₹13.79 | ₹689.50 |
| 150+ | ₹12.90 | ₹1,935.00 |
| 500+ | ₹11.80 | ₹5,900.00 |
| 3,000+ | ₹11.31 | ₹33,930.00 |
| 6,000+ | ₹11.02 | ₹66,120.00 |
5 × ₹15.84
₹79.20
excl. GST
₹93.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP6824S6
₹79.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 600kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This product features a wide input voltage range of 3.5V - 18V, minimizing the need for external surge suppression components, making it ideal for wide input range industrial applications and multi-cell battery pack applications. It integrates a power MOSFET and employs a peak current sensing mode architecture with internal compensation, delivering a rated maximum output current capability of 2.0A along with excellent load and input transient response. The pin configuration (top view) is SOT23-6.
Applications
- Laptop computers
- Digital set-top boxes
- Wireless and DSL modems
- Distributed power systems
- Flat panel TVs and monitors
Key features
- 2.0A output current
- 0.6V reference voltage
- High efficiency: up to 95%
- No Schottky diode required
- 600KHz switching frequency
- Overcurrent protection with hiccup mode
- 3.5V to 18V input voltage range
- Integrated internal compensation
- Input overvoltage protection (OVP)
- Inrush current limiting and soft-start
- Stable with low-ESR ceramic output capacitors
