TECH PUBLIC

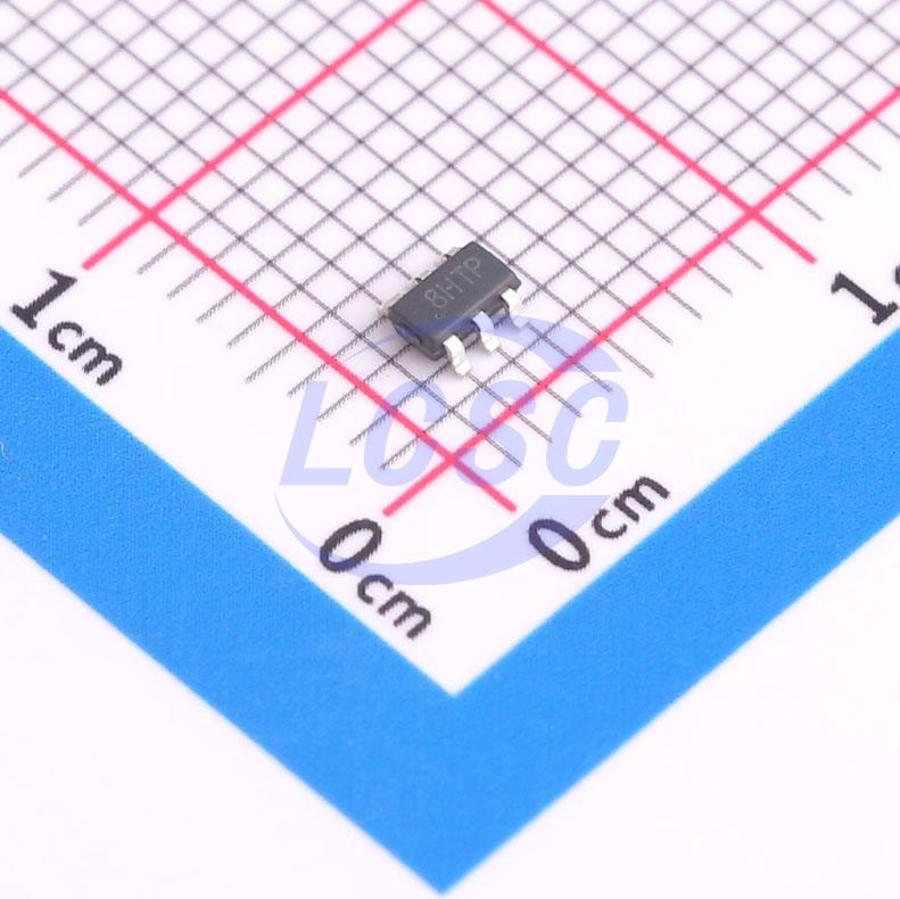

TP6841S6

Step-down type 800kHz Adjustable 800mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

40V 0.8A 800kHz Synchronous Step-Down Converter

Manufacturer: TECH PUBLIC
Manufacturer part #: TP6841S6
Store part #: C2844736
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,601 in stock

#C2844736

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹72.21	₹72.21
10+	₹55.95	₹559.50
30+	₹48.79	₹1,463.70
100+	₹40.11	₹4,011.00
500+	₹36.21	₹18,105.00
1,000+	₹33.83	₹33,830.00

Quantity (min 1)

1 × ₹72.21

₹72.21

excl. GST

₹85.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP6841S6

₹72.21 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃
Function: Step-down type
Frequency - Switching: 800kHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~40V
Switch tube (built-in/external): Built-in
Output Current: 800mA
Quiescent Current: 40uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.023 g

Overview

TP6841S6 is a current mode monolithic buck switching regulator. Operating with an input range of 4.5V~40V, the TP6841S6 delivers 800mA of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, the regulator operates in low frequency to maintain high efficiency and low output ripple. Current mode control provides tight load transient response and cycle-by-cycle current limit. The TP6841S6 guarantees robustness with short-circuit protection, thermal protection, current run-away protection, and input undervoltage lockout. The TP6841S6 is available in 6-pin SOT23-6L package, which provides a compact solution with minimal external components.
