TECH PUBLICDatasheet (PDF)

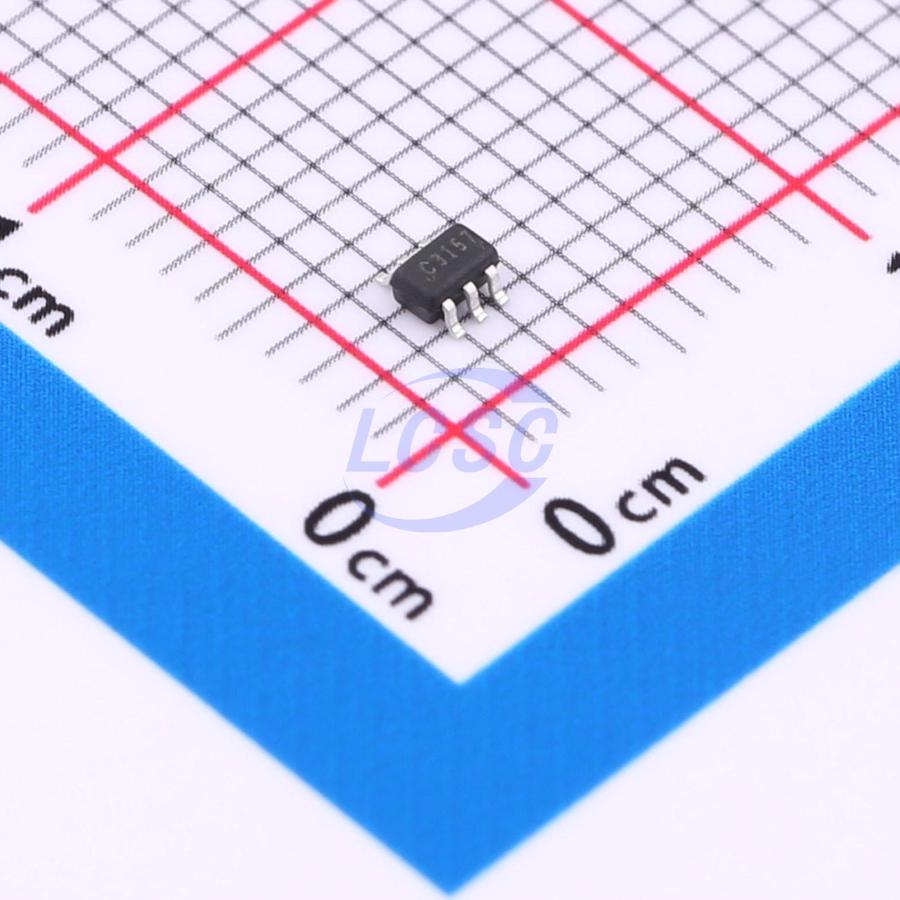

TP74LVC1G3157C6
6Ω 1.65V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers
SOT-363RoHSActive
SINGLE-POLE, DOUBLE-THROW ANALOG SWITCH
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G3157C6
- Store part #
- C46472250
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,410 in stock
#C46472250
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.80 | ₹88.00 |
| 100+ | ₹6.89 | ₹689.00 |
| 300+ | ₹5.94 | ₹1,782.00 |
| 3,000+ | ₹5.23 | ₹15,690.00 |
| 6,000+ | ₹4.66 | ₹27,960.00 |
| 9,000+ | ₹4.37 | ₹39,330.00 |
10 × ₹8.80
₹88.00
excl. GST
₹103.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LVC1G3157C6
₹88.00 for 10 + GST
Specifications
- Features
- Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Ron
- 6Ω
- Voltage - Supply
- 1.65V~5.5V
- Con
- 7pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
A low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.
Applications
- Cell phones and TWS headset
- Audio, Video, UART, USB2.0 Signal and Supply Routing
Key features
- Low On-resistance, Rₒₙ = 6Ω when A = 5V
- 1.8V Logic Compatible
- Control Pin A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
- High Off-isolation: -100dB @ 100KHz
- Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
- High Bandwidth (-3dB @ 340MHz)
- Suitable For USB2.0 High-Speed Routing
- Low Quiescent Current (< 2μA)
- With Very Wide Supply Range (1.65V ~ 5.5V)
