TECH PUBLICDatasheet (PDF)

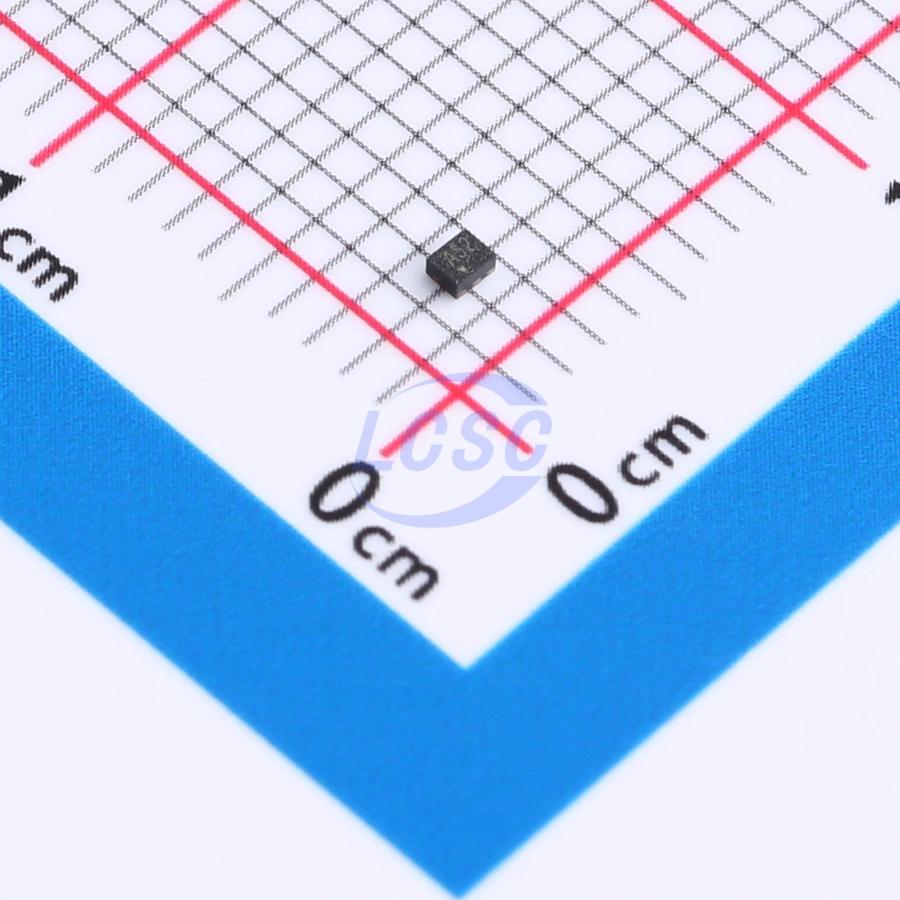

TP74LVC1G3157D6
1.5Ω 1.5V~5.5V 1 DFN-6(0.9x1.1) Analog Switches, Multiplexers, Demultiplexers
DFN-6(0.9x1.1)RoHSActive
SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G3157D6
- Store part #
- C42437003
- Package / case
- DFN-6(0.9x1.1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,730 in stock
#C42437003
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.92 | ₹84.60 |
| 50+ | ₹13.31 | ₹665.50 |
| 150+ | ₹11.50 | ₹1,725.00 |
| 500+ | ₹10.15 | ₹5,075.00 |
| 2,500+ | ₹9.06 | ₹22,650.00 |
| 5,000+ | ₹8.52 | ₹42,600.00 |
5 × ₹16.92
₹84.60
excl. GST
₹99.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TP74LVC1G3157D6
₹84.60 for 5 + GST
Specifications
- Features
- Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Ron
- 1.5Ω
- Voltage - Supply
- 1.5V~5.5V
- Number of Channels
- 1
- Con
- 7pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Overview
The is a low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.
Applications
- Cell phones and TWS headset
- Audio, Video, UART, USB2.0 Signal and Supply Routing
Key features
- Low On-resistance, R0n = 1.5Ω when A = 5V
- 1.8V Logic Compatible Control Pin
- A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
- High Off-Isolation: -100dB @ 100KHz
- Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
- High Bandwidth (-3dB @700MHz)
- Suitable For USB2.0 High-Speed Routing
- Low Quiescent Current (< 2uA)
- With Very Wide Supply Range (1.5V ~ 5.5V)
