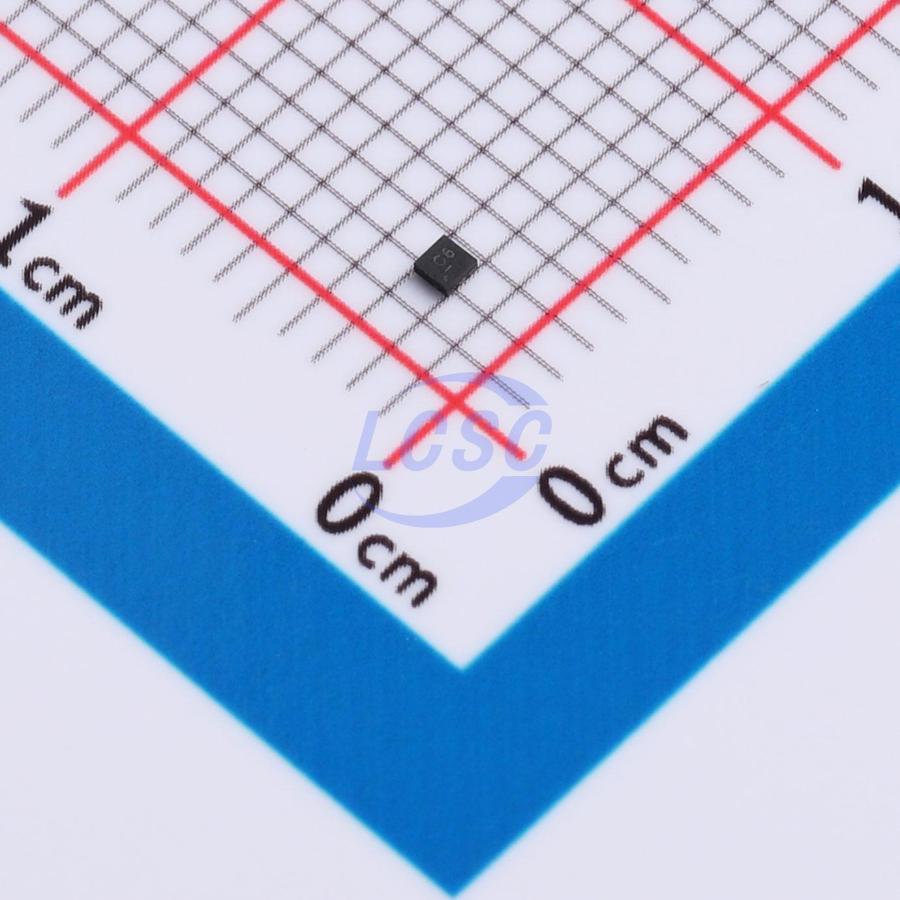

TECH PUBLICDatasheet (PDF)
TP74LVC1G66D6
1 185Ω@1.65V 1.65V~5.5V DFN-6(1x1) Analog Switches, Multiplexers, Demultiplexers RoHS
DFN-6(1x1)ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G66D6
- Store part #
- C49333204
- Package / case
- DFN-6(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,010 in stock
#C49333204
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.14 | ₹80.70 |
| 50+ | ₹12.75 | ₹637.50 |
| 150+ | ₹11.07 | ₹1,660.50 |
| 500+ | ₹9.80 | ₹4,900.00 |
| 2,500+ | ₹8.78 | ₹21,950.00 |
| 5,000+ | ₹8.28 | ₹41,400.00 |
5 × ₹16.14
₹80.70
excl. GST
₹95.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TP74LVC1G66D6
₹80.70 for 5 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+125℃
- Number of Channels
- 1
- Ron
- 185Ω@1.65V
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 3ns
- Con
- 13pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
The 74LVC1G66 is a high-speed CMOS device. It features two data input/output pins (A and B) and an active-high enable input pin (C). The 74LVC1G66 can handle both analog and digital signals. When the enable pin is high, signals can be transmitted bidirectionally. When the enable pin is low, the analog switch is turned off.
Applications
- Wireless devices
- Audio and video signal routing
- Portable computing devices
- Wearable devices
- Signal gating, chopping, modulation or demodulation
- Signal multiplexing for ADC and DAC systems
Key features
- Operating voltage range: 1.65~5.5V
- Input accepts voltages up to 5.5V
- Maximum propagation delay of 0.8 ns at 3.3V
- High linearity
- ESD protection exceeds JESD 22 standard: Human Body Model 2000V (A114-A), Machine Model 200V (A115-A), Charged Device Model 1000V (C101)
