TOP POWER ASICDatasheet (PDF)

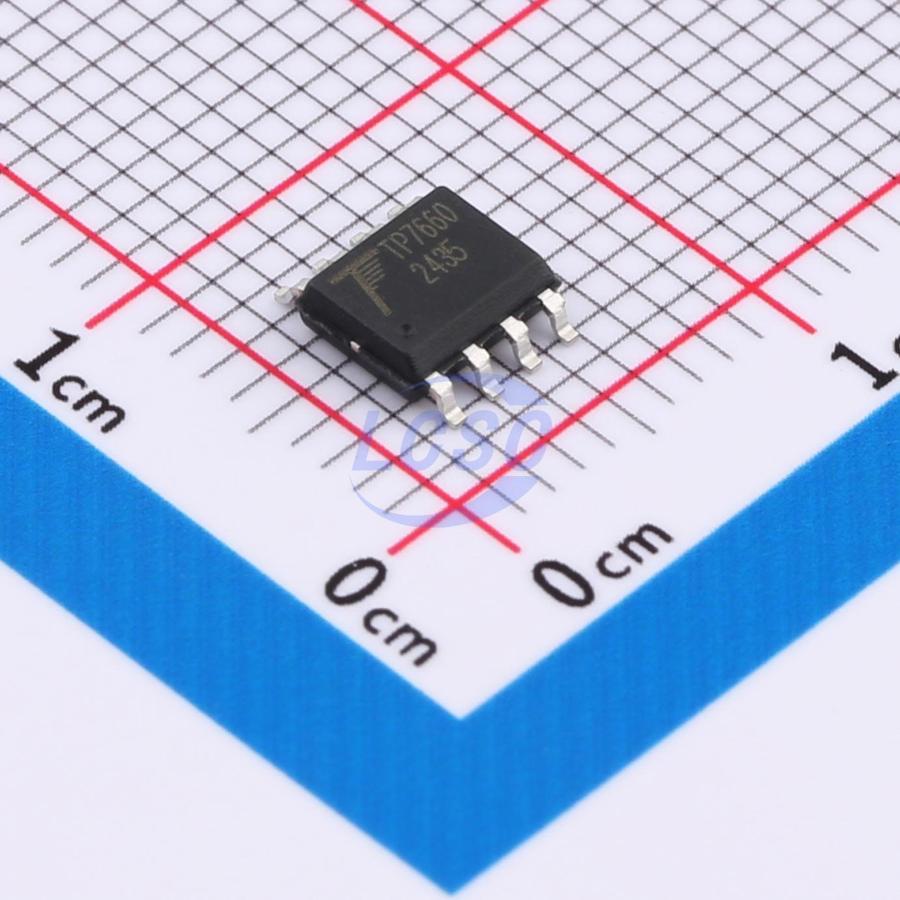

TP7660
Inverted 10kHz -8V~-1.2V SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
Charge pump voltage inverter
- Manufacturer
- TOP POWER ASIC
- Manufacturer part #
- TP7660
- Store part #
- C41413029
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C41413029
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.21 | ₹206.05 |
| 50+ | ₹32.22 | ₹1,611.00 |
| 150+ | ₹28.37 | ₹4,255.50 |
| 500+ | ₹23.55 | ₹11,775.00 |
| 2,500+ | ₹21.41 | ₹53,525.00 |
| 4,000+ | ₹20.12 | ₹80,480.00 |
5 × ₹41.21
₹206.05
excl. GST
₹243.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TP7660
₹206.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Function
- Inverted
- Frequency - Switching
- 10kHz
- Features
- Cascade support
- Operating Voltage
- 1.2V~8V
- Output Voltage
- -8V~-1.2V
- Energy Efficiency
- 98%
- Quiescent Current
- 20uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
TP7660 is a dedicated integrated circuit for DC/DC charge pump voltage inverters. The chip can convert input voltages ranging from 1.2V ~ 8V into corresponding outputs of -1.2V ~ -8V and only requires three external capacitors without inductors, reducing losses, area, and electromagnetic interference. The chip has a low no-load current and strong driving capability (50% larger than similar foreign products).
Key features
- Wide range of input working voltage: 1.2V ~ 8V
- High voltage conversion accuracy: 99.9%
- High power conversion efficiency: 98%
- Low-power consumption: No load current 20μA (VIN = 5V)
- Low output resistance: 40Ω (VIN = 5V)
- Less peripheral components: only three external capacitors are needed
- High electrostatic breakdown voltage: 3KV
- SOP-8 package
