TOP POWER ASICDatasheet (PDF)

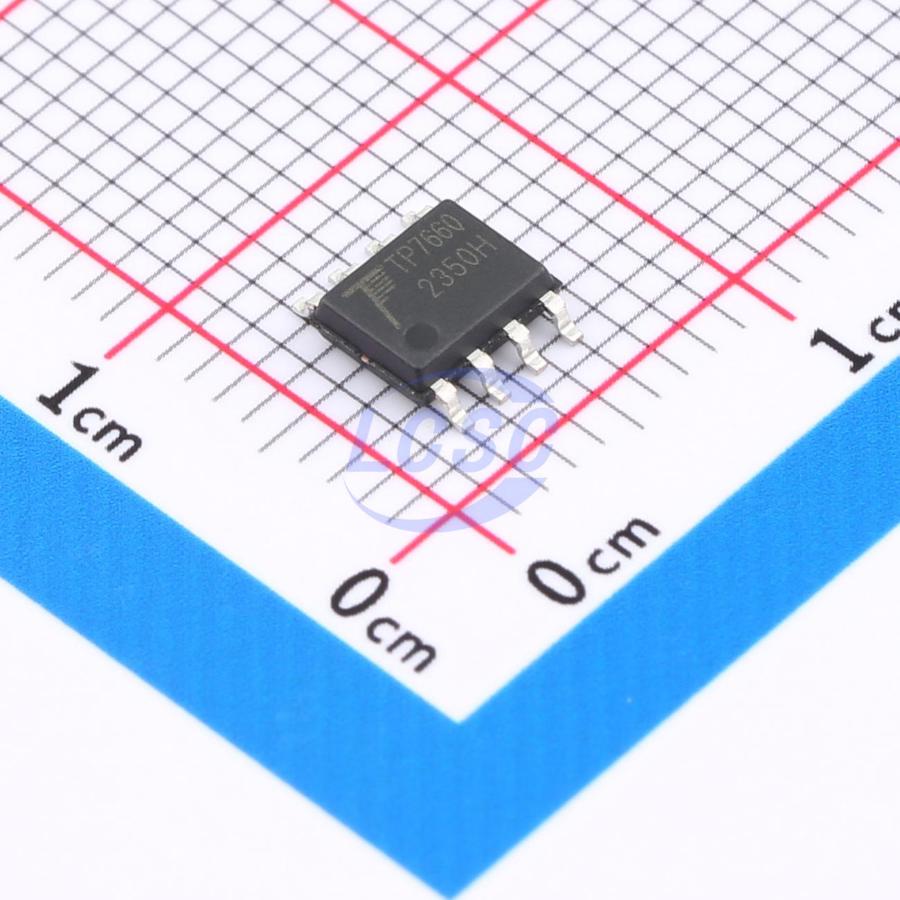

TP7660H
10kHz Inverted -11V~-2.5V SOIC-8-150mil Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8-150milROHS CompliantActive
Charge pump voltage inverter
- Manufacturer
- TOP POWER ASIC
- Manufacturer part #
- TP7660H
- Store part #
- C2833525
- Package / case
- SOIC-8-150mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,430 in stock
#C2833525
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.98 | ₹199.90 |
| 50+ | ₹31.82 | ₹1,591.00 |
| 150+ | ₹27.82 | ₹4,173.00 |
| 500+ | ₹24.26 | ₹12,130.00 |
| 2,500+ | ₹19.58 | ₹48,950.00 |
| 4,000+ | ₹19.00 | ₹76,000.00 |
5 × ₹39.98
₹199.90
excl. GST
₹235.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TP7660H
₹199.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 10kHz
- Function
- Inverted
- Features
- Cascade support
- Operating Voltage
- 2.5V~11V
- Output Voltage
- -11V~-2.5V
- Energy Efficiency
- 98%
- Quiescent Current
- 60uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
TP7660H is a dedicated integrated circuit for DC/DC charge pump voltage inverters. The chip can convert input voltages ranging from 2.5V to 11V into corresponding outputs of -2.5V to -11V, and only requires three external capacitors without inductors, reducing losses, area, and electromagnetic interference. The chip has a low no-load current and strong driving capability (20% larger than similar foreign products).
Key features
- Wide range of input working voltage: 2.5V~11V
- High voltage conversion accuracy: 99.9%
- High power conversion efficiency: 98%
- Low-power consumption: No load current 40uA (VIN = 5V)
- Low output resistance: 50Ω (VIN = 5V)
- Less peripheral components: only three external capacitors are needed
- High electrostatic breakdown voltage: 3KV
- SOP-8 package
