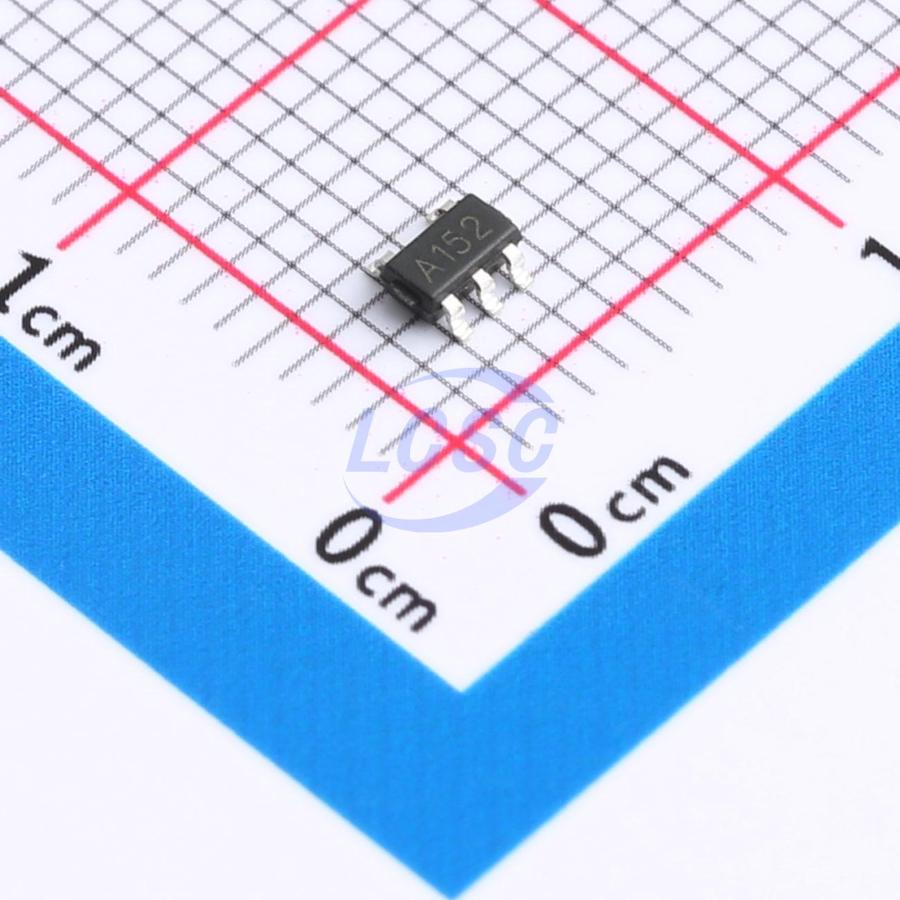

TP8008BAAC
Switching Regulator IC Adjustable 1A SOT-23-5
SOT-23-5RoHSActive
High Efficiency 1.5MHz, 1A Synchronous Step Down Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP8008BAAC
- Store part #
- C2841413
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,675 in stock
#C2841413
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.07 | ₹90.35 |
| 50+ | ₹14.41 | ₹720.50 |
| 150+ | ₹12.58 | ₹1,887.00 |
| 500+ | ₹11.22 | ₹5,610.00 |
| 3,000+ | ₹9.09 | ₹27,270.00 |
| 6,000+ | ₹8.53 | ₹51,180.00 |
5 × ₹18.07
₹90.35
excl. GST
₹106.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP8008BAAC
₹90.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Number of Outputs
- 1
- Frequency - Switching
- 1.5MHz
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 150uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- Networking
- IP CAM
- LCD TV
- DSL Modem
- Access Point Router
- Digital TV
- Set Top Box
Key features
- Supply Voltage Range: 2.5V to 5.5V
- Guaranteed 1A continuous load current
- 2% 0.6V reference
- Cycle-by-cycle peak current limitation
- Instant PWM architecture to achieve fast transient responses
- Internal softstart limits the inrush current
- Current Limiting Protection
- Low RDS(ON) for internal switches (top/bottom): 250/200 mΩ
- Fixed 1.5MHz Switching Frequency
- Efficiency Up to 95%
- RoHS and Halogen free compliance
- Compact package: SOT23-5
