TECH PUBLICDatasheet (PDF)

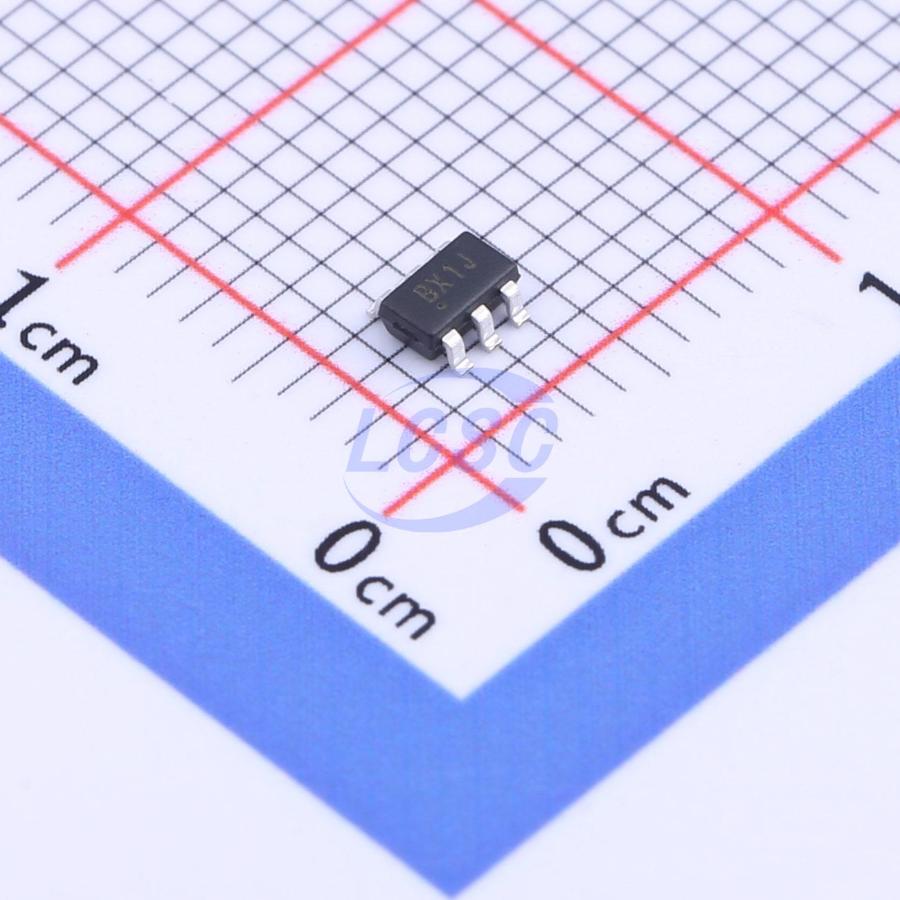

TP8009S6
Step-down type 1.3MHz Adjustable 600mV~6V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
5V 2A, 1.3MHz Synchronous Buck Converter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP8009S6
- Store part #
- C2923359
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,145 in stock
#C2923359
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.68 | ₹103.40 |
| 50+ | ₹20.23 | ₹1,011.50 |
| 150+ | ₹19.94 | ₹2,991.00 |
| 500+ | ₹19.65 | ₹9,825.00 |
5 × ₹20.68
₹103.40
excl. GST
₹122.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP8009S6
₹103.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 1.3MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~6V
- Output Current
- 2A
- Quiescent Current
- 50uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The TP8009S6 is a high-efficiency, DC-to-DC step-down switching regulators, capable of delivering up to 2A of output current. The device operates from an input voltage range of 2.5V to 6.0V and provides an output voltage from 0.6V to VIN, making the TP8009S6 ideal for low voltage power conversions. Running at a fixed frequency of 1.3MHz allows the use of small external components, such as ceramic input and output caps, as well as small inductors, while still providing low output ripples. This low noise output along with its excellent efficiency achieved by the internal synchronous rectifier, making TP8009S6 an ideal green replacement for large power consuming linear regulators. Internal soft-start control circuitry reduces inrush current. Short-circuit and thermal-overload protection improves design reliability. The TP8009S6 is available in a SOT23-6 Package
Applications
- Digital Cameras
- MP3 and MP4 players
- Set top boxes
- Wireless and DSL Modems
- USB supplied Devices in Notebooks Portable Devices
Key features
- High Efficiency: Up to 97%
- Capable of Delivering 2A
- 1.3MHz Switching Frequency
- No External Schottky Diode Needed
- Light-load Mode
- Internal Compensation and Soft-Start
- Current Mode control
- 0.6V Reference for Low Output voltages
- Logic Control Shutdown (10 < 1uA)
- Thermal shutdown and UVLO
- Available in SOT23-6
