TECH PUBLIC

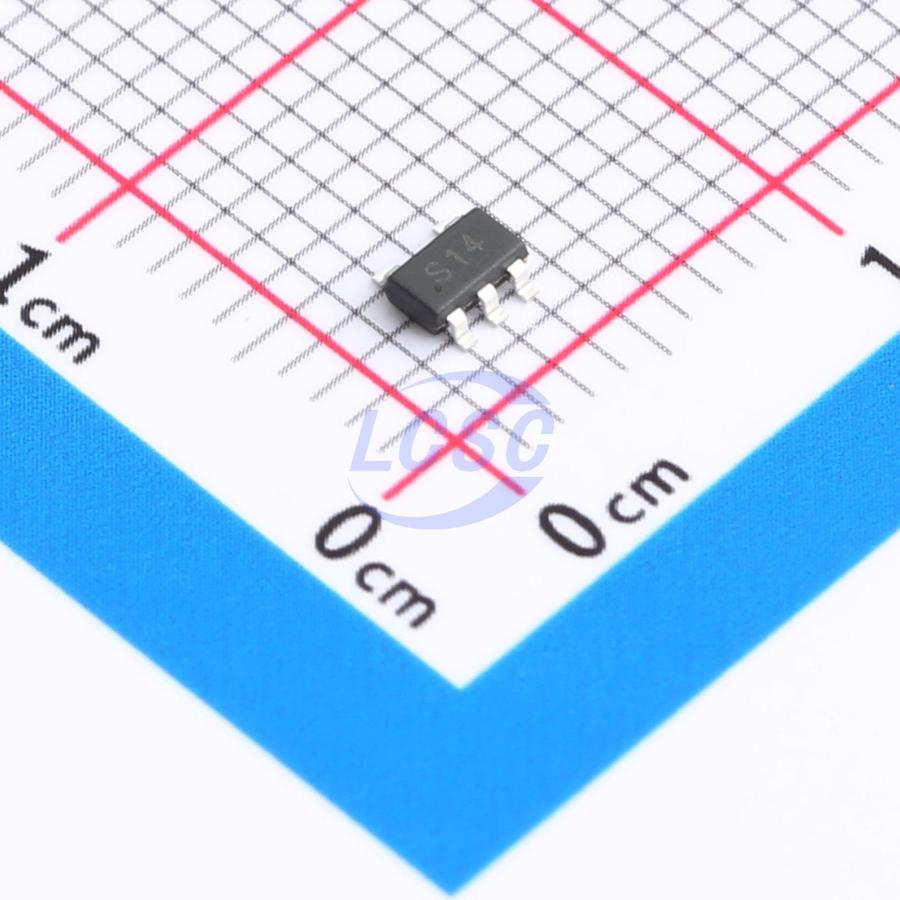

TPADG702BRJZ

2Ω 1 1.6V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers

SOT-23-5RoHSActive

SINGLE-CHANNEL 2Q SPST ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: TPADG702BRJZ
Store part #: C47117592
Package / case: SOT-23-5
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,619 in stock

#C47117592

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹46.40	₹46.40
10+	₹40.35	₹403.50
30+	₹37.76	₹1,132.80
100+	₹34.53	₹3,453.00
500+	₹33.23	₹16,615.00
1,000+	₹32.37	₹32,370.00

Quantity (min 1)

1 × ₹46.40

₹46.40

excl. GST

₹54.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPADG702BRJZ

₹46.40 for 1 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Ron: 2Ω
Number of Channels: 1
Voltage - Supply: 1.6V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.062 g

Overview

The is a low voltage single-pole,double-throw (SPDT) analog switch intending for use in chopping,modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, Ron = 2Ω
1.8V Logic Compatible Control Pin Overrides VDD to Achieve True Isolation Even When Supply Is Dead
High Off-lsolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @ 700MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2uA)
With Very Wide Supply Range (1.5V ~ 5.5V)
