TECH PUBLIC

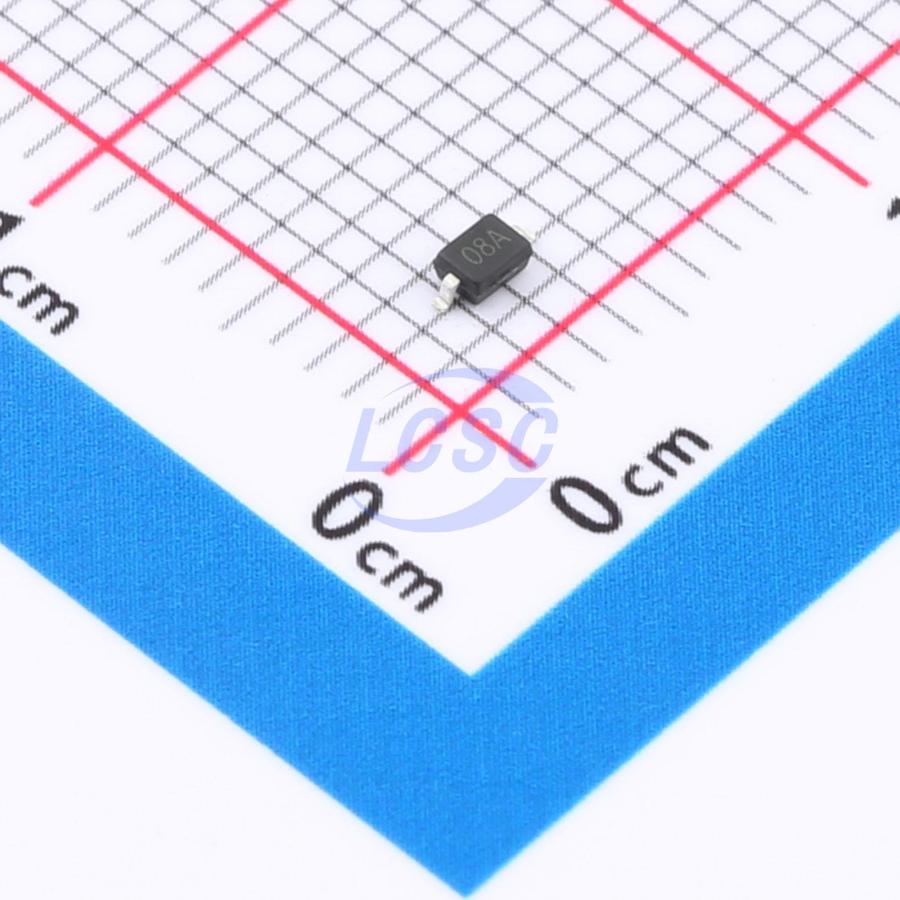

TPASD08C

14VC Clamp 8A@8/20us Ipp SOD-323

SOD-323RoHSActive

14VC SOD-323

Manufacturer: TECH PUBLIC
Manufacturer part #: TPASD08C
Store part #: C48886818
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,900 in stock

#C48886818

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
20+	₹5.05	₹101.00
200+	₹4.02	₹804.00
600+	₹3.44	₹2,064.00
3,000+	₹2.84	₹8,520.00
9,000+	₹2.54	₹22,860.00
21,000+	₹2.38	₹49,980.00

Quantity (min 20, multiples of 20)

20 × ₹5.05

₹101.00

excl. GST

₹119.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPASD08C

₹101.00 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 14V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 8A@8/20us
Peak Pulse Power Dissipation (Ppp): 150W@8/20us
Number of Channels: 1
Voltage - Breakdown: 9.7V
type: ESD
Polarity: Bidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 8V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.028 g

Overview

Applications

Mobile phones & accessories
Personal digital assistants
Laptops & handheld devices
Portable instruments
Peripherals

Key features

Low operating voltage: 8V
Ultra-low capacitance: 12pF
Ultra-low leakage current: nA level
Low clamping voltage
Compliant with IEC 61000-4-2 (ESD) immunity test standard
Air discharge: ±30kV
Contact discharge: ±30kV
Compliant with IEC 61000-4-4 (EFT) 40A (5/50ns) standard
2-pin leadless package
Lead-free device
Typical response time < 1 ns
Package: SOD323 (0805)
Lead finish: Matte Tin
Case material: "Green" molding compound
Terminal connections: See diagram below
