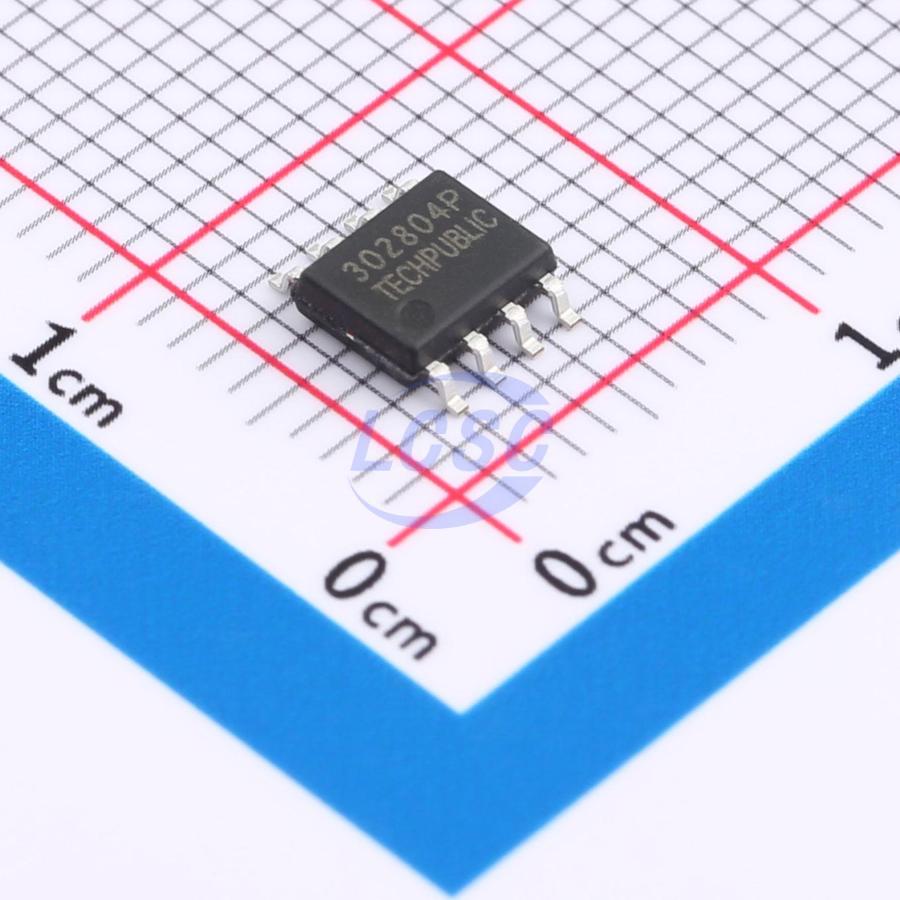

TECH PUBLIC

TPAZ3028-04P.RDG

5.5VC 10VC Clamp 10A@8/20us Ipp SO-8

SO-8RoHSActive

2.8VWM 5.5VC 10VC SO-8

Manufacturer: TECH PUBLIC
Manufacturer part #: TPAZ3028-04P.RDG
Store part #: C2835468
Package / case: SO-8
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,045 in stock

#C2835468

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
5+	₹49.08	₹245.40
50+	₹39.23	₹1,961.50
150+	₹35.01	₹5,251.50
500+	₹29.73	₹14,865.00
2,500+	₹24.20	₹60,500.00
5,000+	₹22.80	₹1,14,000.00

Quantity (min 5, multiples of 5)

5 × ₹49.08

₹245.40

excl. GST

₹289.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

TPAZ3028-04P.RDG

₹245.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 5.5V;10V
Operating Temperature: -40℃~+125℃
Peak Pulse Current (Ipp): 10A@8/20us
Peak Pulse Power Dissipation (Ppp): 100W@8/20us
Number of Channels: Four channels
Reverse Leakage Current (Ir): 1uA
Reverse Stand-Off Voltage (Vrwm): 2.8V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.23 g

Overview

Applications

Base Station
Analog Inputs
Switch Systems
10/100/1000 Ethernet
WAN/LAN Equipment
Desktops, Servers, and Notebooks
Low Voltage Interfaces

Key features

Protects two line pairs(four lines)
Ultra low leakage: nA level
Low operating voltage: 2.8V
Low capacitance
Ultra low clamping voltage
JEDEC SO-8 package
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 10A (8/20µs)
RoHS Compliant
