TECH PUBLICDatasheet (PDF)

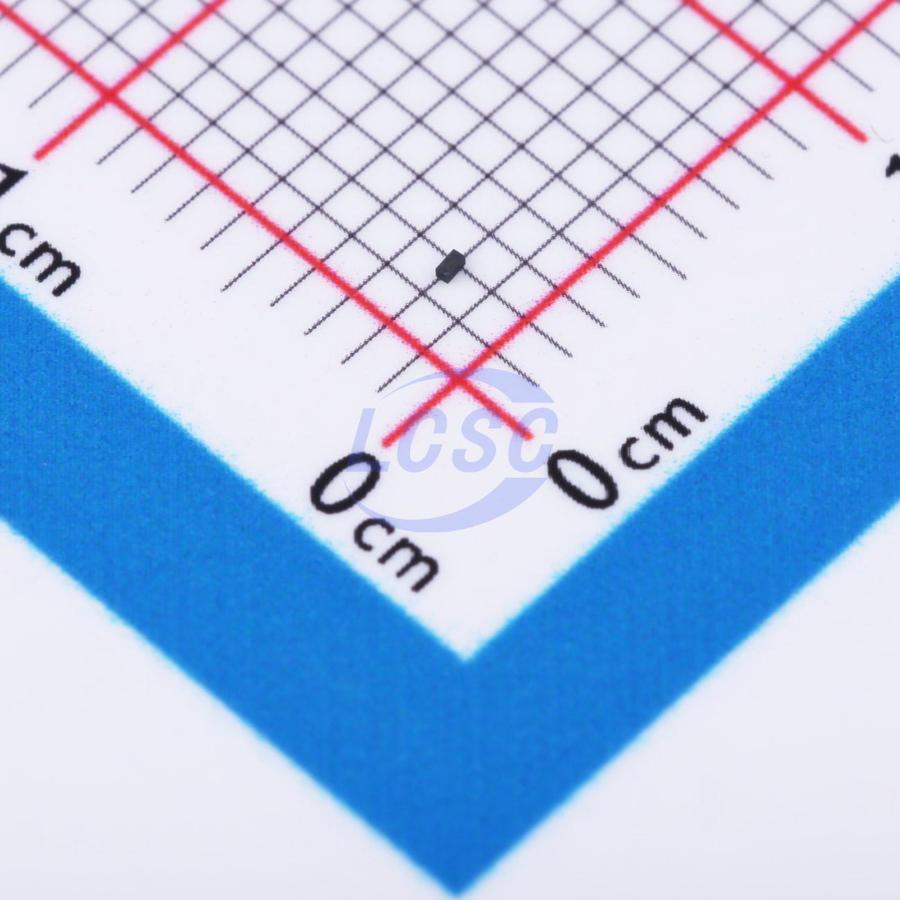

TPAZ6A25-01B.R7G
9VC Clamp 19A@8/20us Ipp ESD DIODE DFN0603-2
DFN0603-2RoHSActive
ESD DIODE 2.5VWM 9VC DFN0603-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAZ6A25-01B.R7G
- Store part #
- C2890106
- Package / case
- DFN0603-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,780 in stock
#C2890106
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.21 | ₹44.20 |
| 200+ | ₹2.16 | ₹432.00 |
| 600+ | ₹2.13 | ₹1,278.00 |
| 2,000+ | ₹2.09 | ₹4,180.00 |
20 × ₹2.21
₹44.20
excl. GST
₹52.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPAZ6A25-01B.R7G
₹44.20 for 20 + GST
Specifications
- Clamping Voltage
- 9V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 19A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 180W@8/20us
- Voltage - Breakdown
- 5.8V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 2.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.008 g
