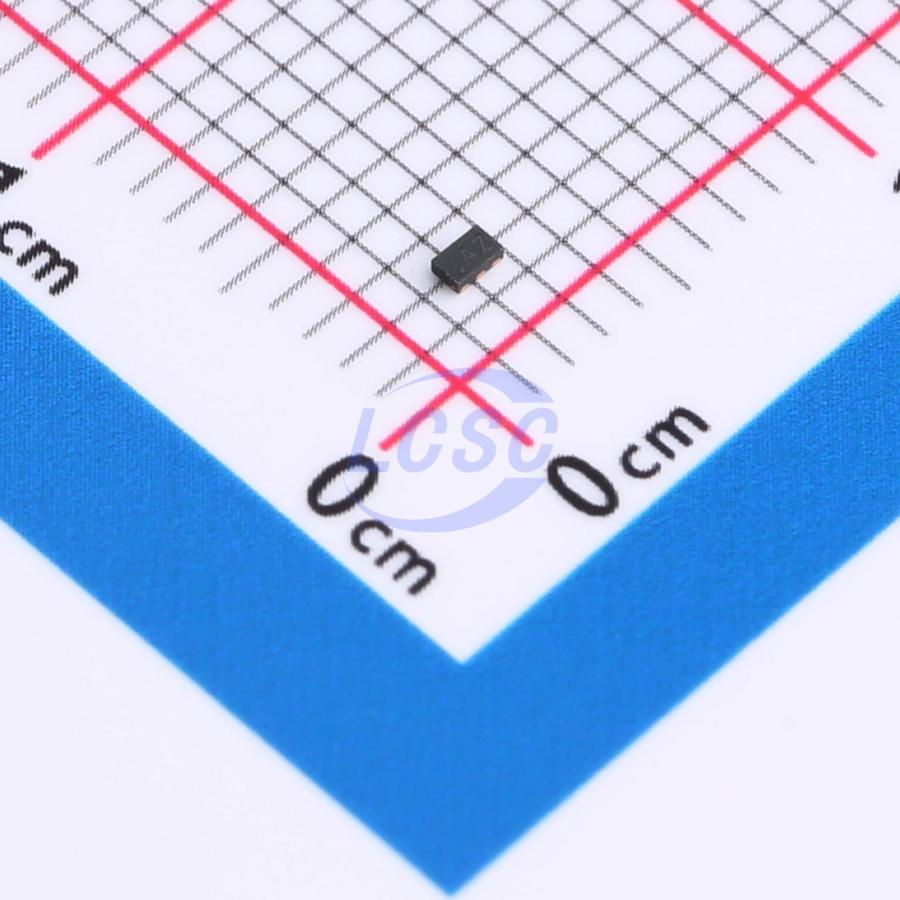

TPAZ9173-04F TECH PUBLIC

TPAZ9173-04F

9VC Clamp 3A Ipp DFN1308-5

DFN1308-5RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPAZ9173-04F
Store part #: C41425651
Package / case: DFN1308-5
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C41425651

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹21.79	₹108.95
50+	₹17.38	₹869.00
150+	₹15.49	₹2,323.50
500+	₹13.14	₹6,570.00
3,000+	₹12.08	₹36,240.00
6,000+	₹11.46	₹68,760.00

Quantity (min 5, multiples of 5)

5 × ₹21.79

₹108.95

excl. GST

₹128.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPAZ9173-04F

₹108.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 9V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 3A
Peak Pulse Power Dissipation (Ppp): 60W
Voltage - Breakdown: 8V
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.024 g

Overview

Applications

HDMI, USB 3.0, MDDI, SATA ports
Portable Electronics
Computers and Peripheral
Digital visual interface
Microcontroller Input Protection

Key features

Low operating voltage: 3.3V
Low clamping voltage
Low capacitance: 0.6pF typical
Protects four I/O lines
Small package saves board space
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green" Device
Array of surge rated diodes with internal TVS Diode
ESD protection for high-speed data lines to IEC 61000 - 4 - 2 (ESD) ±15kV (air), ±15kV (contact)
IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
IEC 61000 - 4 - 5 (Lightning) 3 A (8/20μs)
