TECH PUBLICDatasheet (PDF)

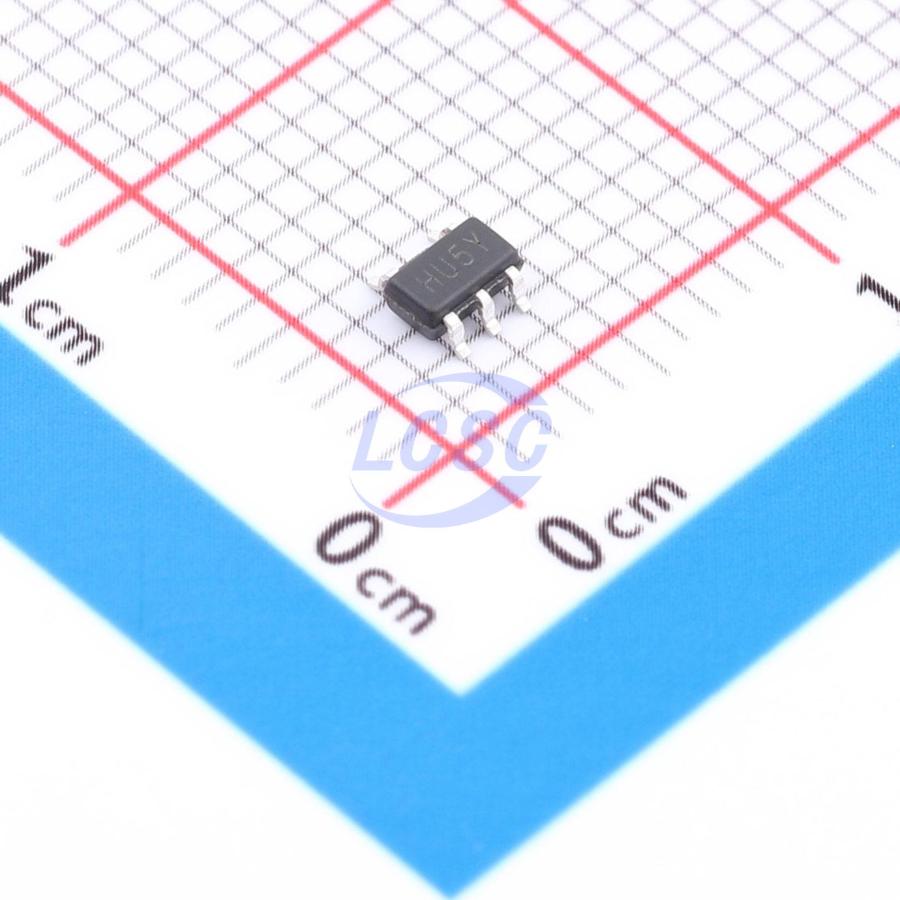

TPBL8028CB5G
Step-down type 1.5MHz Adjustable 1.5A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPBL8028CB5G
- Store part #
- C50314360
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,935 in stock
#C50314360
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.69 | ₹68.45 |
| 50+ | ₹10.84 | ₹542.00 |
| 150+ | ₹9.39 | ₹1,408.50 |
| 500+ | ₹8.32 | ₹4,160.00 |
| 3,000+ | ₹7.46 | ₹22,380.00 |
| 6,000+ | ₹7.03 | ₹42,180.00 |
5 × ₹13.69
₹68.45
excl. GST
₹80.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPBL8028CB5G
₹68.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 1.5MHz
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~6V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
TPBL8028CB5G is a high-efficiency monolithic synchronous buck regulator featuring a constant-frequency, current-mode architecture. The device is available in an adjustable output version. Quiescent current is 40μA at no load, dropping to <1μA in shutdown. The 2.5V to 6V input voltage range makes it ideally suited for single-cell Li-Ion battery-powered applications. 100% duty cycle enables low dropout operation, extending battery life in portable systems. PWM/PFM mode operation provides ultralow output ripple voltage for noise-sensitive applications. The switching frequency is internally set to 1.5MHz, allowing the use of small surface-mount inductors and capacitors. The 0.6V feedback reference voltage readily supports low output voltages. TPBL8028CB5G is available in a SOT23-5 package.
Applications
- Cell phones and smartphones
- Wireless and DSL modems
- Personal digital assistants
- Portable instruments
- Digital cameras and camcorders
- PC cards
Key features
- High efficiency: up to 96%
- 2.5V to 6V input voltage range
- 1.5MHz constant frequency operation
- No Schottky diode required
- Low dropout operation: 100% duty cycle
- PFM mode for high efficiency at light load
- Over-temperature protection
- Low quiescent current: 40μA
- Short-circuit protection
- Inrush current limiting and soft-start
- SOT23-5 package
