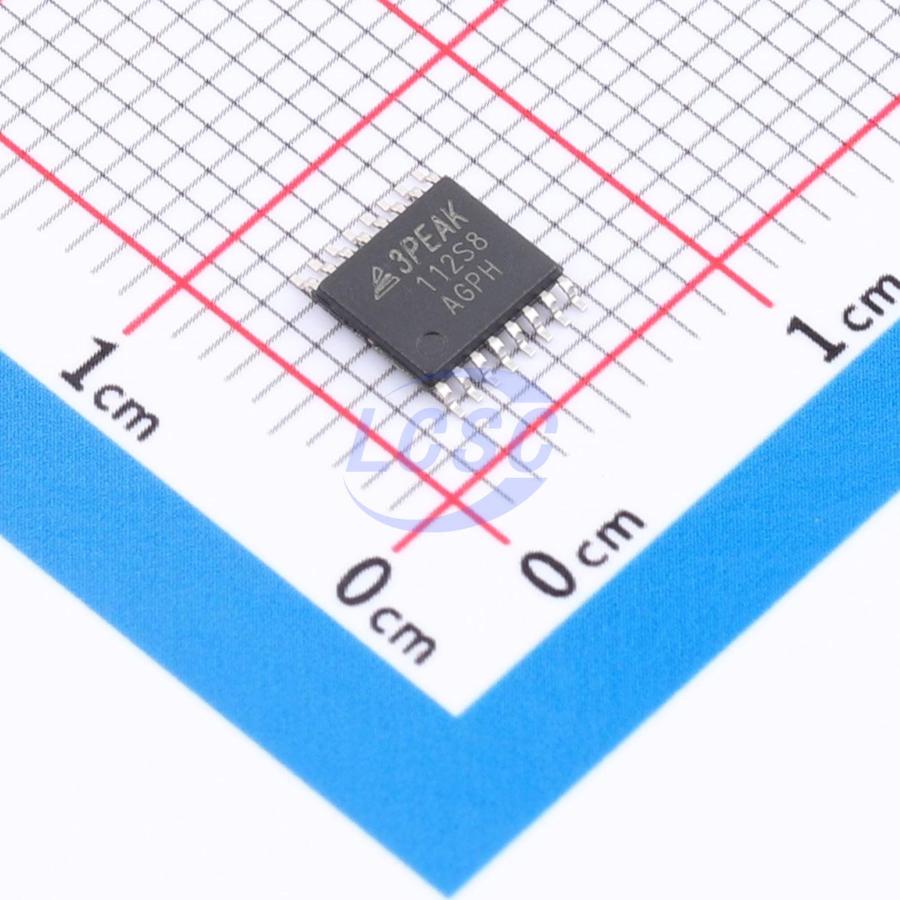

TPC112S8-TR

TPC116S8/TPC112S8 are pin-compatible 16-bit and 12-bit DACs. This product family features eight-channel, low-power DACs with buffered voltage outputs, designed to guarantee monotonicity. The devices use a precision external reference voltage applied through a high-impedance input to achieve rail-to-rail operation and low system power consumption. TPC116S8/TPC112S8 accept a wide supply voltage range of 2.7 V to 5.5 V. An integrated power-on reset circuit ensures the DAC outputs power up at 0 V and remain at that level until a valid write operation occurs. The on-chip precision output amplifier of the TPC116S8/TPC112S8 enables rail-to-rail output swing. For remote sensing applications, the inverting input of the output amplifier is accessible to the user. TPC116S8/TPC112S8 use a standard 3-wire serial interface operating at clock rates up to 30 MHz, compatible with SPI, QSPI, MICROWIRE, and DSP interface standards. TPC116S8/TPC112S8 are available in a compact TSSOP16 package. All package options support an extended industrial temperature range of −40°C to +125°C.

Applications

• Gain and offset adjustment
• Process control and servo loops
• Programmable voltage and current sources
• Programmable attenuators
• Automatic test equipment

Key features

• 8-channel, 16-bit/12-bit pin-compatible DAC (TPC116S8: 16-bit; TPC112S8: 12-bit)
• Low power consumption (typical 1.6 mA)
• Differential nonlinearity: ±1 LSB (max)
• Glitch energy: 2 nV-s
• Power-on reset to zero
• Supply range: 2.7 V to 5.5 V
• Buffered rail-to-rail output operation
• Safe power-on reset to zero DAC output
• Fast 30 MHz, 3-wire SPI/QSPI/MICROWIRE-compatible serial interface
• Schmitt trigger inputs for direct optocoupler connection
• SYNC interrupt function
• Available in QFN4X4-16 and TSSOP16 packages
