3PEAKDatasheet (PDF)

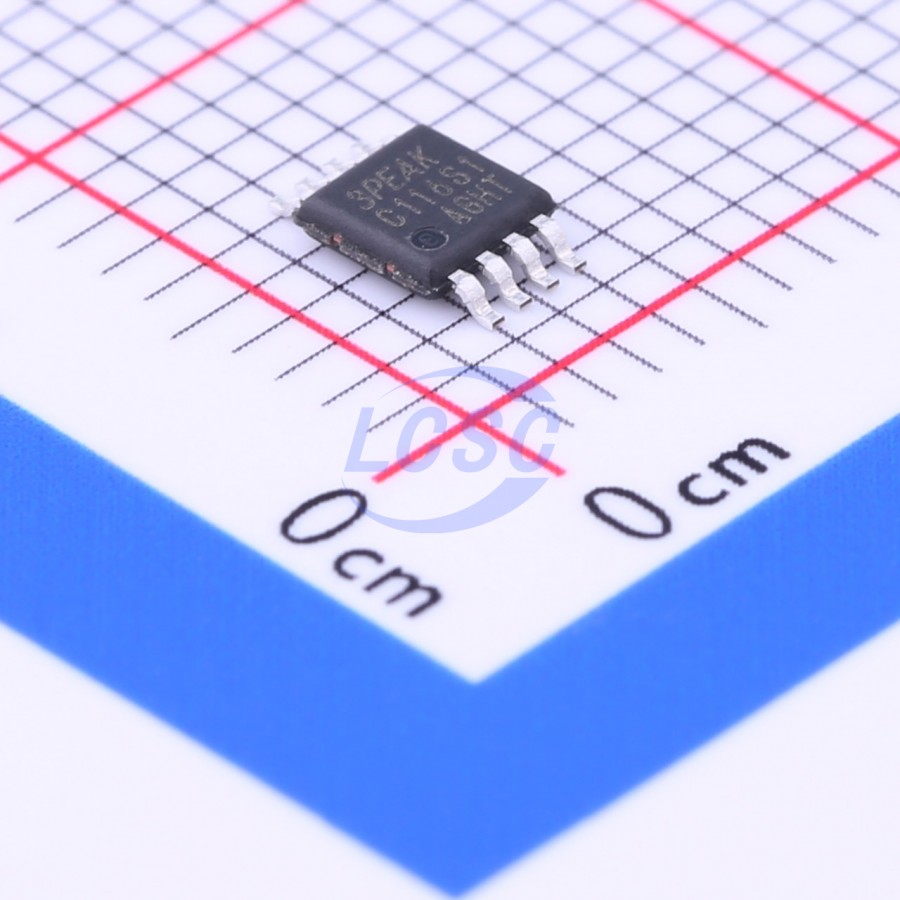

TPC116S1-VR
14us 2.7V~5.5V 2LSB MSOP-8 Digital to Analog Converters (DAC) RoHS
MSOP-8ROHS3 CompliantActive
Single Bit, Low Power, High Performance DACs
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPC116S1-VR
- Store part #
- C248597
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,086 in stock
#C248597
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹414.52 | ₹414.52 |
| 10+ | ₹337.05 | ₹3,370.50 |
| 30+ | ₹294.51 | ₹8,835.30 |
| 100+ | ₹246.33 | ₹24,633.00 |
| 500+ | ₹225.06 | ₹1,12,530.00 |
| 1,000+ | ₹215.29 | ₹2,15,290.00 |
1 × ₹414.52
₹414.52
excl. GST
₹489.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPC116S1-VR
₹414.52 for 1 + GST
Specifications
- Settling Time
- 14us
- Quiescent Current (Iq)
- 90uA
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 2.7V~5.5V
- Function
- Power-on reset;Integrated buffer;Power-down mode
- Integral non - linearity
- 2LSB
- Resolution (Bits)
- 16;-
- Number of Channels
- 1
- Interface Type
- SPI;QSPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.08 g
Overview
Single, 16-/14-/12-Bit Pin Compatible DACs TPC116S1: 16bit TPC114S1: 14bit TPC112S1: 12bit Low Power Consumption (90μA typ) Differential Nonlinearity: ±1LSB(max) Glitch Energy: 0.1nV-s Power-On Reset to Zero Supply Range: 2.7V to 5.5V Buffered Rail-to-Rail Output Operation Safe Power-On Reset (POR) to Zero DAC Output Fast 30MHz, 3-Wire, SPI/QSPI/MICROWIRE-Compatible Serial Interface Schmitt-Trigger Inputs for Direct Optocoupler Interface SYNC Interrupt Facility High Performance Drop-In Compatible With DAC8551,DAC7512 Available in a Tiny MSOP-8 Package
Applications
- Gain and Offset Adjustment
- 2-Wire Sensors
- Process Control and Servo Loops
- Portable Instrumentation
- Programmable voltage and current sources
- Programmable attenuators
- Automatic Test Equipment
Key features
- Low power consumption: 90μA (typical)
- Differential nonlinearity: ±1LSB (max)
- Glitch energy: 0.1nV-s
- Power-on reset to zero
- Supply range: 2.7V to 5.5V
- Buffered rail-to-rail output operation
- Safe power-on reset (POR) to zero DAC output
- Fast 30MHz, 3-wire, SPI/QSPI/MICROWIRE compatible serial interface
- Schmitt trigger inputs for direct optocoupler interface
- SYNC interrupt function
- High performance, direct replacement for DAC8551, DAC7512
- MSOP-8 package
