3PEAKDatasheet (PDF)

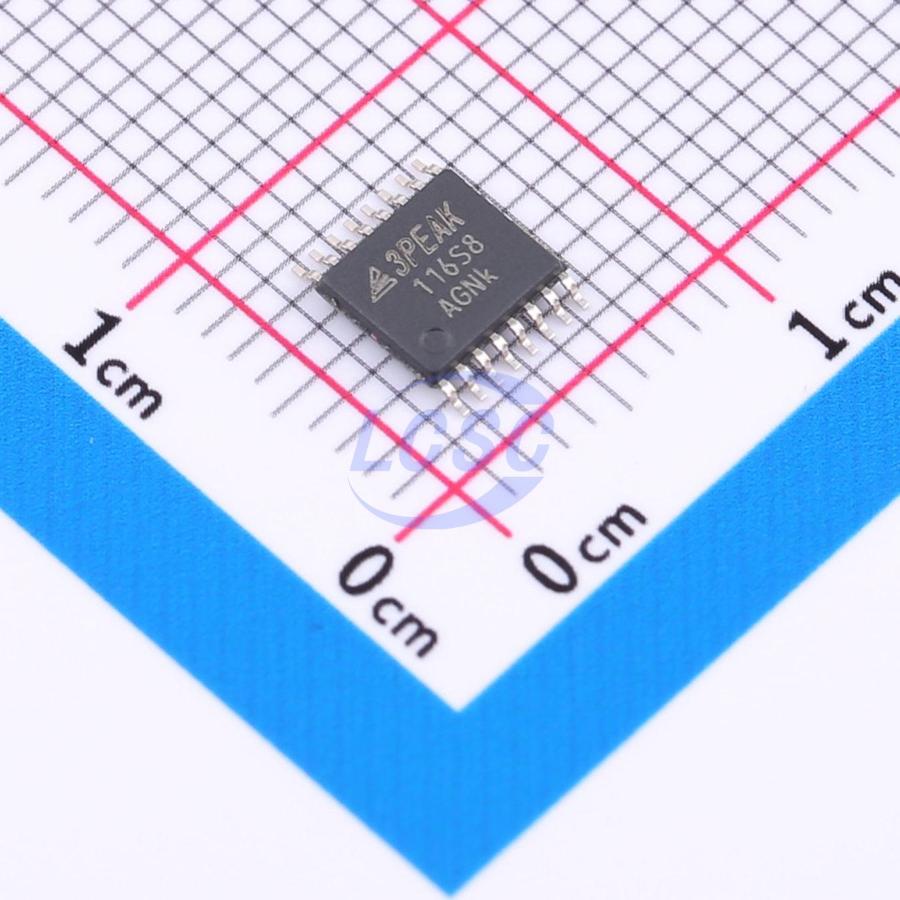

TPC116S8-TR
14us 2.7V~5.5V 8LSB TSSOP-16 Digital to Analog Converters (DAC) RoHS
TSSOP-16ROHS3 CompliantActive
Octal 16-/12-Bit, Low Power, High Performance DACs
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPC116S8-TR
- Store part #
- C2688733
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,168 in stock
#C2688733
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹877.18 | ₹877.18 |
| 10+ | ₹738.56 | ₹7,385.60 |
| 30+ | ₹656.25 | ₹19,687.50 |
| 100+ | ₹573.08 | ₹57,308.00 |
| 500+ | ₹534.56 | ₹2,67,280.00 |
| 1,000+ | ₹517.21 | ₹5,17,210.00 |
1 × ₹877.18
₹877.18
excl. GST
₹1,035.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPC116S8-TR
₹877.18 for 1 + GST
Specifications
- Settling Time
- 14us
- Quiescent Current (Iq)
- 800uA
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 2.7V~5.5V
- Function
- Multi-chip synchronization;Power-on reset;Output short-circuit protection;Power-down mode
- Integral non - linearity
- 8LSB
- Resolution (Bits)
- 16;-
- Number of Channels
- 8
- Interface Type
- SPI;QSPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
Octal 16-/12-Bit, Low Power, High Performance DACs
Applications
- Gain and Offset Adjustment
- Process Control and Servo Loops
- Programmable voltage and current sources
- Programmable attenuators
- Automatic Test Equipment
Key features
- Octal, 16-/12-Bit Pin Compatible DACs
- TPC116S8: 16bit
- TPC112S8: 12bit
- Low Power Consumption (1.6 mA typ)
- Differential Nonlinearity: ±1LSB(max)
- Glitch Energy: 2nV-s
- Power-On Reset to Zero
- Supply Range: 2.7V to 5.5V
- Buffered Rail-to-Rail Output Operation
- Safe Power-On Reset (POR) to Zero DAC Output
- Fast 30MHz, 3-Wire, SPI/QSPI/MICROWIRE-Compatible Serial Interface
- Schmitt-Trigger Inputs for Direct Optocoupler Interface
- SYNC Interrupt Facility
- Available in QFN16 and TSSOP-16 Package
