VISHAYDatasheet (PDF)

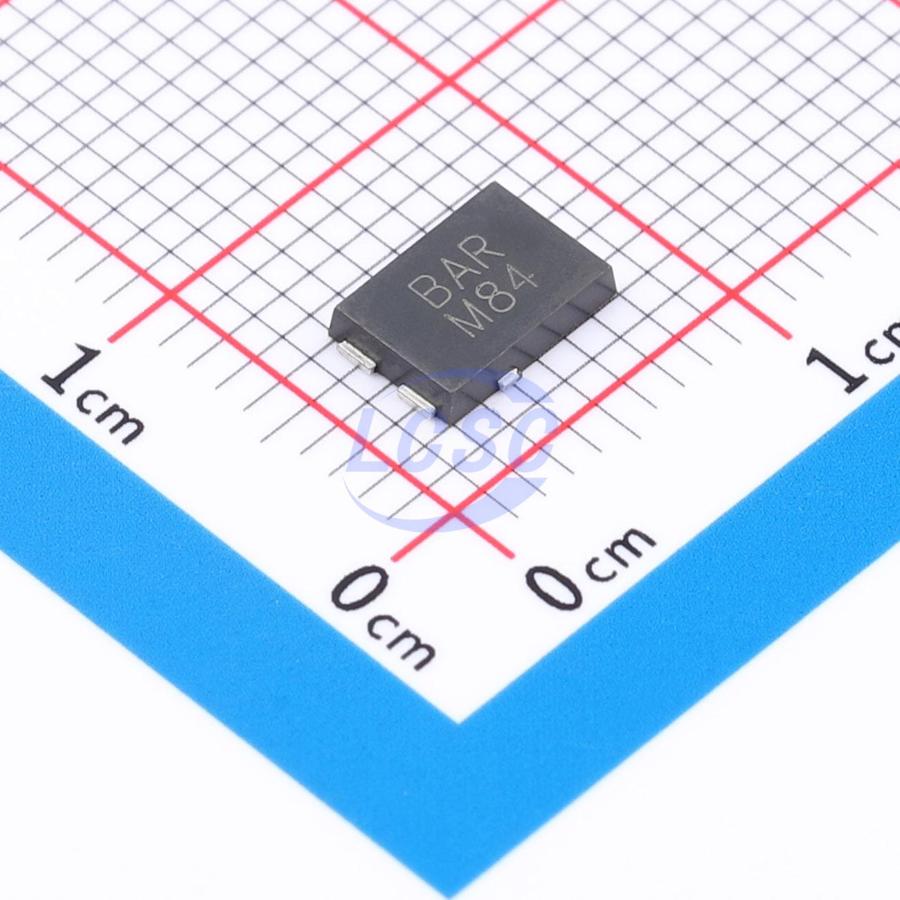

TPC36CAHM3/H
49.9VC Clamp 30.1A@10/1000us Ipp TVS DIODE TO-277A
TO-277AROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- TPC36CAHM3/H
- Store part #
- C1978109
- Package / case
- TO-277A
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C1978109
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹229.55 | ₹229.55 |
| 10+ | ₹226.34 | ₹2,263.40 |
| 30+ | ₹224.41 | ₹6,732.30 |
| 100+ | ₹222.25 | ₹22,225.00 |
1 × ₹229.55
₹229.55
excl. GST
₹270.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
TPC36CAHM3/H
₹229.55 for 1 + GST
Specifications
- Clamping Voltage
- 49.9V
- Operating Temperature
- -65℃~+185℃
- Peak Pulse Current (Ipp)
- 30.1A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 37.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 30.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.296 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for automotive, consumer, computer, industrial, and telecommunication.
Key features
- Junction passivation optimized PAR@ design
- TJ = 185 ℃ capability suitable for high reliability Pb and automotive requirement
- Very low profile - typical height of 1.1 mm RoHS COMPLIANT
- Ideal for automated placement HALOGEN FREE
- Bi - directional
- Excellent clamping capability
- Low leakage current
- Very fast response time
- AEC - Q101 qualified - Automotive ordering code: base P/NHM3
- Meet MSL level 1, per J - STD - 020, LF maximum peak of 260 ℃
