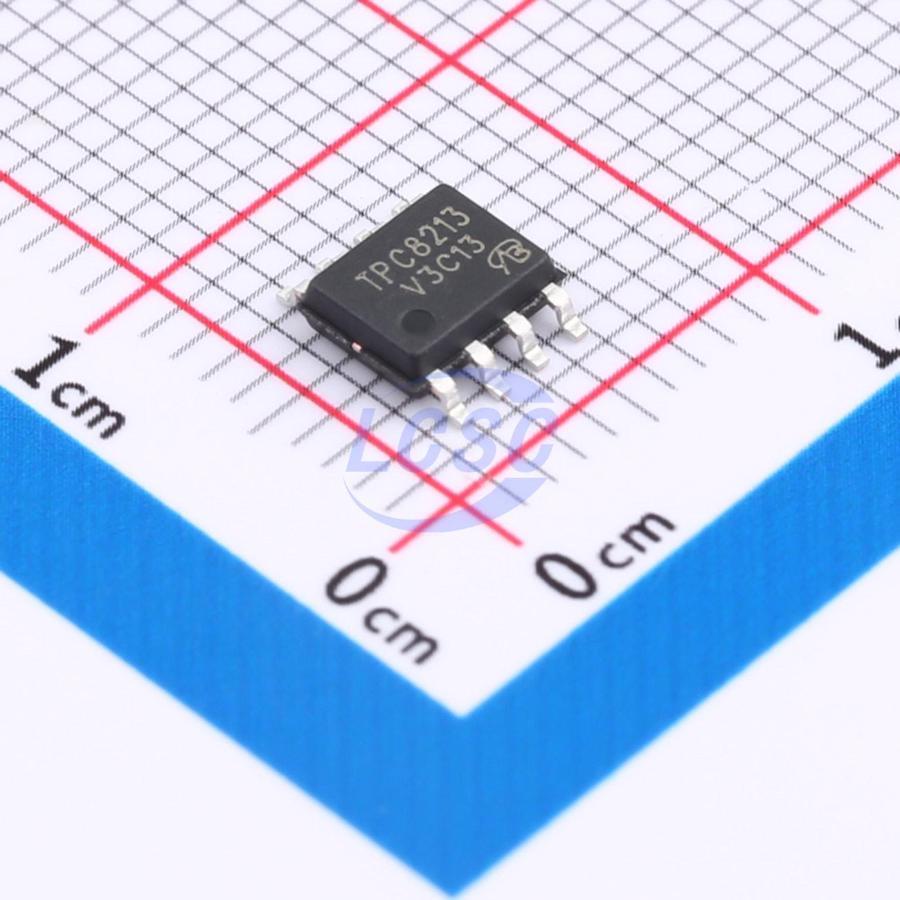

TPC8213-H-VB
N-Channel Array 60V 7A 4W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH ARR 60V 7A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- TPC8213-H-VB
- Store part #
- C7463607
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C7463607
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.14 | ₹90.14 |
| 10+ | ₹74.90 | ₹749.00 |
| 30+ | ₹67.27 | ₹2,018.10 |
| 100+ | ₹59.87 | ₹5,987.00 |
| 500+ | ₹46.60 | ₹23,300.00 |
| 1,000+ | ₹44.20 | ₹44,200.00 |
1 × ₹90.14
₹90.14
excl. GST
₹106.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPC8213-H-VB
₹90.14 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 110pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 600pF
- Pd - Power Dissipation
- 4W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 28mΩ@10V;30mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 11.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.124 g
Overview
Applications
- OR operation
- Server
- DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
