TECH PUBLICDatasheet (PDF)

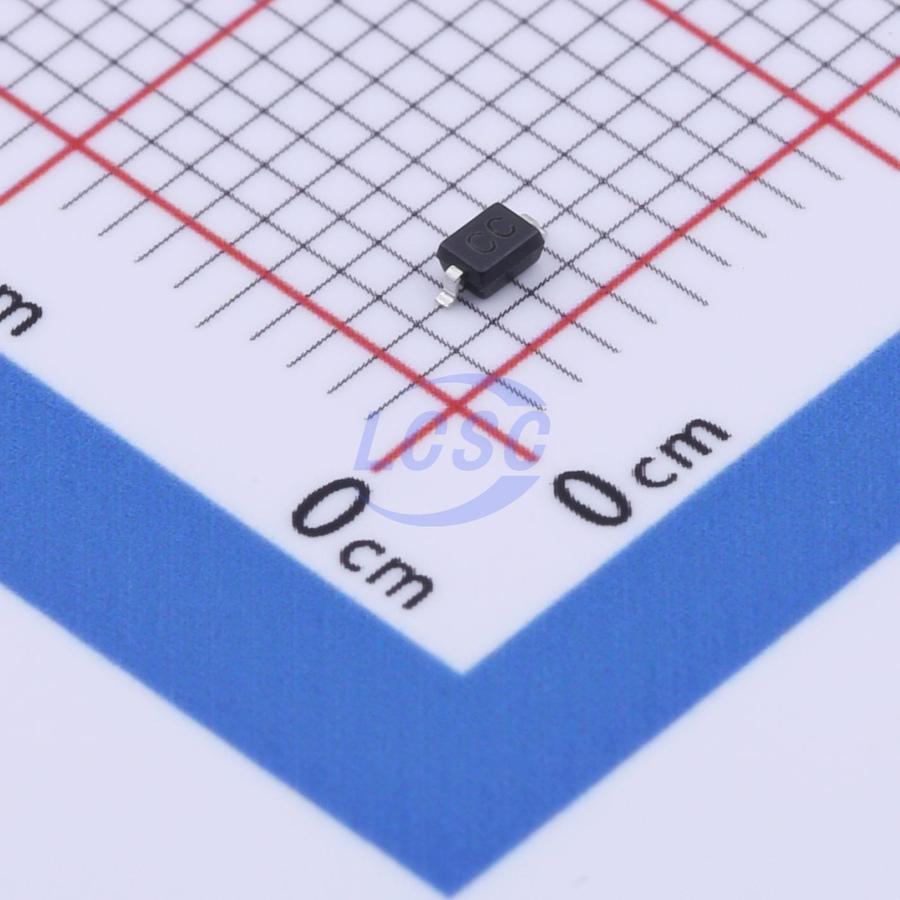

TPCDSOD323-T03C
nan
SOD-323RoHSActive
3.3VWM 5VC 12VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPCDSOD323-T03C
- Store part #
- C2841392
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,445 in stock
#C2841392
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.31 | ₹66.55 |
| 50+ | ₹10.66 | ₹533.00 |
| 150+ | ₹9.34 | ₹1,401.00 |
| 500+ | ₹8.36 | ₹4,180.00 |
| 3,000+ | ₹6.81 | ₹20,430.00 |
| 6,000+ | ₹6.42 | ₹38,520.00 |
5 × ₹13.31
₹66.55
excl. GST
₹78.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPCDSOD323-T03C
₹66.55 for 5 + GST
Specifications
- Clamping Voltage
- 5V;12V
- Peak Pulse Power Dissipation (Ppp)
- 260W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
Applications
- USBPorts
- SmartPhones
- Wireless Systems
- Ethernet10/100/1000BaseT
Key features
- 260W peak pulse power (8/20μs)
- Low operating :3.3V
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage: nA leel
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- RoHS Compliant
