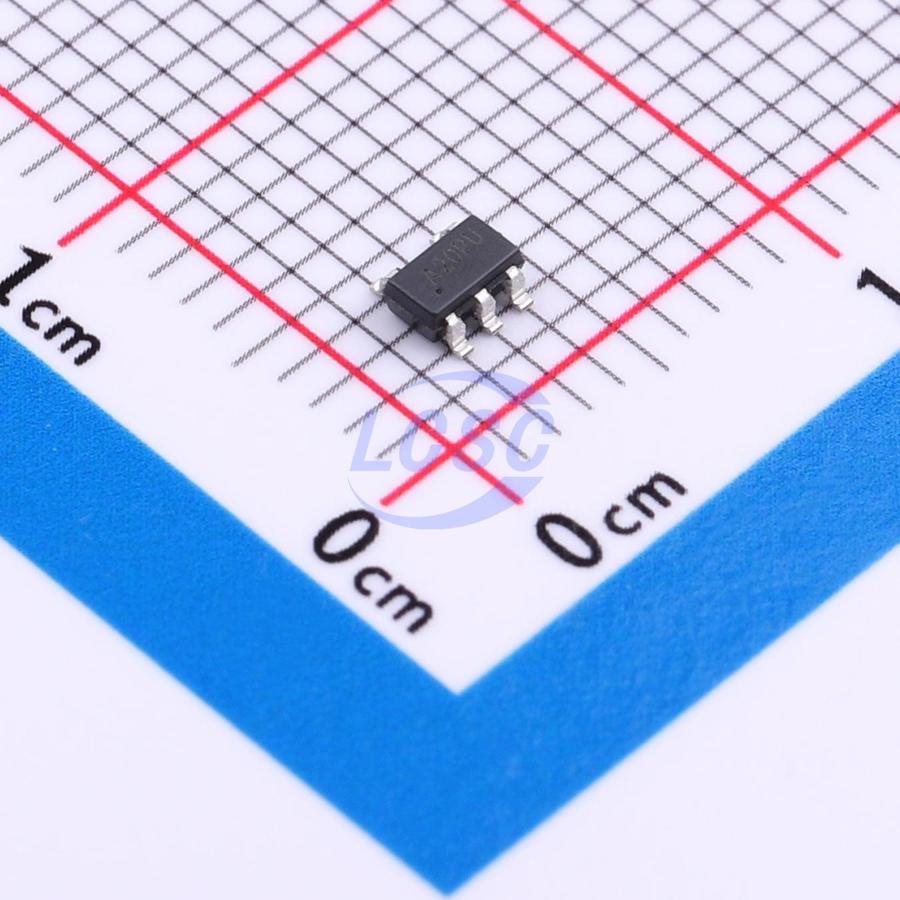

TPCMP251-S5TR
53uA 500uV Rail-to-rail output SOT-23-5 Comparators RoHS
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPCMP251-S5TR
- Store part #
- C31359591
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,050 in stock
#C31359591
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.24 | ₹136.20 |
| 50+ | ₹20.96 | ₹1,048.00 |
| 150+ | ₹18.26 | ₹2,739.00 |
| 500+ | ₹14.88 | ₹7,440.00 |
| 2,500+ | ₹13.39 | ₹33,475.00 |
| 5,000+ | ₹12.49 | ₹62,450.00 |
5 × ₹27.24
₹136.20
excl. GST
₹160.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPCMP251-S5TR
₹136.20 for 5 + GST
Specifications
- Features
- Built-in hysteresis;ESD protection
- Ib - Input Bias Current
- 30pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Propagation Delay(tpd)
- 120ns
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Hysteresis Voltage (Vhys)
- 6mV
- Quiescent Current(Iq)
- 53uA
- Input Offset Current(Ios)
- 2pA
- Vos - Input Offset Voltage
- 500uV
- Rail to Rail
- Rail-to-rail output
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
This device is a low-power, high-speed comparator with internal hysteresis. The common-mode input voltage range can extend beyond the supply rails by 100 mV. With only 50 μA quiescent current per channel, the device achieves a propagation delay of 120 ns, making it suitable for low-power applications. The internal input hysteresis eliminates output switching caused by input noise voltage. The device features a push-pull output supporting rail-to-rail output swing. Operating temperature range: -40°C ~ +125°C.
Applications
- Peak and zero-crossing detectors
- Threshold detector/discriminator
- Ground or supply line sensing
- Logic level translation
- Power supplies
Key features
- Supply voltage: 2.5 V ~ 5.5 V
- Low supply current: 50 μA per channel
- Propagation delay: 120 ns
- Internal hysteresis ensures clean switching
- Offset voltage: ±4 mV
- Input bias current: 30 pA (typical)
- Input common-mode range extends 100 mV beyond supply rails
- Push-pull output
