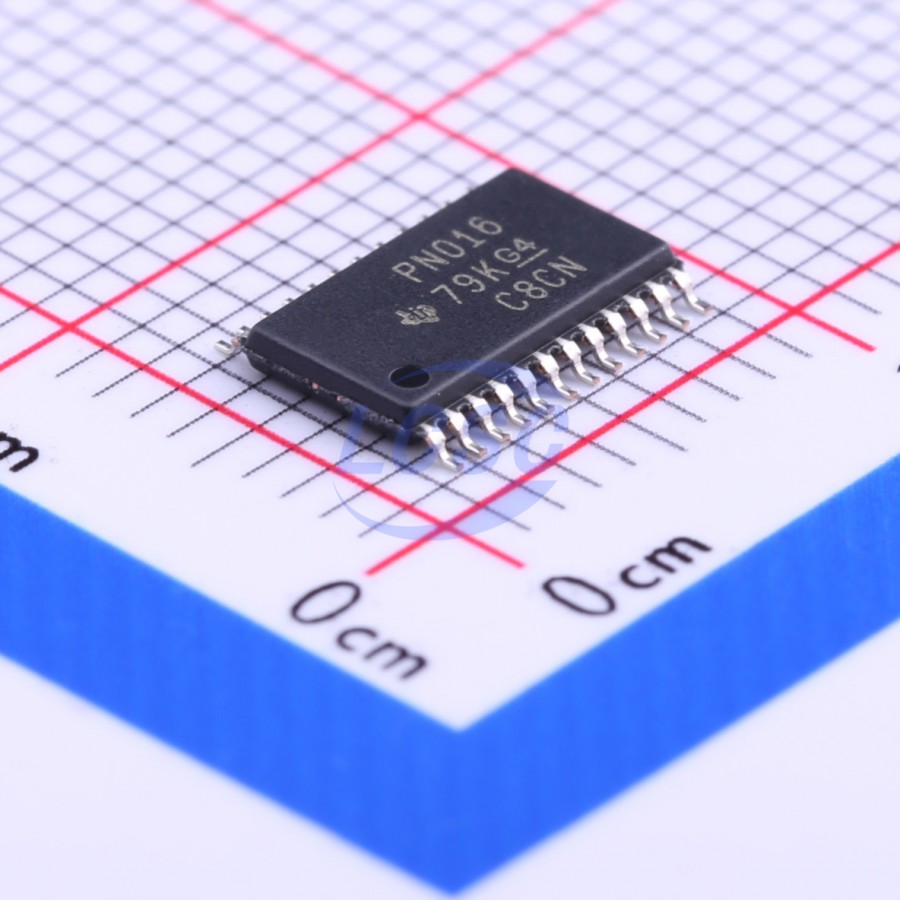

TPD12S016PWR
-40℃~+85℃ 3.4Gbps TSSOP-24 Specialized RoHS
HDMI Companion Chip with I²C Level Shifter, 12-Channel ESD Protection, and Current-Limited Load Switch
- Manufacturer
- TI
- Manufacturer part #
- TPD12S016PWR
- Store part #
- C201665
- Package / case
- TSSOP-24
- Category
- Specialized
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,177 in stock
#C201665
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹149.23 | ₹149.23 |
| 10+ | ₹125.04 | ₹1,250.40 |
| 30+ | ₹111.65 | ₹3,349.50 |
| 100+ | ₹96.54 | ₹9,654.00 |
| 500+ | ₹89.84 | ₹44,920.00 |
| 1,000+ | ₹86.82 | ₹86,820.00 |
1 × ₹149.23
₹149.23
excl. GST
₹176.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TPD12S016PWR
₹149.23 for 1 + GST
Specifications
- Interface
- I2C;HDMI
- Voltage Rating
- 4.5V~5.5V
- Features
- Enable/shutdown function
- Operating Temperature
- -40℃~+85℃
- Data Rate
- 3.4Gbps
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
Compliant with HDMI compatibility testing, no external components required; supports HDMI 1.4 data rates; compatible with Type D and Type C pin mappings; 8-channel ESD protection for four differential pairs with ultra-low differential capacitance matching (0.05pF); on-chip load switch with 55mA current limit on HDMI 5V_OUT pin; auto-directional sensing I²C level translator with single-shot circuit for driving long HDMI cables (750pF load); reverse drive protection on HDMI connector-side ports; integrated pull-up and pull-down resistors per HDMI specification; available in space-saving 24-pin RKT and 24-pin TSSOP packages.
Applications
- Mobile phones
- E-readers
- Portable media players
- Set-top boxes
Key features
- HDMI compatibility tested, no external components required
- IEC 61000-4-2 ESD protection ±8kV contact discharge
- Supports HDMI 1.4 data rates
- Compatible with Type D and Type C pin mappings
- 8-channel ESD protection for four differential pairs with ultra-low differential capacitance matching (0.05pF)
- On-chip load switch with 55mA current limit on HDMI 5V_OUT pin
- Auto-direction sensing I²C level translator with single-shot circuit for driving long HDMI cables (750pF load)
- Reverse drive protection on HDMI connector side port
- Integrated pull-up and pull-down resistors per HDMI specification
- Space-saving 24-pin RKT and 24-pin TSSOP packages
