TECH PUBLICDatasheet (PDF)

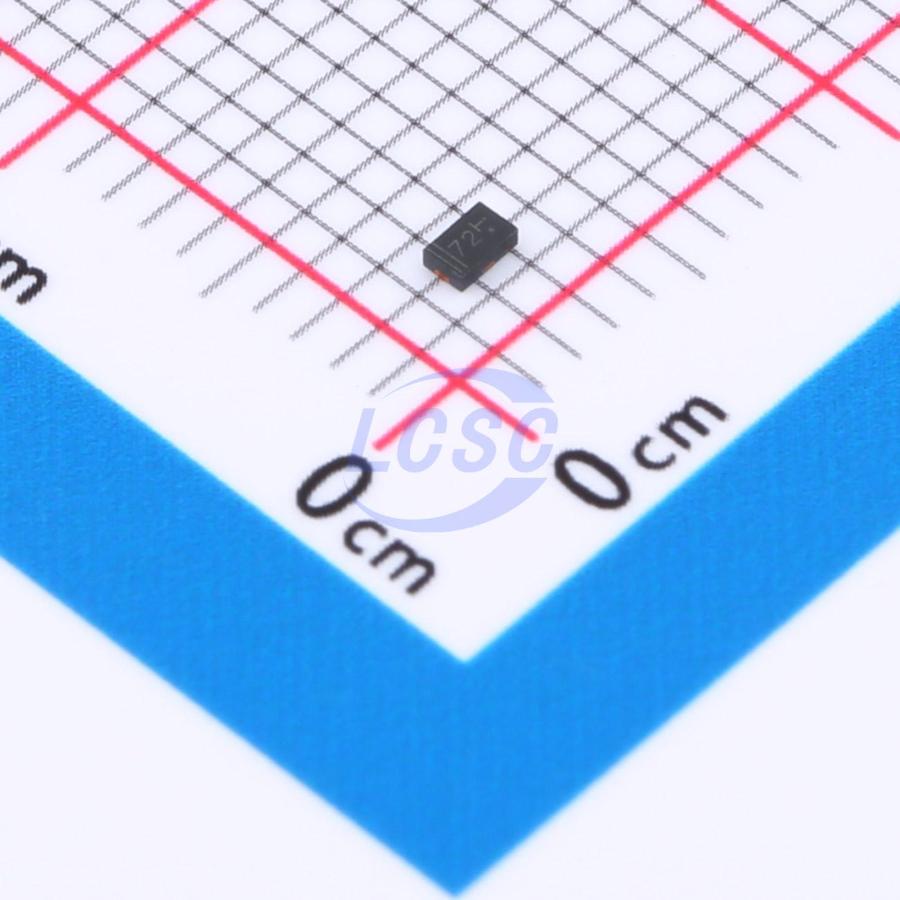

TPD12V0H1U2LP1610-7
25VC Clamp 60A@8/20us Ipp DFN1610-2
DFN1610-2RoHSActive
12VWM 25VC DFN1610-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD12V0H1U2LP1610-7
- Store part #
- C19829438
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C19829438
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.22 | ₹72.20 |
| 100+ | ₹5.72 | ₹572.00 |
| 300+ | ₹4.96 | ₹1,488.00 |
| 1,000+ | ₹4.39 | ₹4,390.00 |
| 5,000+ | ₹3.94 | ₹19,700.00 |
| 8,000+ | ₹3.70 | ₹29,600.00 |
10 × ₹7.22
₹72.20
excl. GST
₹85.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
TPD12V0H1U2LP1610-7
₹72.20 for 10 + GST
Specifications
- Clamping Voltage
- 25V
- Peak Pulse Current (Ipp)
- 60A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 14.5V
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
Applications
- Mobile Phones
- Battery Protection
- Power Line Protection
- Vbat pin for Mobile Devices
- Hand Held Portable Applications
Key features
- Ultra small package: 1.6×1.0×0.5 mm
- Protects one data or power line
- Ultra low leakage: nA level
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC61000-4-2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC61000-4-4 (EFT) 80A (5/50ns)
- IEC61000-4-5 (Lightning) 60A (8/20μs)
- RoHS Compliant
