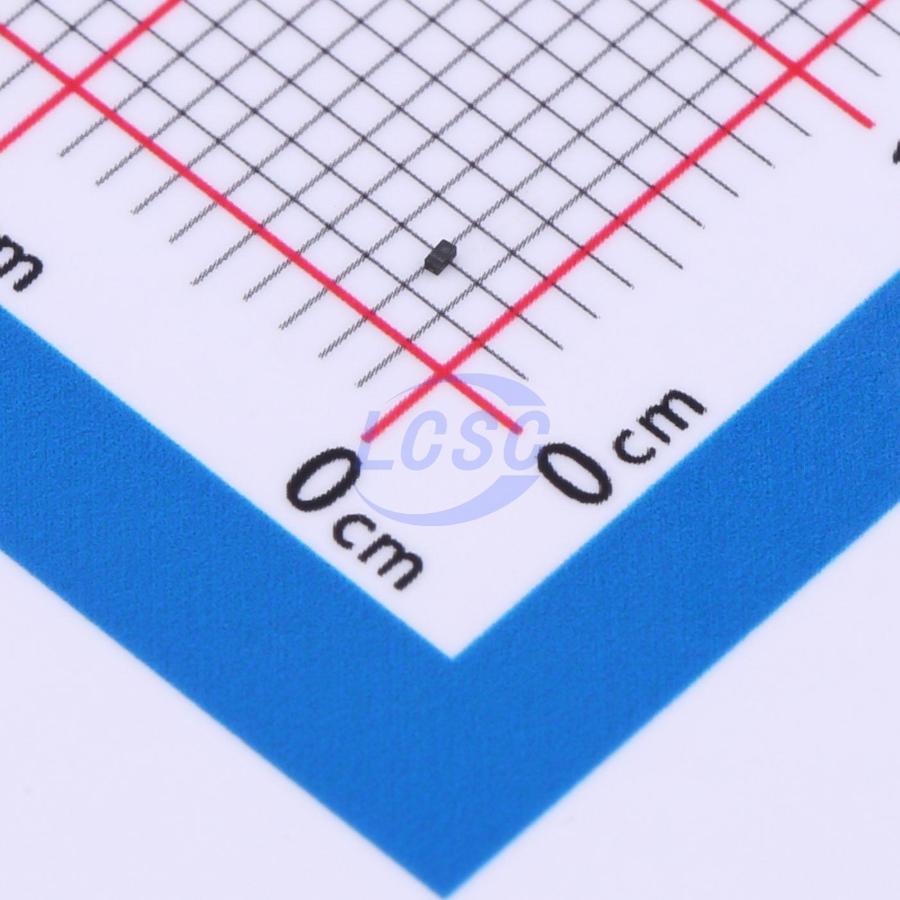

TPD1E0B04DPLR
19VC Clamp 1.7A@8/20us Ipp ESD DIODE X2-SON-2(0.3x0.6)
- Manufacturer
- TI
- Manufacturer part #
- TPD1E0B04DPLR
- Store part #
- C913830
- Package / case
- X2-SON-2(0.3x0.6)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,355 in stock
#C913830
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.32 | ₹116.60 |
| 50+ | ₹18.46 | ₹923.00 |
| 150+ | ₹16.09 | ₹2,413.50 |
| 500+ | ₹13.97 | ₹6,985.00 |
| 2,500+ | ₹13.39 | ₹33,475.00 |
| 5,000+ | ₹13.04 | ₹65,200.00 |
5 × ₹23.32
₹116.60
excl. GST
₹137.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
TPD1E0B04DPLR
₹116.60 for 5 + GST
Specifications
- Clamping Voltage
- 19V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 1.7A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 15W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.7V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Overview
The TPD1E0B04 is a bidirectional Transient Voltage Suppressor (TVS) ESD protection diode array, which is used to protect USB Type-C and Thunderbolt 3 circuits. The rated ESD shock dissipation value of the TPD1E0B04 is equal to the highest level specified in the IEC 61000-4-2 (Level 4) international standard. This device features an IO capacitance of 0.13 pF (per channel), making it suitable for protecting high-speed interfaces with speeds up to 20 Gbps, such as USB 3.1 Gen 2, Thunderbolt 3, and antenna interfaces. The low dynamic resistance and low clamping voltage provide system-level protection against transient events. The TPD1E0B04 is available in the industry-standard 0201 (DPL) package. The TPD1E0B04 device is a bidirectional ESD Protection Diode with ultra-low capacitance. This device can dissipate ESD strikes at the maximum level specified by the IEC 61000-4-2 International Standard (contact). The ultra-low capacitance makes this device ideal for protecting any super high-speed signal pins including Thunderbolt 3. The low capacitance allows for extremely low losses even at RF frequencies such as USB 3.1 Gen 2, Thunderbolt 3, or antenna applications.
Applications
- End devices
- Portable and desktop computers
- Mobile phones and tablets
- Set-top boxes
- TVs and monitors
- USB dongles
- Docking stations
- USB Type-C
- Thunderbolt 4
- USB 4.0 and lower versions
- HDMI 2.1 and lower versions
- DisplayPort 2.1 and lower versions
- PCI Express 5.0 and lower versions
- Antennas
Key features
- IEC61000-4-2 Level 4 (Contact) ESD protection
- ±8kV Contact discharge
- ±9kV Air-gap discharge
- IEC61000-4-4 EFT protection
- 80A (5/50ns)
- IEC61000-4-5 Surge protection
- 1.7A (8/20μs)
- IO capacitance: 0.13 to 0.15pF (Typical), 0.15 to 0.18pF (Maximum)
- DC breakdown voltage: 6.7V (Typical)
- Ultra-low leakage current: 10nA (Maximum)
- Low ESD clamping voltage
- High-speed interface support up to 60Gbps
- Low insertion loss: >30GHz (-3dB bandwidth)
- Industrial temperature range: -40°C to +125°C
- Ultra-small 0201 and 0402 packages
