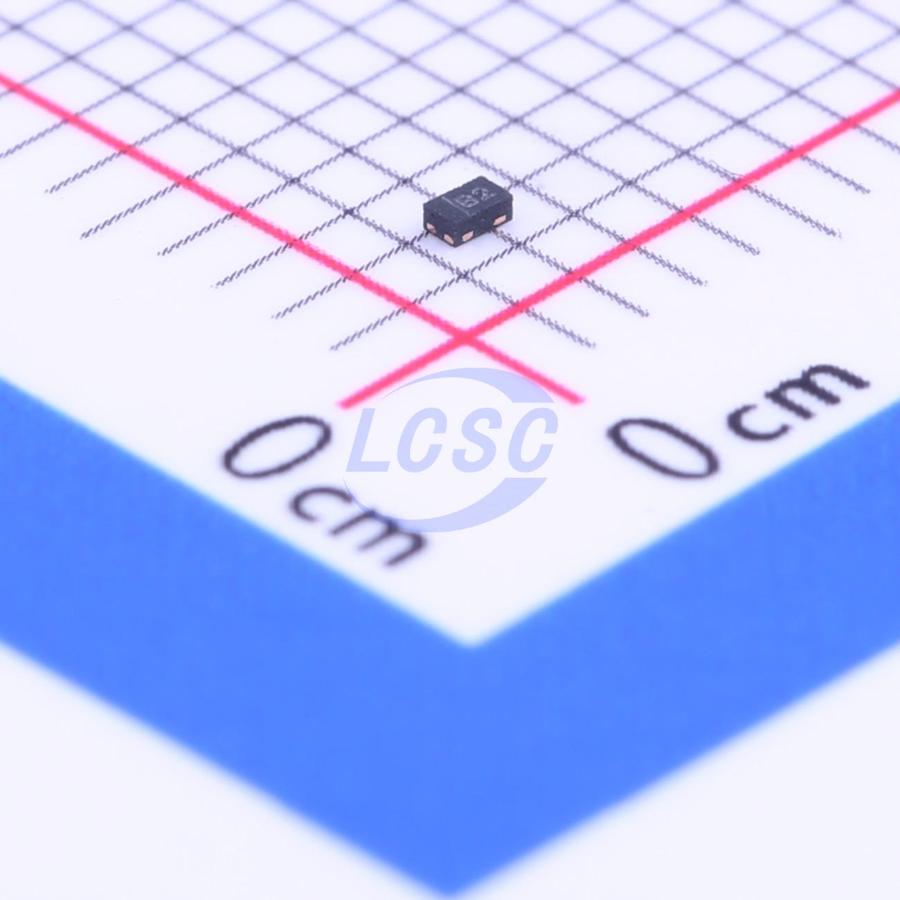

TPD1E10B06DPYR
14VC Clamp 6A@8/20us Ipp ESD DIODE X1-SON-2(0.6x1)
- Manufacturer
- TI
- Manufacturer part #
- TPD1E10B06DPYR
- Store part #
- C48260
- Package / case
- X1-SON-2(0.6x1)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,79,840 in stock
#C48260
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.64 | ₹92.80 |
| 200+ | ₹3.72 | ₹744.00 |
| 600+ | ₹3.31 | ₹1,986.00 |
| 2,000+ | ₹3.00 | ₹6,000.00 |
| 10,000+ | ₹2.87 | ₹28,700.00 |
| 20,000+ | ₹2.79 | ₹55,800.00 |
20 × ₹4.64
₹92.80
excl. GST
₹109.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPD1E10B06DPYR
₹92.80 for 20 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 90W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 9V;6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.004 g
Overview
TPD1E10B06 is a single-channel ESD TVS diode available in a compact 0402 package for space-constrained applications and the industry-standard SOD-523 package. This TVS protection device offers ±30kV contact ESD and ±30kV IEC air-gap protection, featuring an ESD clamp circuit with back-to-back TVS diodes to support bipolar or bidirectional signals. With 12pF line capacitance, this ESD protection diode is well-suited for applications supporting data rates up to 400Mbps.
Applications
- Portable devices
- Wearable devices
- Set-top boxes
- Electronic Point of Sale (EPOS)
- Appliances
- Building automation
- Audio lines
- Buttons
- General Purpose Input/Output (GPIO)
- SD interface
- USB ports
- Microphones
- Headphones
- Speakers
- Keyboards
Key features
- System-level ESD protection for low-voltage I/O interfaces
- IEC 61000-4-2 Level 4 ESD protection
- ±30kV contact discharge
- ±30kV air gap discharge
- IEC 61000-4-5 surge: 6A (8/20μs)
- I/O capacitance 12pF (typical)
- RDYN 0.4Ω (typical)
- DC breakdown voltage ±6V (minimum)
- 100nA ultra-low leakage current (maximum)
- 10V clamp voltage (maximum at IPP = 1A)
- Industrial temperature range: -40℃ to 125℃
- Compact 0402 package (1mm × 0.6mm × 0.5mm)
- Industry-standard SOD-523 package (0.8mm × 1.2mm)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RLSD92Q051C#C20968RUILON · DFN1006-2L | RUILON | DFN1006-2L | 4,950 | ₹1.94 · 4,950 in stock | View |
 | ESD5471X-ES#C22379605ElecSuper · DFN1006-2L | ElecSuper | DFN1006-2L | 9,700 | ₹1.33 · 9,700 in stock | View |
 | PESD5V0S1BLN-ES#C22379675ElecSuper · DFN1006-2L | ElecSuper | DFN1006-2L | 8,900 | ₹0.891 · 8,900 in stock | View |
 | ESDBL5V0Y1-ES#C22464598ElecSuper · DFN1006-2L | ElecSuper | DFN1006-2L | 9,850 | ₹1.77 · 9,850 in stock | View |
 | ESD8D5.0CB1T5G#C42420860ElecSuper · DFN1006-2L | ElecSuper | DFN1006-2L | 7,100 | ₹0.836 · 7,100 in stock | View |
