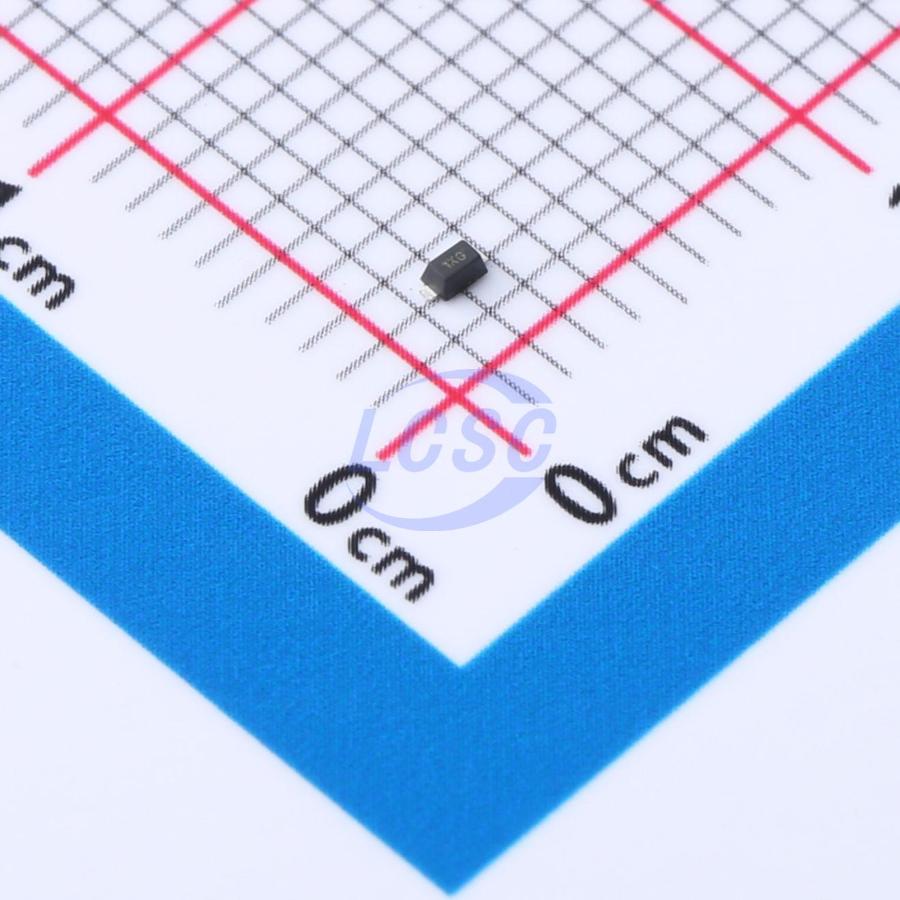

TPD1E10B06DYARQ1

The TPD1E10B06-Q1 device is a bidirectional TVS ESD protection diode that offers a small 0402 package suitable for space-constrained applications and the industry-standard leaded SOD-523 package to support automated optical inspection (AOI). The TPD1E10B06-Q1 is rated to dissipate ESD strikes higher than the maximum level specified in the IEC 61000-4-2 Level 4 international standard. This is because its ESD voltage can easily reach 5000V, which exceeds the voltage that can damage many integrated circuits. However, under extreme conditions, these voltages will rise significantly. For example, in a low-humidity environment, the voltage can exceed 20000V. Low dynamic resistance and low clamping voltage ensure system-level protection against transient events, providing sufficient protection for designs exposed to ESD events. The device also features a 12pF IO capacitance, making it ideal for audio lines, buttons, memory interfaces, or GPIOs. There is also a non-automotive qualified version of this device: TPD1E10B06.

Applications

• End equipment:
• Audio head units
• High-end audio systems
• External amplifiers
• Body control modules
• Gateways
• Telematics systems
• Camera modules
• Interfaces:
• Audio lines
• Buttons
• Memory interfaces
• GPIOs

Key features

• Compliant with AEC-Q101 standard
• IEC61000-4-2 Level 4 ESD protection
• ±30kV contact discharge
• ±30kV air-gap discharge
• ISO 10605 (330pF, 330Ω) ESD protection
• ±8kV contact discharge (DPY)
• ±15kV air-gap discharge (DPY)
• ±25kV contact discharge (DYA)
• ±25kV air-gap discharge (DYA)
• IEC61000-4-5 surge protection
• 6A (8μs/20μs)
• I/O capacitance: 12pF (typical)
• RDYN: 0.38Ω (typical)
• DC breakdown voltage: ±6V (minimum)
• Ultra-low leakage current: 100nA (maximum)
• Clamping voltage at 10V (typical at IPP = 1A)
• Industrial temperature range: -40°C to +125°C
• Space-saving 0402 form factor
• Industry-standard leaded SOD-523 package (1.6mm×0.8mm×0.65mm)
