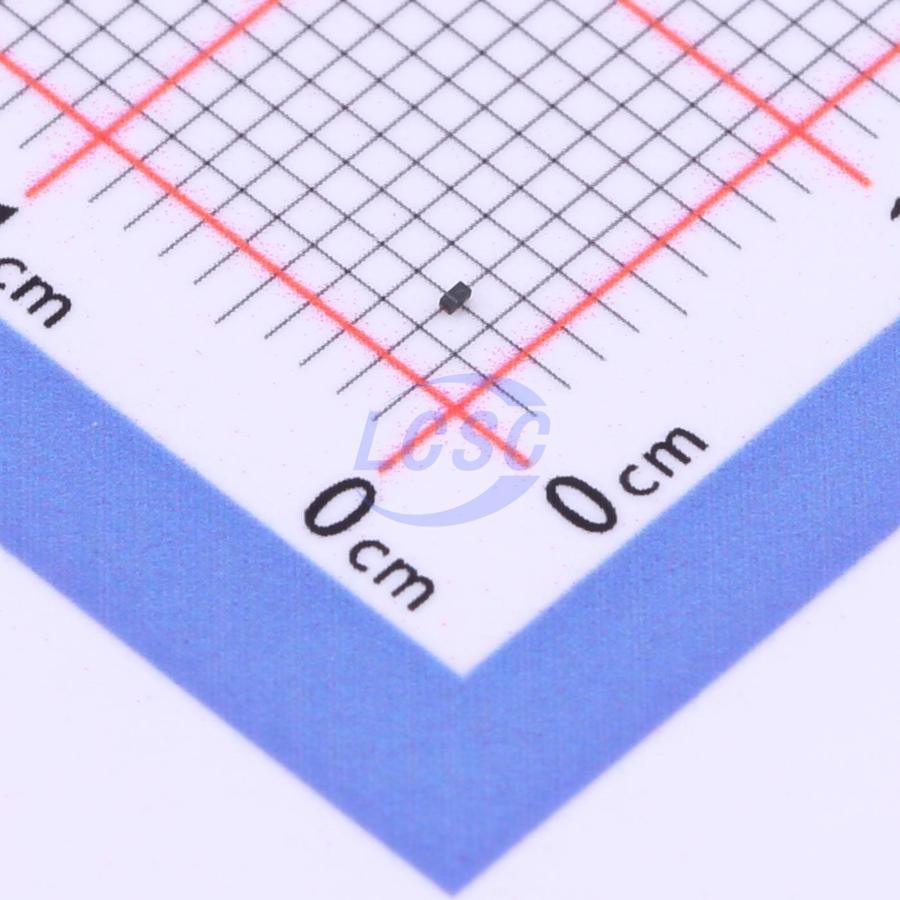

TPD1E6B06DPLR

The TPD1E6B06 is a single-channel TVS diode for ESD protection in a compact 0201 package. The TPD1E6B06 is rated for ESD impulse dissipation above the highest level specified in the IEC 61000-4-2 Level 4 international standard, with ±15kV contact discharge and ±15kV air-gap ESD protection. The device features a back-to-back TVS diode configuration to support bipolar or bidirectional signals. The 6pF line capacitance makes it suitable for transient voltage suppression protection across a wide range of applications, supporting data rates up to 800Mbps. Typical application interfaces for the TPD1E6B06 include audio lines (microphone, headphone, and speaker), SD interfaces, keyboards or other buttons, and the VBUS and ID pins of USB ports. The TPD1E6B06 adopts an industry-standard 0201 package, offering an ultra-compact footprint ideal for space-constrained end devices such as mobile phones, tablets, and wearables.

Applications

• End devices: mobile phones, tablets, wearables, remote controllers, electronic point of sale (EPOS)
• Interfaces: audio line, GPIO, buttons

Key features

• IEC 61000-4-2 Level 4 ESD protection
• ±15kV contact discharge
• ±15kV air gap discharge
• IEC 61000-4-5 surge: 3.8A (8/20μs)
• I/O capacitance: 6pF (typical)
• RDYN: 0.35Ω (typical)
• DC breakdown voltage: ±6V (minimum)
• Low leakage current 10nA (typical)
• Low ESD clamping voltage
• Industrial temperature range: -40℃ to 125℃
• Space-saving 0201 package (0.6mm×0.3mm×0.3mm)
