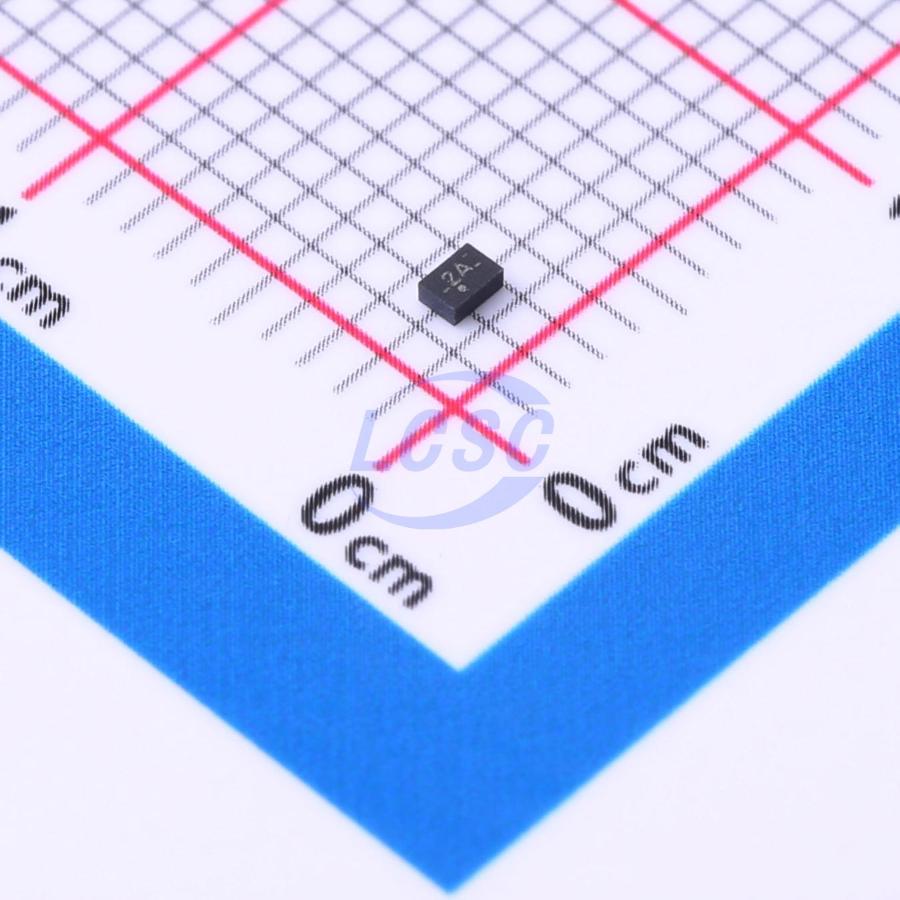

TPD2E001DRYR

nan

SON-6(1x1.4)ROHS3 CompliantActive

Low-Capacitance 2-Channel ESD-Protection for High-Speed Data Interfaces

Manufacturer: TI
Manufacturer part #: TPD2E001DRYR
Store part #: C379992
Package / case: SON-6(1x1.4)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,035 in stock

#C379992

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹42.61	₹42.61
10+	₹33.49	₹334.90
30+	₹28.92	₹867.60
100+	₹25.00	₹2,500.00
500+	₹23.92	₹11,960.00
1,000+	₹23.27	₹23,270.00

Quantity (min 1)

1 × ₹42.61

₹42.61

excl. GST

₹50.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

TPD2E001DRYR

₹42.61 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Number of Channels: 2
Voltage - Breakdown: 11V
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 1nA
Reverse Stand-Off Voltage (Vrwm): 5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.051 g

Overview

The TPD2E001 is a two-channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array. The TPD2E001 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 Level 4 international standard. The DRS package (3.00 mm × 3.00 mm) is also available as a non-magnetic package for medical imaging applications.

Applications

USB 2.0
Ethernet
FireWire
LVDS
SVGA Video Connections
Glucose Meters
Medical Imaging

Key features

IEC 61000-4-2 ESD Protection (Level 4) ±8-kV Contact Discharge ±15-kV Air-Gap Discharge
IO Capacitance: 1.5 pF (Typ)
Low Leakage Current: 1 nA (Maximum)
Low Supply Current: 1 nA
0.9 V to 5.5 V Supply-Voltage Range
Space-Saving DRL, DRY, and QFN Package Options
Alternate 3, 4, 6-Channel options Available: TPD3E001, TPD4E001, TPD6E001
