TIDatasheet (PDF)

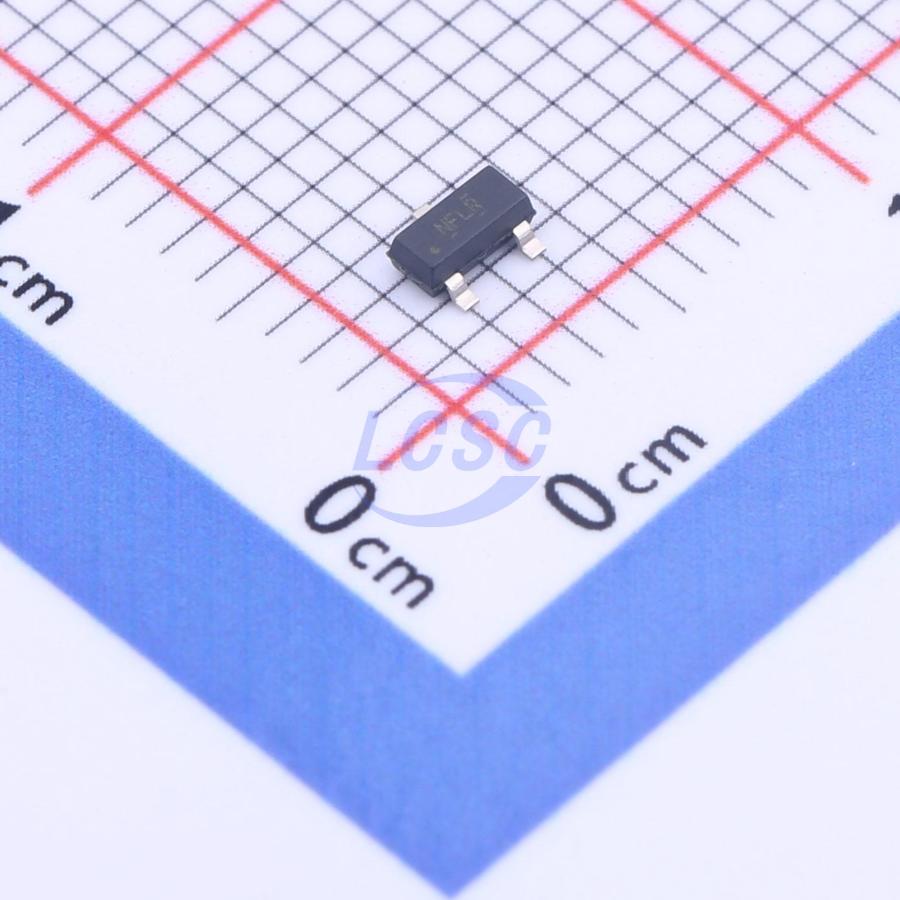

TPD2E009DBZR
8VC Clamp ESD DIODE SOT-23
SOT-23ROHS3 CompliantActive
2-Channel ESD Solution for High-Speed (6-Gbps) Differential Interface
- Manufacturer
- TI
- Manufacturer part #
- TPD2E009DBZR
- Store part #
- C2871371
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,470 in stock
#C2871371
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.88 | ₹229.40 |
| 50+ | ₹37.07 | ₹1,853.50 |
| 150+ | ₹32.77 | ₹4,915.50 |
| 500+ | ₹28.93 | ₹14,465.00 |
| 3,000+ | ₹27.88 | ₹83,640.00 |
| 6,000+ | ₹27.25 | ₹1,63,500.00 |
5 × ₹45.88
₹229.40
excl. GST
₹270.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD2E009DBZR
₹229.40 for 5 + GST
Specifications
- Clamping Voltage
- 8V
- Operating Temperature
- -40℃~+85℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 45W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 7V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
