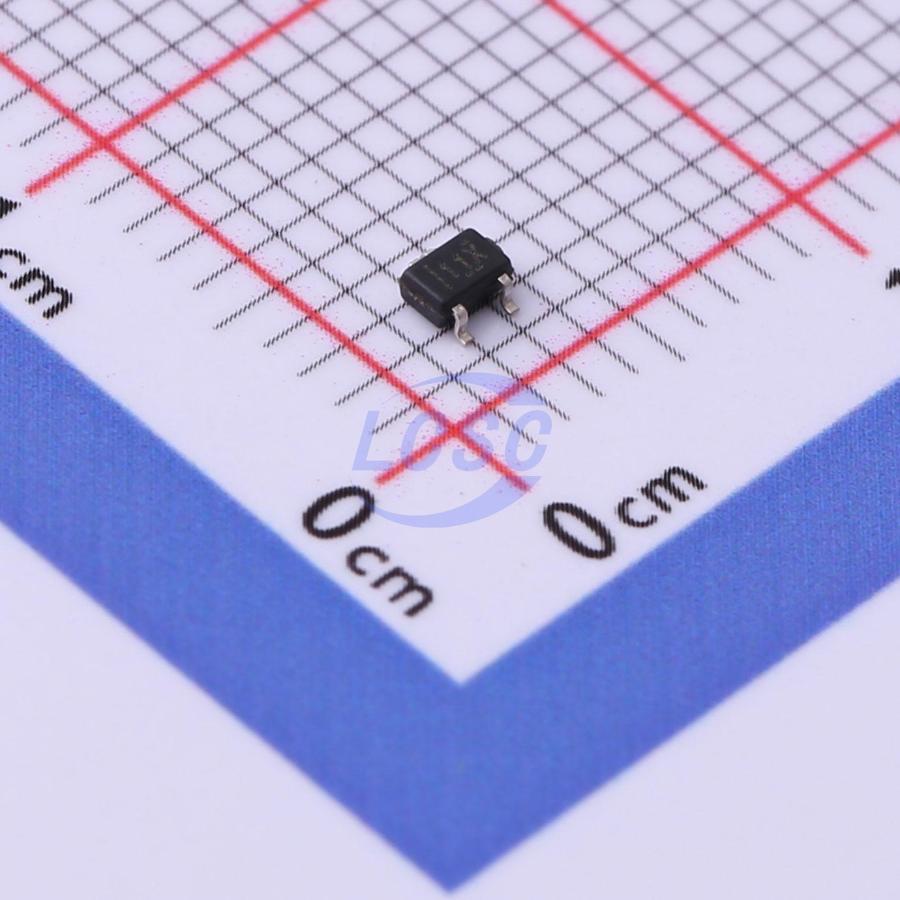

TPD2E2U06QDCKRQ1
12.4VC 4VC Clamp 5.5A@8/20us Ipp ESD DIODE SC-70-3
- Manufacturer
- TI
- Manufacturer part #
- TPD2E2U06QDCKRQ1
- Store part #
- C915089
- Package / case
- SC-70-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,260 in stock
#C915089
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.54 | ₹177.70 |
| 50+ | ₹28.13 | ₹1,406.50 |
| 150+ | ₹24.52 | ₹3,678.00 |
| 500+ | ₹21.29 | ₹10,645.00 |
| 3,000+ | ₹20.40 | ₹61,200.00 |
| 6,000+ | ₹19.86 | ₹1,19,160.00 |
5 × ₹35.54
₹177.70
excl. GST
₹209.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD2E2U06QDCKRQ1
₹177.70 for 5 + GST
Specifications
- Clamping Voltage
- 12.4V;4V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 5.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 75W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 8.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
The TPD2E2U06-Q1 is a transient voltage suppressor (TVS) electrostatic discharge protection diode array with low capacitance. The rated ESD shock dissipation value of this dual-channel ESD protection diode is higher than the highest level specified in the IEC 61000-4-2 international standard. The TPD2E2U06-Q1 has a 1.5pF line capacitance and is well-suited for protecting interfaces such as USB 2.0, Ethernet, LVDS, antennas, and I2C.
Applications
- End Devices:
- Audio Head Unit
- Rear Seat Entertainment System
- In-Vehicle Communication System
- Navigation Module
- Media Interface
- Interfaces:
- USB 2.0
- Ethernet
- Antenna
- LVDS
- I²C
Key features
- AEC-Q101 compliant
- IEC 61000-4-2 Level 4 ESD protection
- ±25 kV (contact discharge)
- ±30 kV (air gap discharge)
- ISO 10605 (330 pF, 330 Ω) ESD protection
- ±20 kV (contact discharge)
- ±25 kV (air gap discharge)
- Input capacitance 1.5 pF (typical)
- DC breakdown voltage 6.5 V (minimum)
- Ultra-low leakage current 10 nA (maximum)
- Low ESD clamping voltage
- Industrial operating temperature range: -40°C to +125°C
- Compact DBZ and DCK packages for easy routing
