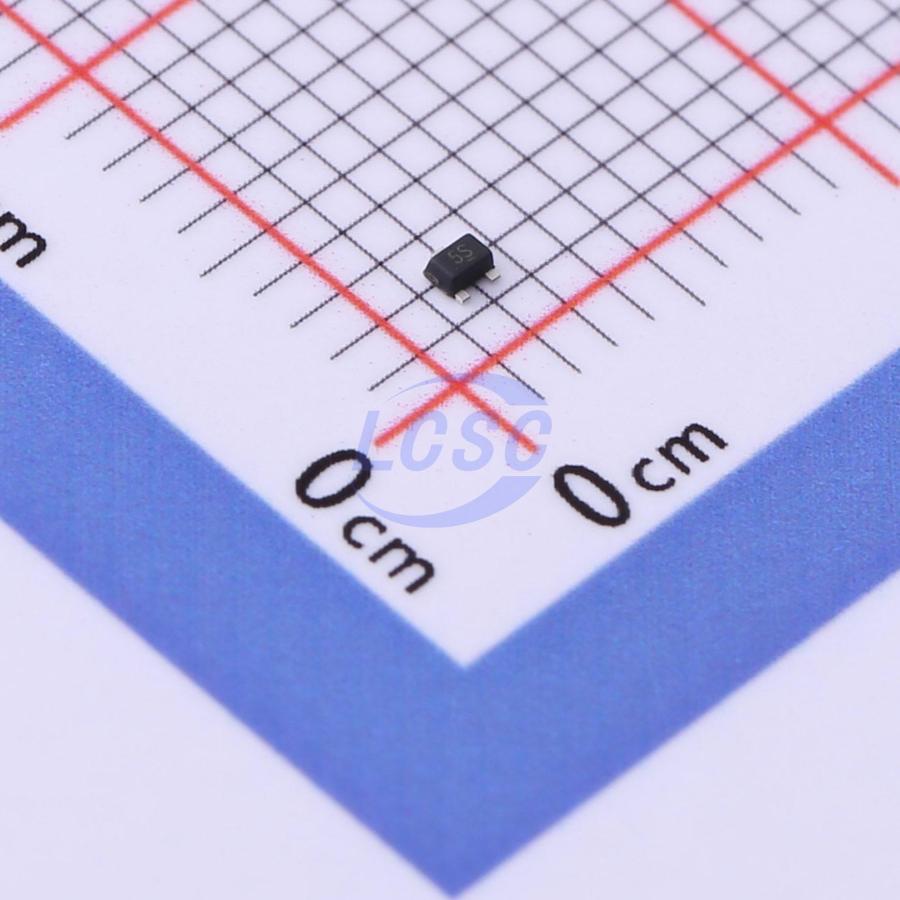

TPD2EUSB30ADRTR TECH PUBLIC

TPD2EUSB30ADRTR

14VC Clamp ESD DIODE SOT(9x3)

SOT(9x3)RoHSActive

ESD DIODE 3.3VWM 14VC SOT(9x3)

Manufacturer: TECH PUBLIC
Manufacturer part #: TPD2EUSB30ADRTR
Store part #: C3011197
Package / case: SOT(9x3)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,045 in stock

#C3011197

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
5+	₹18.34	₹91.70
50+	₹14.42	₹721.00
150+	₹12.25	₹1,837.50
500+	₹10.94	₹5,470.00
2,500+	₹9.82	₹24,550.00
5,000+	₹9.21	₹46,050.00

Quantity (min 5, multiples of 5)

5 × ₹18.34

₹91.70

excl. GST

₹108.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 8,000 per reel

TPD2EUSB30ADRTR

₹91.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 14V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 50W@8/20us
Number of Channels: 2
Voltage - Breakdown: 4.5V
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 8,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.012 g

Overview

Applications

Notebooks
Set-top boxes
DVD players
Media players
Portable computers

Key features

Supports USB 3.0 data rates (5 Gbps)
Ultra low capacitance: 0.4pF typical I/O to GND
Ultralow leakage: nA level
Low operating voltage: 3.3V
Uni-directional TVS Diode Array
Low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±25 kV Contact discharge: ±20 kV
IEC 61000-4-5 (Lightning) 4A (8/20 μs)
IEC 61000-4-4 (EFT) 40A (5/50ns)
ROHS Compliant
