TECH PUBLICDatasheet (PDF)

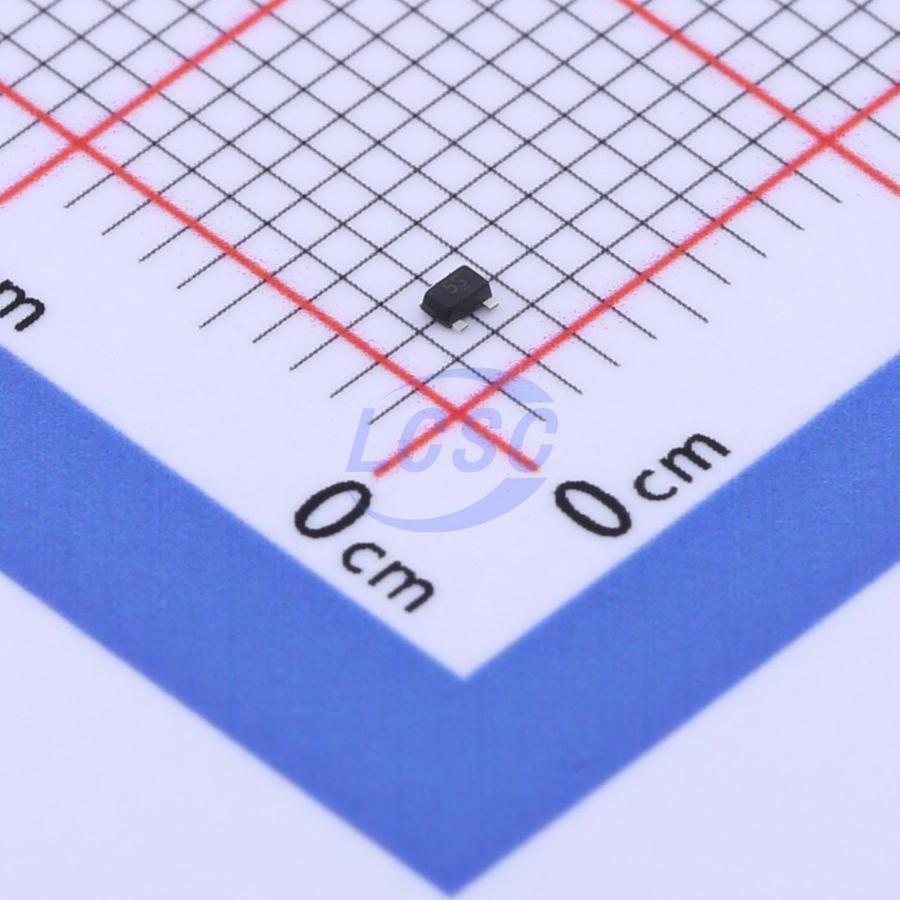

TPD2EUSB30ADRTR-TP
18VC Clamp TVS DIODE SOT(9x3)
SOT(9x3)RoHSActive
TVS DIODE 3.3VWM 18VC SOT(9x3)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD2EUSB30ADRTR-TP
- Store part #
- C2987043
- Package / case
- SOT(9x3)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,145 in stock
#C2987043
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.48 | ₹122.40 |
| 50+ | ₹19.66 | ₹983.00 |
| 150+ | ₹17.61 | ₹2,641.50 |
| 500+ | ₹13.48 | ₹6,740.00 |
| 2,500+ | ₹12.33 | ₹30,825.00 |
| 5,000+ | ₹11.64 | ₹58,200.00 |
5 × ₹24.48
₹122.40
excl. GST
₹144.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
TPD2EUSB30ADRTR-TP
₹122.40 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Peak Pulse Power Dissipation (Ppp)
- 50W@8/20us
- Voltage - Breakdown
- 4.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Overview
Applications
- Notebooks
- Set-top boxes
- DVD players
- Media players
- Portable computers
Key features
- Supports USB3.0 data rates (5Gbps)
- Ultralow capacitance: 0.4pF typical/O to GND
- Ultralow leakage: nA level
- Low operating voltage: 3.3V
- Uni-directional TVS Diode Array
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±18kV
- IEC61000-4-5 (Lightning) 3.3A (8/20μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- ROHS Compliant
