TECH PUBLICDatasheet (PDF)

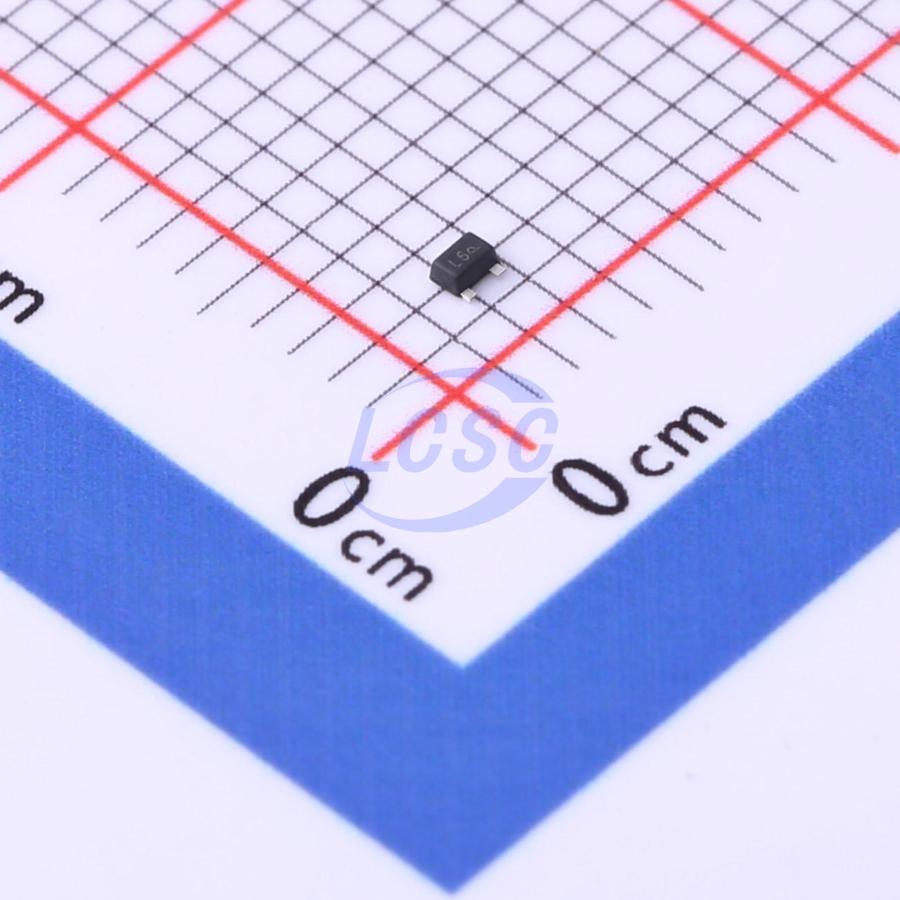

TPD2EUSB30DRTR-TP
18VC Clamp TVS DIODE SOT-723
SOT-723RoHSActive
TVS DIODE 5.5VWM 18VC SOT-723
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD2EUSB30DRTR-TP
- Store part #
- C2844720
- Package / case
- SOT-723
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,150 in stock
#C2844720
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.89 | ₹129.45 |
| 50+ | ₹20.07 | ₹1,003.50 |
| 150+ | ₹17.58 | ₹2,637.00 |
| 500+ | ₹14.47 | ₹7,235.00 |
| 2,500+ | ₹13.08 | ₹32,700.00 |
| 5,000+ | ₹12.25 | ₹61,250.00 |
5 × ₹25.89
₹129.45
excl. GST
₹152.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
TPD2EUSB30DRTR-TP
₹129.45 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 50W@8/20us
- Voltage - Breakdown
- 7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.011 g
Overview
Applications
- Notebooks
- Set-top boxes
- DVD players
- Media players
- Portable computers
Key features
- Supports USB 3.0 data rates (5 Gbps)
- Ultralow capacitance: 0.4pF typical I/O to GND
- Ultralow leakage: nA level
- Low operating voltage: 5.5V
- Uni-directional TVS Diode Array
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±18kV
- IEC61000-4-5 (Lightning) 3.3A (8/20μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- ROHS Compliant
