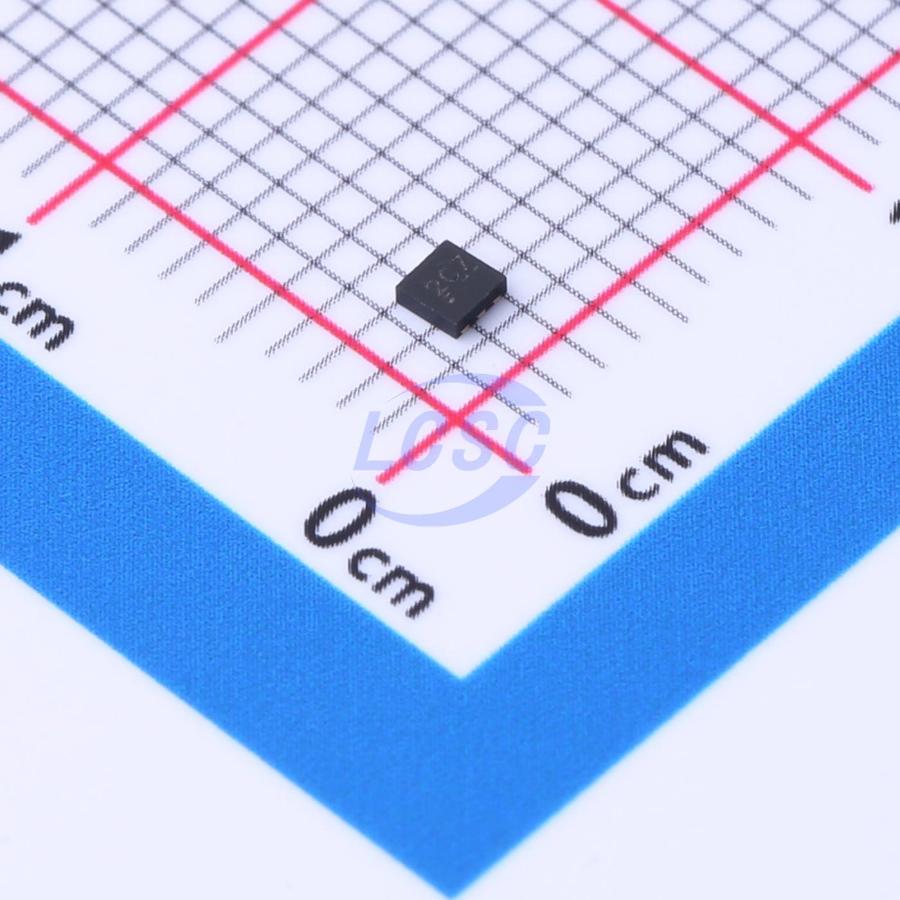

TPD4E001DPKR
17VC Clamp 5.5A@8/20us Ipp ESD DIODE DFN-6(1.6x1.6)
ESD DIODE 5.5VWM 17VC DFN-6(1.6x1.6)
- Manufacturer
- TI
- Manufacturer part #
- TPD4E001DPKR
- Store part #
- C1973412
- Package / case
- DFN-6(1.6x1.6)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C1973412
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.06 | ₹67.06 |
| 10+ | ₹56.97 | ₹569.70 |
| 30+ | ₹52.02 | ₹1,560.60 |
| 100+ | ₹47.51 | ₹4,751.00 |
| 500+ | ₹46.44 | ₹23,220.00 |
| 1,000+ | ₹45.58 | ₹45,580.00 |
1 × ₹67.06
₹67.06
excl. GST
₹79.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TPD4E001DPKR
₹67.06 for 1 + GST
Specifications
- Clamping Voltage
- 17V
- Operating Temperature
- -40℃~+85℃
- Peak Pulse Current (Ipp)
- 5.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 11V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.014 g
Overview
The TPD4E001 is a four-channel Transient Voltage Suppressor (TVS) based on an Electrostatic Discharge (ESD) protection diode array. The rated ESD shock dissipation value of the TPD4E001 reaches the highest level specified in the international standard IEC 61000-4-2 (Level 4). This device has an IO capacitance of 1.5 pF per channel, making it highly suitable for use in high-speed data IO interfaces. It features an ultra-low leakage current (maximum <1 nA), thus being suitable for precise analog measurements in applications such as blood glucose meters and heart rate monitors.
Applications
- USB 2.0
- Ethernet
- FireWire Serial Bus
- LVDS
- SVGA Video Connections
- Glucose Meters
Key features
- IEC 61000 - 4 - 2 ESD Protection (Level 4) - ±8kV Contact Discharge - ±15kV Air - Gap Discharge
- 5.5A Peak Pulse Current (8/20μs Pulse)
- IO Capacitance: 15pF (Typical)
- Low Leakage Current: 1nA (Maximum)
- Low Supply Current: 1nA
- 0.9V to 5.5V Supply - Voltage Range
- Space - Saving DRL, DBV, DCK, DPK, and DRS Package Options
- Alternate 2, 3, 6 - Channel options Available: TPD2E001, TPD3E001, TPD6E001
