TECH PUBLICDatasheet (PDF)

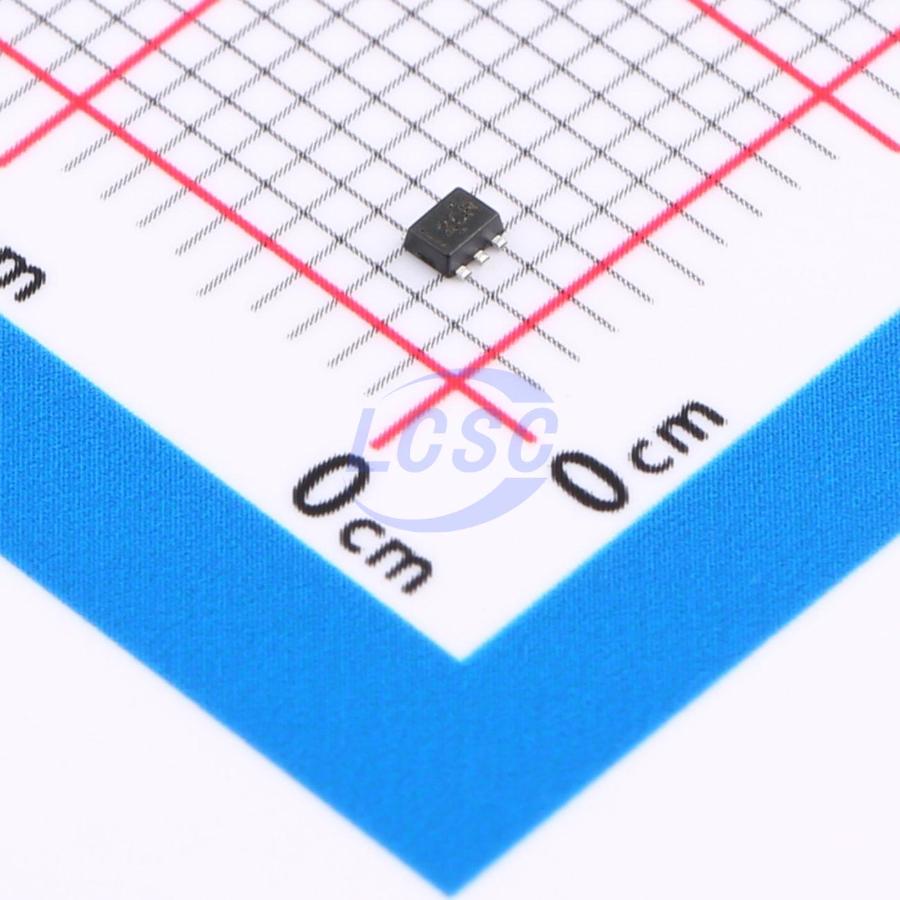

TPD4E001DRLR
nan
SOT-563RoHSActive
5.5VWM 15VC SOT-563
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD4E001DRLR
- Store part #
- C2987155
- Package / case
- SOT-563
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,350 in stock
#C2987155
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.35 | ₹76.75 |
| 50+ | ₹12.48 | ₹624.00 |
| 150+ | ₹11.05 | ₹1,657.50 |
| 500+ | ₹9.98 | ₹4,990.00 |
| 2,500+ | ₹8.14 | ₹20,350.00 |
| 4,000+ | ₹7.70 | ₹30,800.00 |
5 × ₹15.35
₹76.75
excl. GST
₹90.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPD4E001DRLR
₹76.75 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Applications
- USB 2.0 and USB 3.0 Ports
- USB OTG
- Digital video interface (DVI)
- Monitor and Flat Panel Displays
- PCI Express and Serial SATA Ports
- Gigabit Ethernet
Key features
- Ultra low capacitance: 1.5pF(Max)
- Ultralow leakage: nA level
- Low operating voltage: 5.5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- ROHS Compliant
