TIDatasheet (PDF)

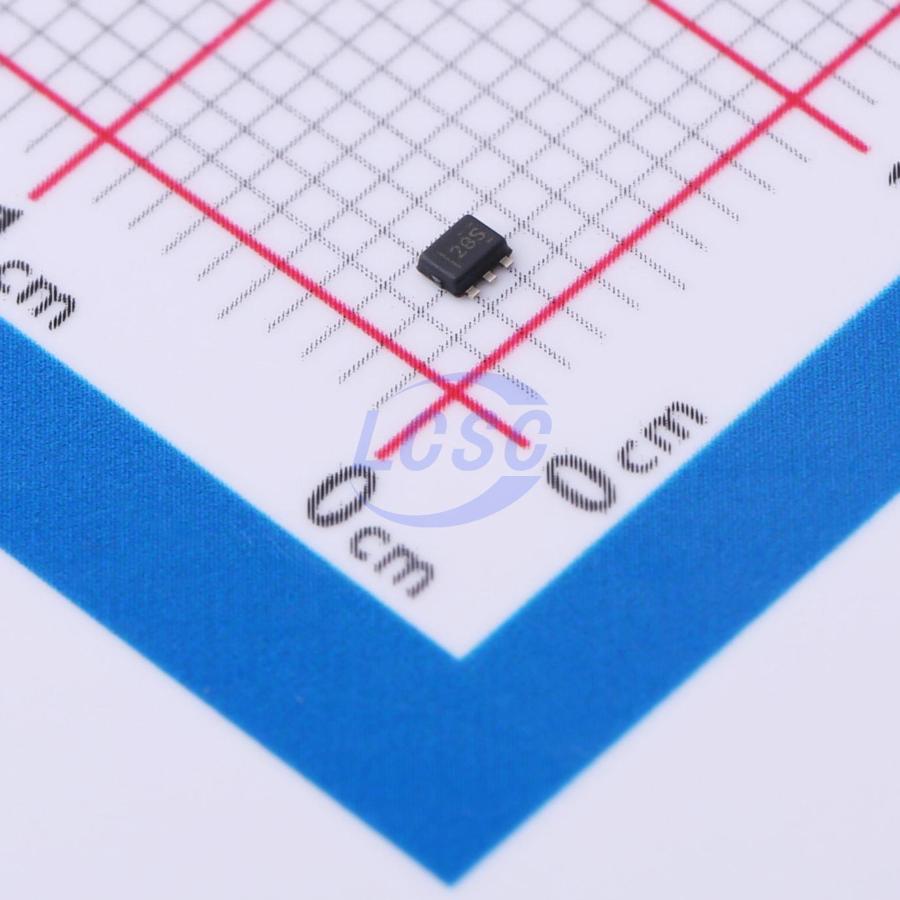

TPD4E002DRLR
2.5A@8/20us Ipp TVS DIODE SOT-5
SOT-5ROHS3 CompliantActive
TVS DIODE 3VWM SOT-5
- Manufacturer
- TI
- Manufacturer part #
- TPD4E002DRLR
- Store part #
- C1847654
- Package / case
- SOT-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C1847654
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.68 | ₹198.40 |
| 50+ | ₹31.46 | ₹1,573.00 |
| 150+ | ₹27.94 | ₹4,191.00 |
| 500+ | ₹23.55 | ₹11,775.00 |
| 2,500+ | ₹21.60 | ₹54,000.00 |
| 4,000+ | ₹20.43 | ₹81,720.00 |
5 × ₹39.68
₹198.40
excl. GST
₹234.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPD4E002DRLR
₹198.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 2.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 25W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 7.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
The TPD4E002 device is a transient voltage suppressor (TVS) designed to protect up to four lines against electrostatic discharge (ESD) transients. The monolithic circuit design allows superior capacitance matching between the channels and reduced crosstalk. This device is ideal for applications where both reduced line capacitance and board space - saving are required.
Applications
- Computers
- Printers
- Communication Systems
- Cellular Phones
- Video Equipment
Key features
- IEC 61000 - 4 - 2 ESD Protection
- ±15 - kV IEC 61000 - 4 - 2 Contact Discharge
- IEC 61000 - 4 - 5 Surge Protection
- 2.5 - A Peak Pulse Current (8/20 - µs Pulse)
- ANSI/ESDA/JEDEC JS - 001
- ±15 - kV Human Body Model (HBM)
- Four Unidirectional Voltage Suppression Diodes for use in ESD Protection
- I/O Breakdown Voltage, VBR = 6.1 V (Minimum)
- I/O Capacitance 11 pF (Typical)
- Low Leakage Current <100 nA
- Very Small Printed - Circuit Board (PCB) Area <2.6 mm²
- High Integration
- Suitable for High - Density Boards
