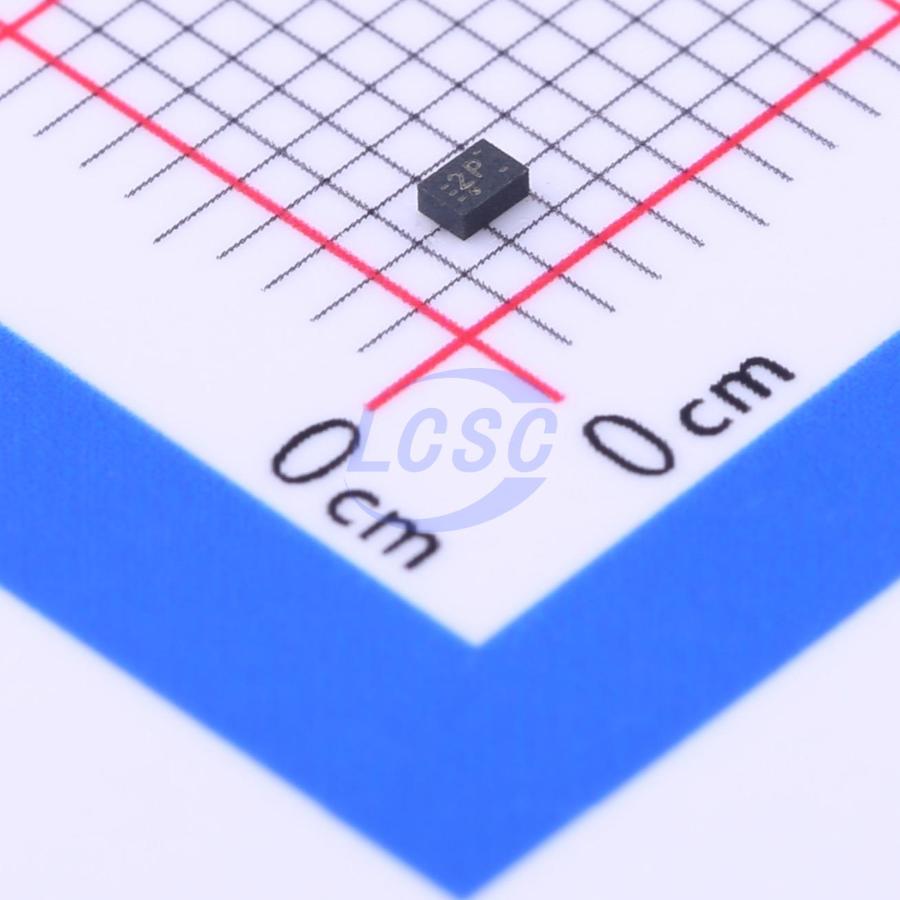

TPD4E004DRYR
nan
4-Channel ESD-Protection Array For High-Speed Data Interfaces
- Manufacturer
- TI
- Manufacturer part #
- TPD4E004DRYR
- Store part #
- C97503
- Package / case
- SON-6(1x1.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,119 in stock
#C97503
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.66 | ₹120.66 |
| 10+ | ₹96.05 | ₹960.50 |
| 30+ | ₹83.85 | ₹2,515.50 |
| 100+ | ₹71.65 | ₹7,165.00 |
| 500+ | ₹64.47 | ₹32,235.00 |
| 1,000+ | ₹60.77 | ₹60,770.00 |
1 × ₹120.66
₹120.66
excl. GST
₹142.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TPD4E004DRYR
₹120.66 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- Four channels
- Voltage - Breakdown
- 8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
The TPD4E004 is a low-capacitance transient voltage suppression (TVS) device. TPD4E004 is designed to protect sensitive electronics attached to communication lines from electrostatic discharge (ESD). Each of the four channels consists of a pair of diodes that steer ESD current pulses to VCC or GND. The TPD4E004 protects against ESD pulses up to ±15-kV Human-Body Model (HBM) and, as specified in IEC 61000-4-2, ±8-kV contact discharge and ±12-kV air-gap Discharge. This device has 1.6-pF of capacitance per channel, making it ideal for use in high-speed data IO interfaces. The TPD4E004 is a quad-ESD structure designed for USB, ethernet, and other high-speed applications.
Applications
- USB Ethernet FireWire
- Videos
- Cell Phones
- SVGA Video Connections Glucose Meters
Key features
- IEC 61000-4-2 ESD Protection ±8-kV IEC 61000-4-2 Contact Discharge ±12-kV IEC 61000-4-2 Air-Gap Discharge
- ANSI/ESDA/JEDEC JS-001
- ±15-kV Human Body Model (HBM)
- Low 1.6-pF Input Capacitance
- 0.9-V to 5.5-V Supply Voltage Range
- 4-Channel Device
- Space-Saving SON (DRY) Package
