TECH PUBLICDatasheet (PDF)

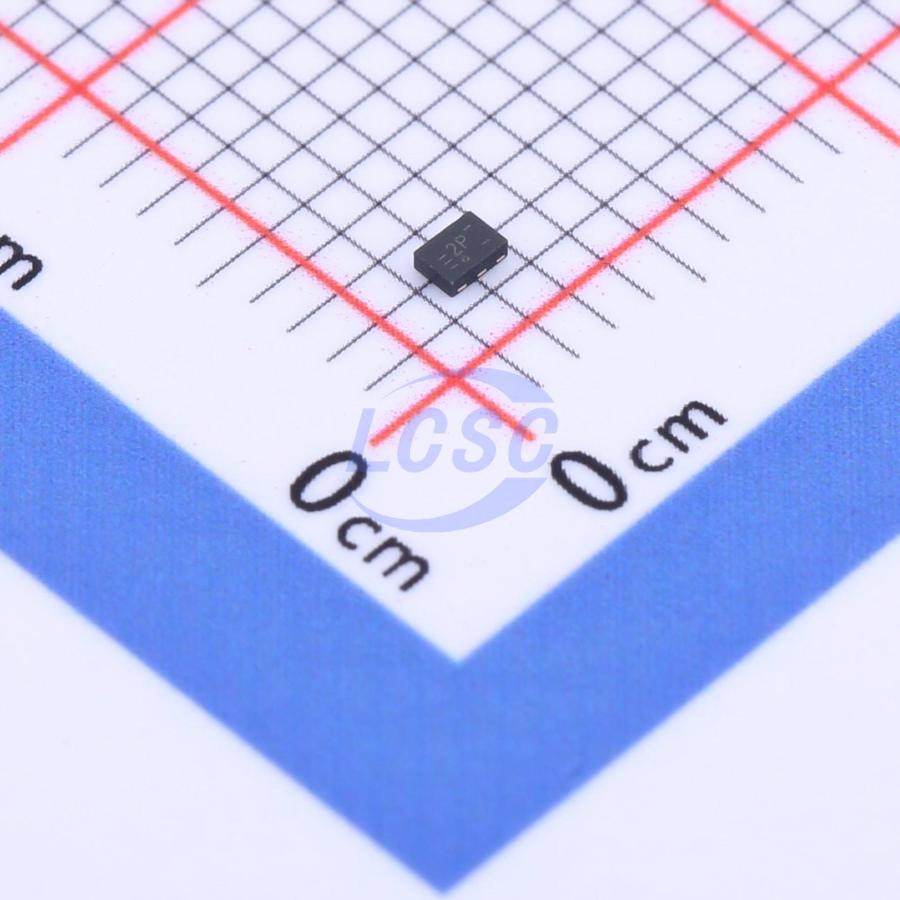

TPD4E004DRYR-TP
15VC Clamp ESD DIODE SON-6(1x1.5)
SON-6(1x1.5)RoHSActive
ESD DIODE 5.5VWM 15VC SON-6(1x1.5)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD4E004DRYR-TP
- Store part #
- C2937000
- Package / case
- SON-6(1x1.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,655 in stock
#C2937000
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.21 | ₹136.05 |
| 50+ | ₹21.74 | ₹1,087.00 |
| 150+ | ₹19.40 | ₹2,910.00 |
| 500+ | ₹16.46 | ₹8,230.00 |
| 2,500+ | ₹13.39 | ₹33,475.00 |
| 5,000+ | ₹12.61 | ₹63,050.00 |
5 × ₹27.21
₹136.05
excl. GST
₹160.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TPD4E004DRYR-TP
₹136.05 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6.5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
Applications
- USB 2.0 and USB 3.0 Ports
- USB OTG
- Digital video interface(DVI)
- Monitor and Flat Panel Displays
- PCI Express and Serial SATA Ports
- Gigabit Ethernet
- IEEE1394 firewire ports
- Consumer products (STB, DVD, DSC, DVC...)
Key features
- Ultra low capacitance: 1.5pF(Max)
- Ultra low leakage: nA level
- Low operating voltage: 5.5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2(ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000 - 4 - 4(EFT)40A(5/50ns)
- ROHS Compliant
