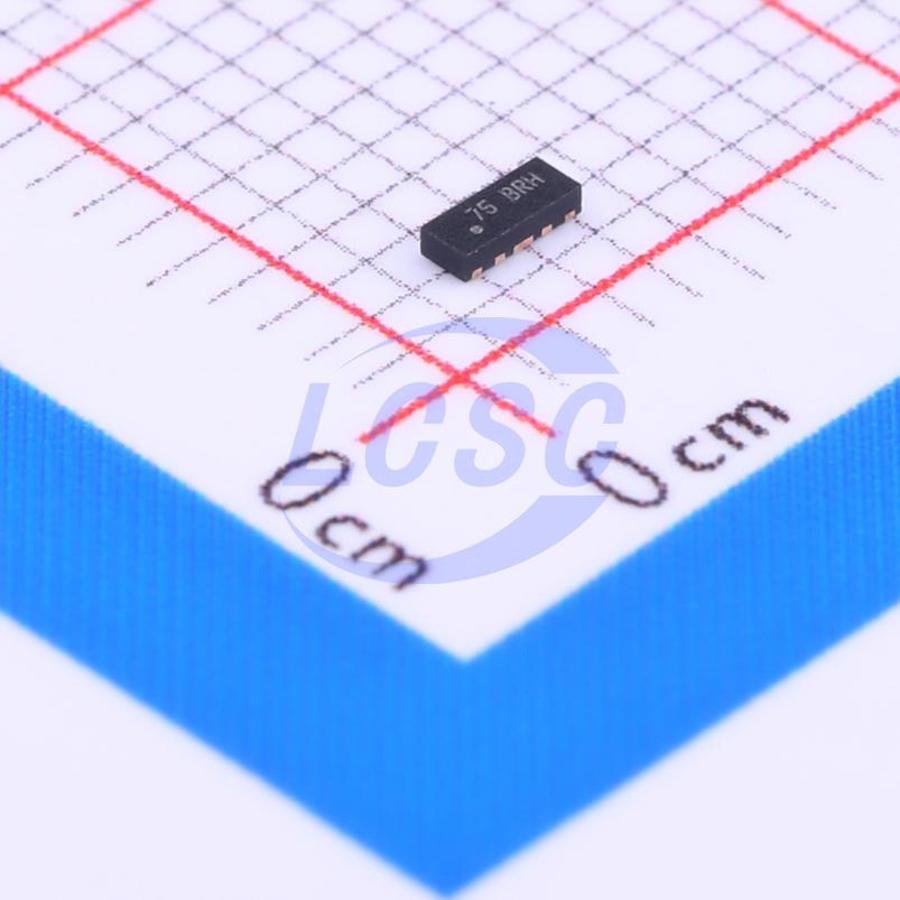

TPD4E05U06QDQARQ1
14VC Clamp 2.5A@8/20us Ipp ESD DIODE USON-10(1x2.5)
ESD DIODE 5.5VWM 14VC USON-10(1x2.5)
- Manufacturer
- TI
- Manufacturer part #
- TPD4E05U06QDQARQ1
- Store part #
- C81353
- Package / case
- USON-10(1x2.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,490 in stock
#C81353
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.72 | ₹84.72 |
| 10+ | ₹69.26 | ₹692.60 |
| 30+ | ₹61.41 | ₹1,842.30 |
| 100+ | ₹53.79 | ₹5,379.00 |
| 500+ | ₹49.23 | ₹24,615.00 |
| 1,000+ | ₹39.86 | ₹39,860.00 |
1 × ₹84.72
₹84.72
excl. GST
₹99.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD4E05U06QDQARQ1
₹84.72 for 1 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -40℃~+125℃@(Ta)
- Peak Pulse Current (Ipp)
- 2.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 40W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6.4V
- type
- ESD
- Reverse Leakage Current (Ir)
- 10nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.032 g
Overview
The TPD4E05U06-Q1 is a unidirectional Transient Voltage Suppressor (TVS) Electrostatic Discharge (ESD) protection diode array with ultra-low capacitance. It is rated to dissipate ESD strikes above the maximum level specified in the IEC61000 - 4 - 2 level 4 international standard. Its ultra-low loading capacitance makes it ideal for protecting any highspeed signal pins.
Applications
- HDMI 1.4
- USB 3.0
- LVDS Interfaces
- DisplayPort eSata Interfaces
Key features
- AEC-Q101 Qualified
- Device HBM Classification Level H3B
- Device CDM Classification Level C5
- Device Temperature Range: -40°C to 125°C
- IEC 61000-4-2 Level 4 ESD Protection (See the Handling Ratings Table)
- ±12kV Contact Discharge
- ±15kV Air Gap Discharge
- IEC 61000-4-4 EFT Protection – 80A (5/50 ns)
- IEC 61000-4-5 Surge Protection – 2.5A (8/20 µs)
- I/O Capacitance 0.5 pF (Typ)
- DC Breakdown Voltage 6.4 V (Min)
- Ultra Low Leakage Current 10 nA (Max)
- Low ESD Clamping Voltage
- Easy Flow-Through Routing Packages
