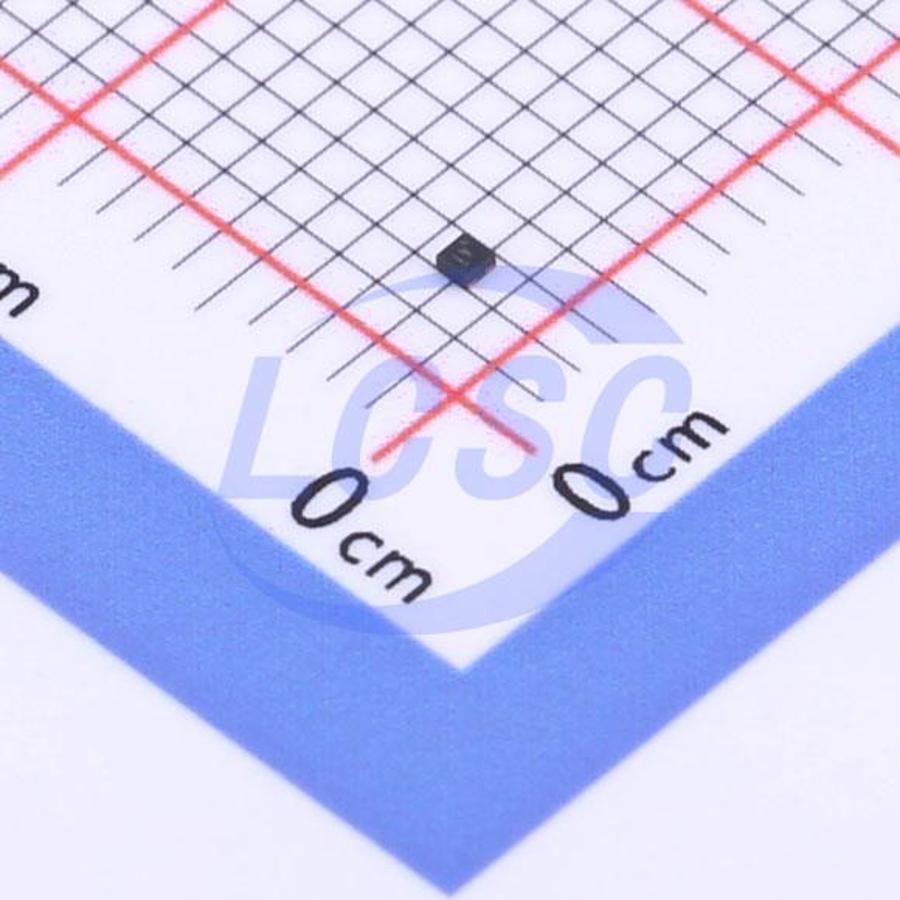

TPD4E101DPWR
13VC Clamp 3A@8/20us Ipp ESD DIODE X2-SON-4-EP(0.8x0.8)
ESD DIODE 5.5VWM 13VC X2-SON-4-EP(0.8x0.8)
- Manufacturer
- TI
- Manufacturer part #
- TPD4E101DPWR
- Store part #
- C1975353
- Package / case
- X2-SON-4-EP(0.8x0.8)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
56 in stock
#C1975353
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.98 | ₹54.98 |
| 10+ | ₹43.90 | ₹439.00 |
| 30+ | ₹39.12 | ₹1,173.60 |
| 100+ | ₹33.25 | ₹3,325.00 |
| 500+ | ₹30.64 | ₹15,320.00 |
| 1,000+ | ₹27.82 | ₹27,820.00 |
1 × ₹54.98
₹54.98
excl. GST
₹64.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD4E101DPWR
₹54.98 for 1 + GST
Specifications
- Clamping Voltage
- 13V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.009 g
Overview
The TPD4E101 is a four-channel ESD protection device in an ultra-small package. The larger pin pitch helps save the manufacturing cost of the printed circuit board (PCB). This device provides up to 15kV contact discharge protection compliant with IEC61000-4-2. This device features an ESD clamping circuit, and the back-to-back diodes of this circuit support single-pole/bidirectional signals. The low line capacitance makes this device suitable for a wide range of applications supporting data rates up to 700Mbps. Typical application areas in portable applications include audio lines (microphones, headphones, and speakerphones), SD interfaces, SIM interfaces, auxiliary keyboards, or other buttons.
Applications
- Mobile phones
- E-books
- Portable media players
- Digital video cameras
- Tablet PCs
- Set-top boxes
Key features
- System-level ESD protection for low-voltage I/O interfaces, IEC61000-4-2 Level 4
- ±15kV (air discharge)
- ±15kV (contact discharge)
- I/O capacitance < 5pF
- Ultra-low leakage current
- Ultra-low clamping voltage
- Industrial temperature range: -40°C to 125°C
- Space-saving μQFN package
