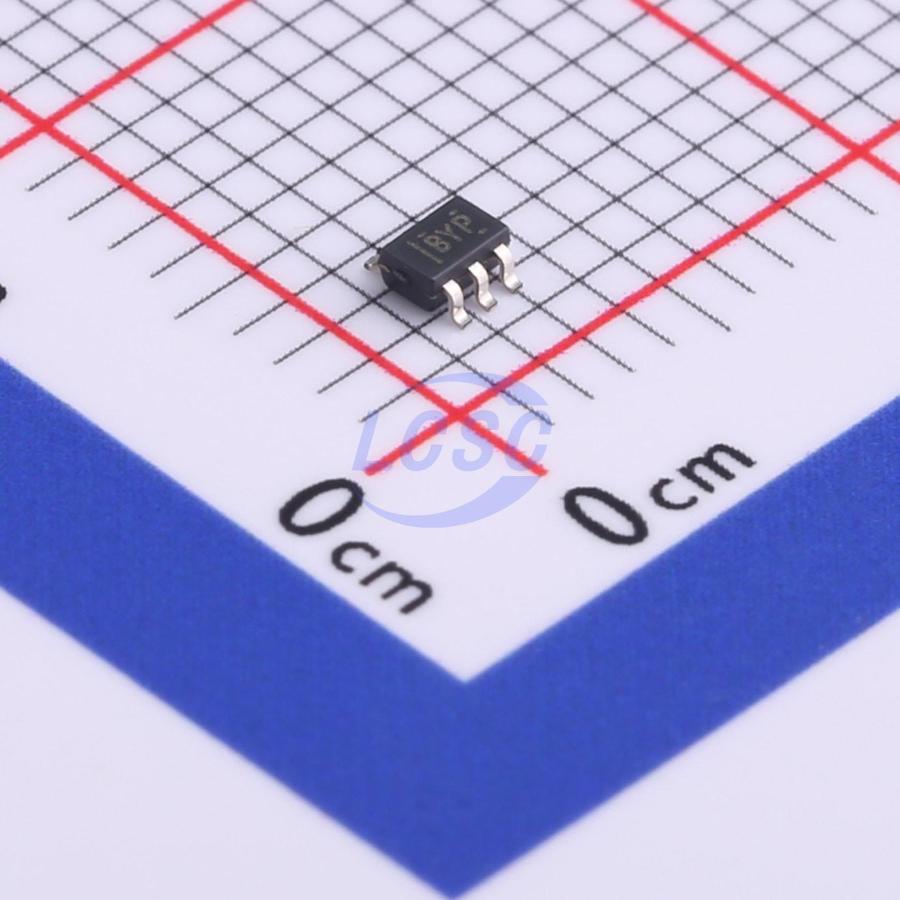

TPD4E1B06DCKR
14.5VC Clamp 3A@8/20us Ipp ESD DIODE SC-70-6
- Manufacturer
- TI
- Manufacturer part #
- TPD4E1B06DCKR
- Store part #
- C840093
- Package / case
- SC-70-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,319 in stock
#C840093
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.52 | ₹58.52 |
| 10+ | ₹47.20 | ₹472.00 |
| 30+ | ₹42.20 | ₹1,266.00 |
| 100+ | ₹36.12 | ₹3,612.00 |
| 500+ | ₹30.02 | ₹15,010.00 |
| 1,000+ | ₹28.29 | ₹28,290.00 |
1 × ₹58.52
₹58.52
excl. GST
₹69.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD4E1B06DCKR
₹58.52 for 1 + GST
Specifications
- Clamping Voltage
- 14.5V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 45W@8/20us
- Voltage - Breakdown
- 9.5V
- Number of Channels
- Four channels
- type
- ESD
- Reverse Leakage Current (Ir)
- 500pA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.9 g
Overview
The TPD4E1B06 is a 4-channel bidirectional Transient Voltage Suppressor (TVS) diode array. This device features an ultra-low leakage current (0.5 nA) for precise analog measurements. The ±12 kV contact and ±15 kV air-gap ESD protection exceeds the requirements of IEC 61000-4-2 Level 4. The 0.7 pF line capacitance of the TPD4E1B06 makes it well-suited for precision analog, USB 2.0, Ethernet, SATA, Low-Voltage Differential Signaling (LVDS), and 1394 interfaces.
Applications
- Blood glucose meters
- Tablets
- GPS
- Portable media players
- TVs
- Set-top boxes
Key features
- Ultra-low leakage current of 0.5 nA (maximum)
- Transient protection for 4 I/O lines:
- IEC 61000-4-2 contact discharge ±12 kV
- IEC 61000-4-2 air-gap discharge ±15 kV
- IEC 61000-4-5 surge 3.0 A (8/20 μs)
- I/O capacitance of 0.7 pF (typical)
- Bidirectional ESD protection diode array
- Low ESD clamping voltage
- Industrial temperature range: -40°C to 125°C
- Small DRL and DCK packages for easy routing
