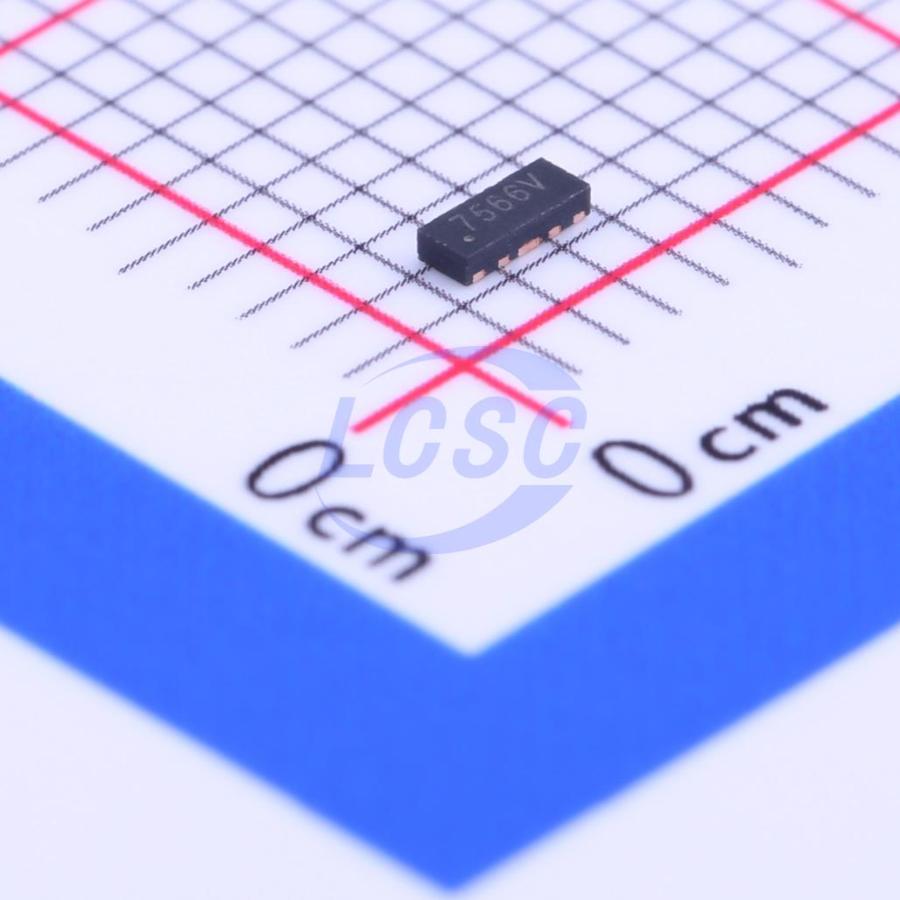

TPD4EUSB30DQAR
8VC Clamp 5A@8/20us Ipp ESD DIODE USON-10(1x2.5)
ESD DIODE 5.5VWM 8VC USON-10(1x2.5)
- Manufacturer
- TI
- Manufacturer part #
- TPD4EUSB30DQAR
- Store part #
- C90627
- Package / case
- USON-10(1x2.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25,442 in stock
#C90627
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.15 | ₹50.15 |
| 10+ | ₹38.87 | ₹388.70 |
| 30+ | ₹33.87 | ₹1,016.10 |
| 100+ | ₹27.80 | ₹2,780.00 |
| 500+ | ₹25.19 | ₹12,595.00 |
| 1,000+ | ₹23.46 | ₹23,460.00 |
1 × ₹50.15
₹50.15
excl. GST
₹59.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD4EUSB30DQAR
₹50.15 for 1 + GST
Specifications
- Clamping Voltage
- 8V
- Operating Temperature
- -40℃~+85℃@(Ta)
- Peak Pulse Current (Ipp)
- 1A
- Peak Pulse Power Dissipation (Ppp)
- 45W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 7V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
Overview
The TPD2EUSB30, TPD2EUSB30A, and TPD4EUSB30 are 2 and 4 channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode arrays. The TPDxEUSB30/A devices are rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Contact). These devices also offer 5 A (8/20 μs) peak pulse current ratings per IEC 61000-4-5 (Surge) specification. The TPD2EUSB30A offers low 4.5-V DC break-down voltage. The low capacitance, low break-down voltage, and low dynamic resistance make the TPD2EUSB30A a superior protection device for highspeed differential IOs. The TPD2EUSB30 and TPD2EUSB30A are offered in space saving DRT (mm × 1 mm) package. The TPD4EUSB30 is offered in space saving DQA (2.5 mm × 1.0 mm) package.
Applications
- Notebooks
- Set-Top Boxes
- DVD Players
- Media Players
- Portable Computers
Key features
- Supports USB 3.0 Data Rates (5 Gbps)
- IEC 61000-4-2 ESD Protection (Level 4 Contact)
- IEC 61000-4-5 Surge Protection
- 5 A (8/20 μs)
- Low Capacitance
- DRT: 0.7 pF (Typ)
- DQA: 0.8 pF (Typ)
- Dynamic Resistance: 0.6 Ω (Typ)
- Space-Saving DRT, DQA Packages
- Flow-Through Pin Mapping
