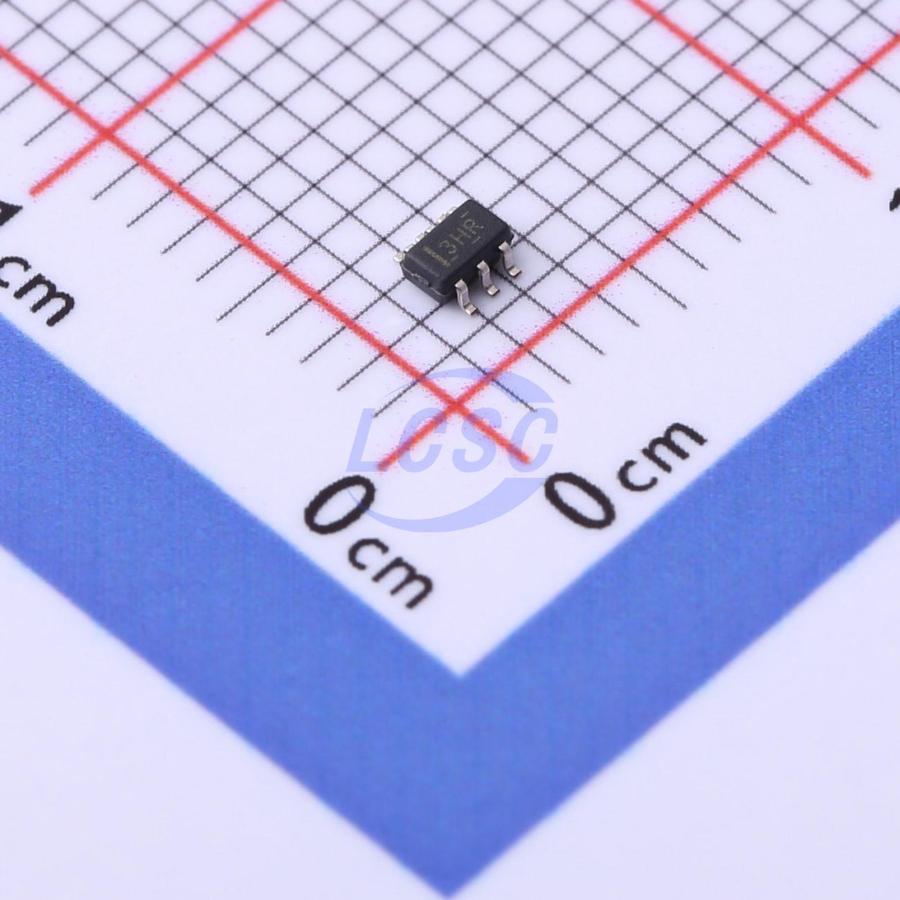

TPD4S009DCKR
2.5A@8/20us Ipp ESD DIODE SC-70-6
4-Channel ESD Solution for High-Speed Differential Interface
- Manufacturer
- TI
- Manufacturer part #
- TPD4S009DCKR
- Store part #
- C2871139
- Package / case
- SC-70-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
69 in stock
#C2871139
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.74 | ₹69.74 |
| 10+ | ₹56.13 | ₹561.30 |
| 30+ | ₹50.31 | ₹1,509.30 |
| 100+ | ₹39.29 | ₹3,929.00 |
| 500+ | ₹36.06 | ₹18,030.00 |
| 1,000+ | ₹34.12 | ₹34,120.00 |
1 × ₹69.74
₹69.74
excl. GST
₹82.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD4S009DCKR
₹69.74 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Peak Pulse Current (Ipp)
- 2.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 25W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
The TPD4S009 and TPD4S010 are four-channel TVS diode arrays for electrostatic discharge (ESD) protection. TPD4S009 and TPD4S010 are rated to dissipate contact ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4), with ±8-kV contact discharge ESD protection. The low 0.8 pF capacitance of these devices, coupled with the excellent matching between differential signal pairs (0.05-pF line-line capacitance for the TPD4S009DRY) enables this device to operate at high-speed differential data rates (3-dB bandwidth >4 GHz).
Applications
- End Equipment
- Set-Top Boxes
- DTVs
- Laptop/Desktop
- Electronic Point of Sale (EPOS)
- Interfaces
- USB 2.0
- HDMI 1.4
- LVDS
- SATA
- Ethernet
- FireWire
Key features
- IEC 61000-4-2 Level 4 ESD Protection – ±8-kV Contact Discharge
- IEC 61000-4-5 Surge Protection – 2.5A (8/20μs)
- I/O Capacitance: 0.8 pF (Typical)
- Low Leakage Current: 10 nA (Typical)
- Supports High-Speed Differential Data Rates (3-dB Bandwidth >4 GHz)
- Ultra-low Matching Capacitance Between Differential Signal Pairs
- Feature for the TPD4S009
- Industrial Temperature Range: -40°C to 85°C
- Easy Straight through Routing, Space-Saving Package Options
