TECH PUBLICDatasheet (PDF)

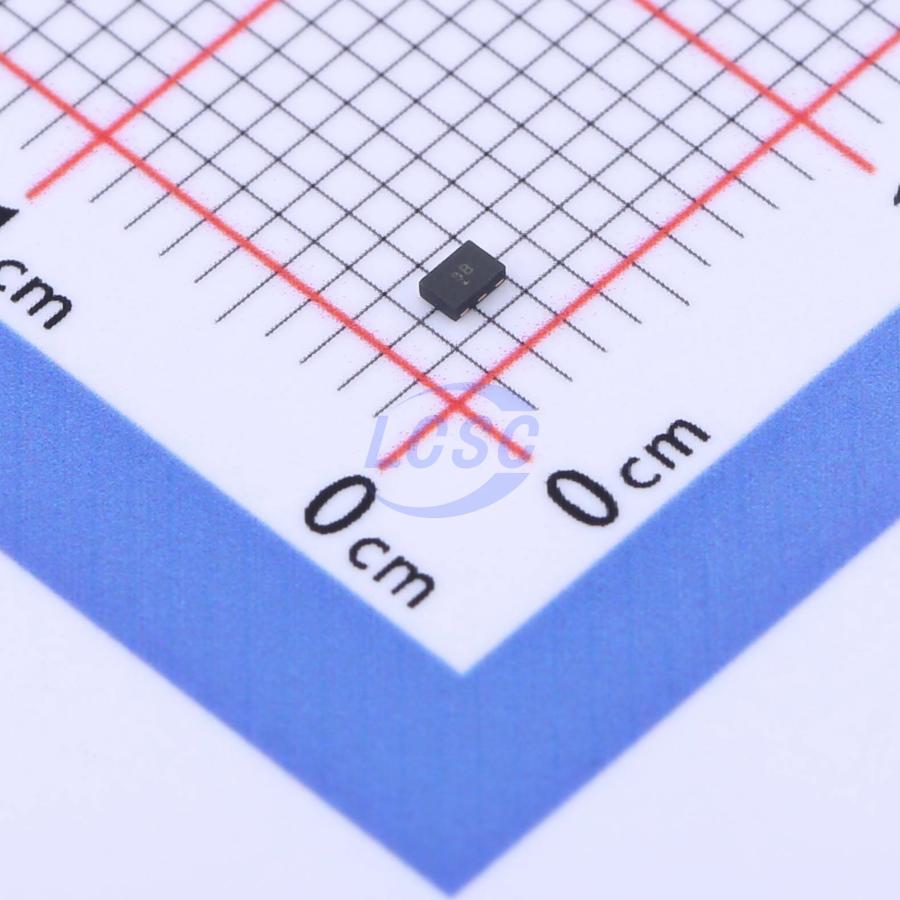

TPD4S012DRYR-TP
10VC Clamp 3A@8/20us Ipp DFN1510-6
DFN1510-6RoHSActive
15VWM 5.5VWM 10VC DFN1510-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD4S012DRYR-TP
- Store part #
- C2959843
- Package / case
- DFN1510-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,155 in stock
#C2959843
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.61 | ₹93.05 |
| 50+ | ₹16.33 | ₹816.50 |
| 150+ | ₹15.35 | ₹2,302.50 |
| 500+ | ₹14.12 | ₹7,060.00 |
| 2,500+ | ₹13.15 | ₹32,875.00 |
| 5,000+ | ₹12.82 | ₹64,100.00 |
5 × ₹18.61
₹93.05
excl. GST
₹109.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TPD4S012DRYR-TP
₹93.05 for 5 + GST
Specifications
- Clamping Voltage
- 10V
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Voltage - Breakdown
- 24V;9V
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V;5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.09 g
Overview
Applications
- Cellular Phones
- Digital Cameras
- Global Positioning Systems (GPS)
- Portable Digital Assistants (PDA)
- Portable Computers
Key features
- Line Capacitancee: 0.7pF(Max)
- Ultra lowleakage: nA level
- Supports Data Rates in Excess of 480Mbps
- Complies with following standards:
- IEC 61000 - 4 - 2(ESD) immunity test Air discharge: ±15kV Contact discharge: ±15kV
- IEC 61000 - 4 - 4(EFT) 40A(5/50ns)
- IEC 61000 - 4 - 5 (Lightning) 4A (8/20 μs)
