TECH PUBLICDatasheet (PDF)

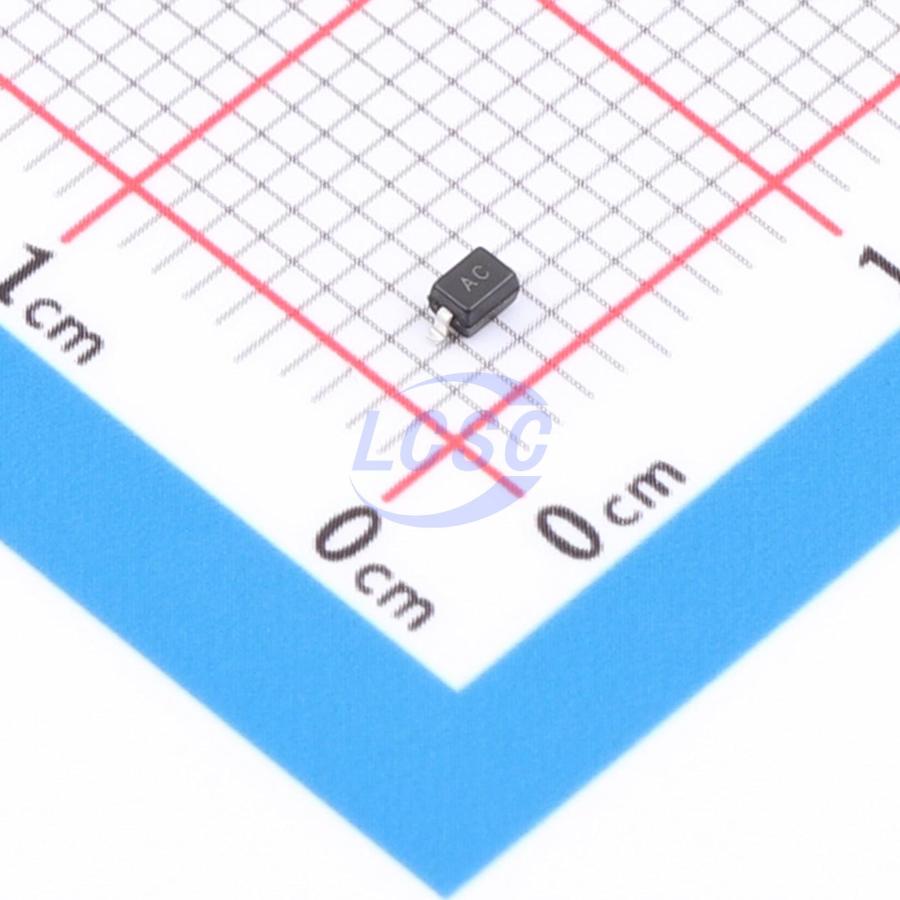

TPD5V0FA1B2WS
19V 18A@8/20us 350W@8/20us 6V Bidirectional 5V SOD-323 TVS Diodes
SOD-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD5V0FA1B2WS
- Store part #
- C54195053
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C54195053
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.37 | ₹1,311.00 |
| 3,000+ | ₹3.85 | ₹11,550.00 |
| 6,000+ | ₹3.44 | ₹20,640.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD5V0FA1B2WS
₹64.20 for 10 + GST
Specifications
- Clamping Voltage
- 19V
- Operating Temperature
- -40℃~+85℃
- Peak Pulse Current (Ipp)
- 18A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- 1
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.053 g
Overview
Applications
- USB ports
- Smartphones
- Wireless systems
- Ethernet 10/100/1000 Base T
Key features
- 350W peak pulse power (8/20μs)
- Ultra-low capacitance: 1.0 pF typical
- Ultra-low leakage: nanoamp level
- Low working voltage: 5V
- Low clamping voltage
- Protects one power or data line
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test — Air discharge: ±30kV, Contact discharge: ±30kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- RoHS compliant
- Package: SOD-323
- Lead finish: Matte tin
- Case material: "Green" molding compound
- UL flammability rating 94V-0
- Moisture sensitivity: Level 3 per J-STD-020
- Shipping quantity: 3000 pcs / 7-inch reel
